Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33M0400MSAJ

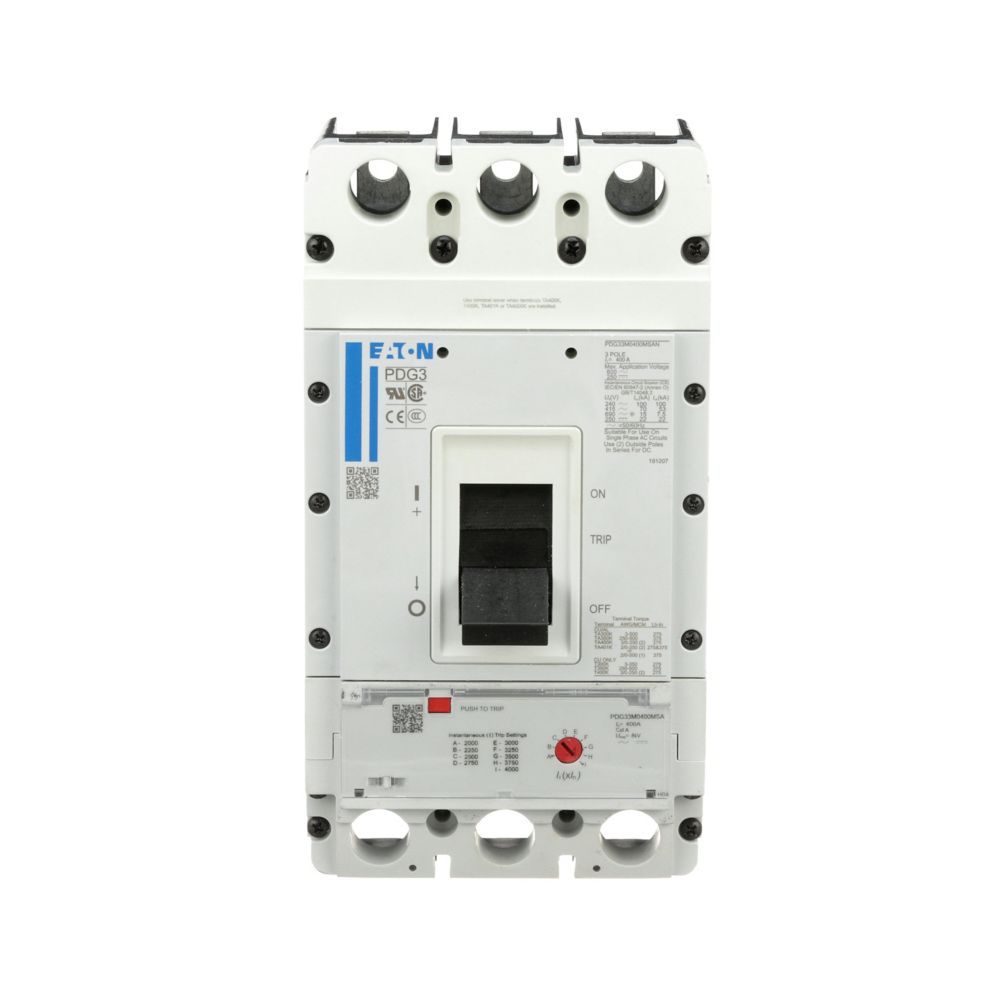

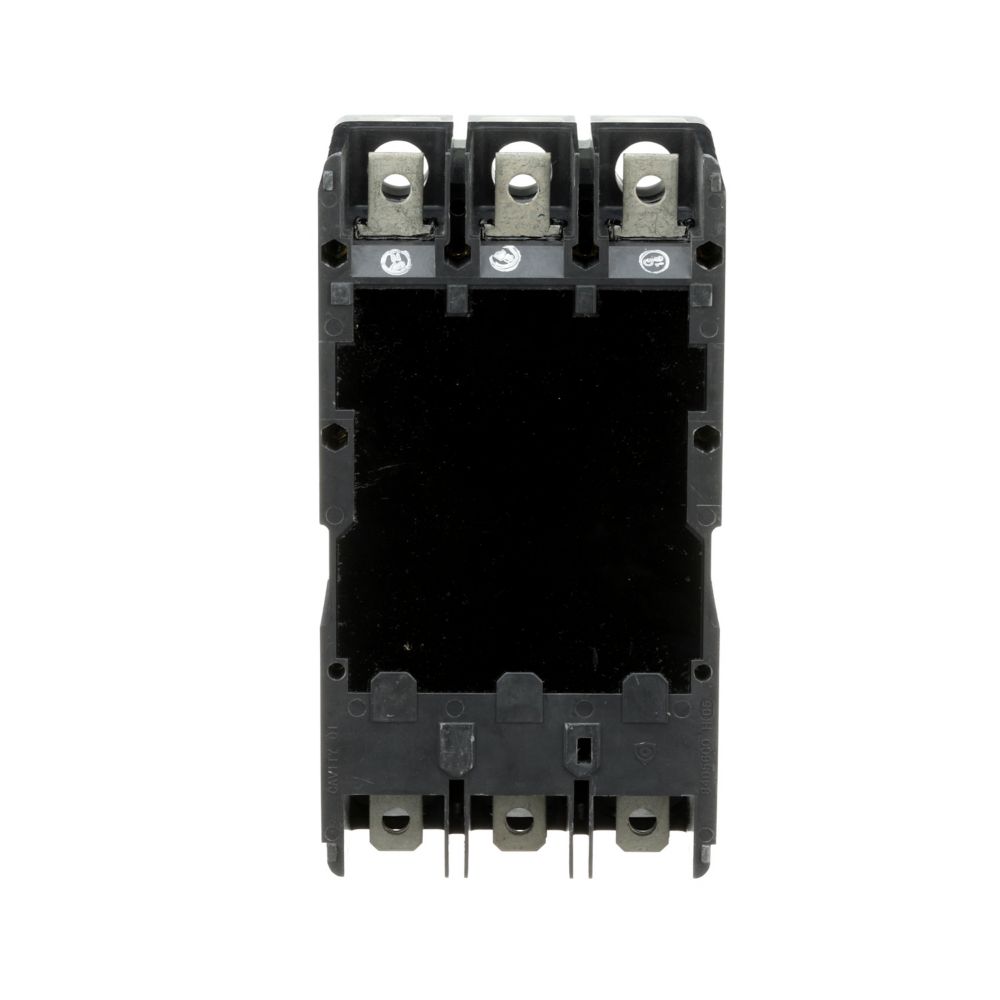

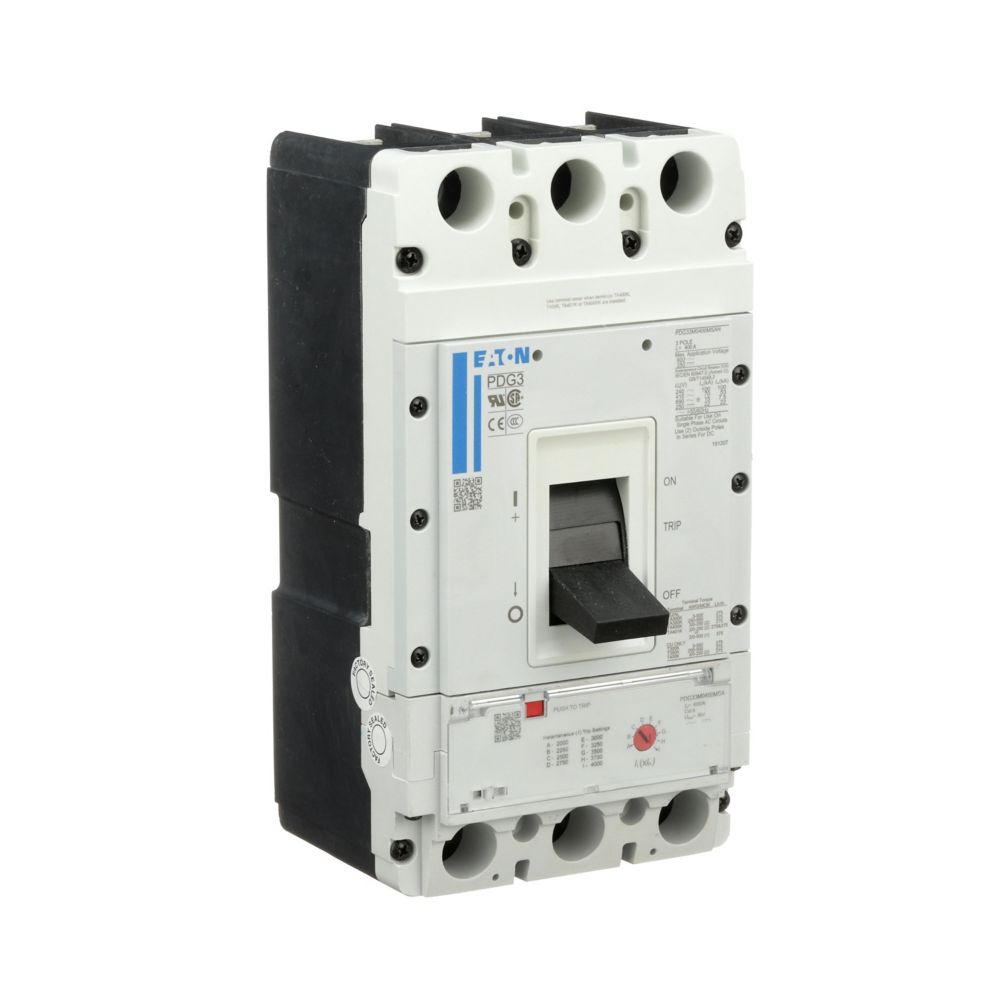

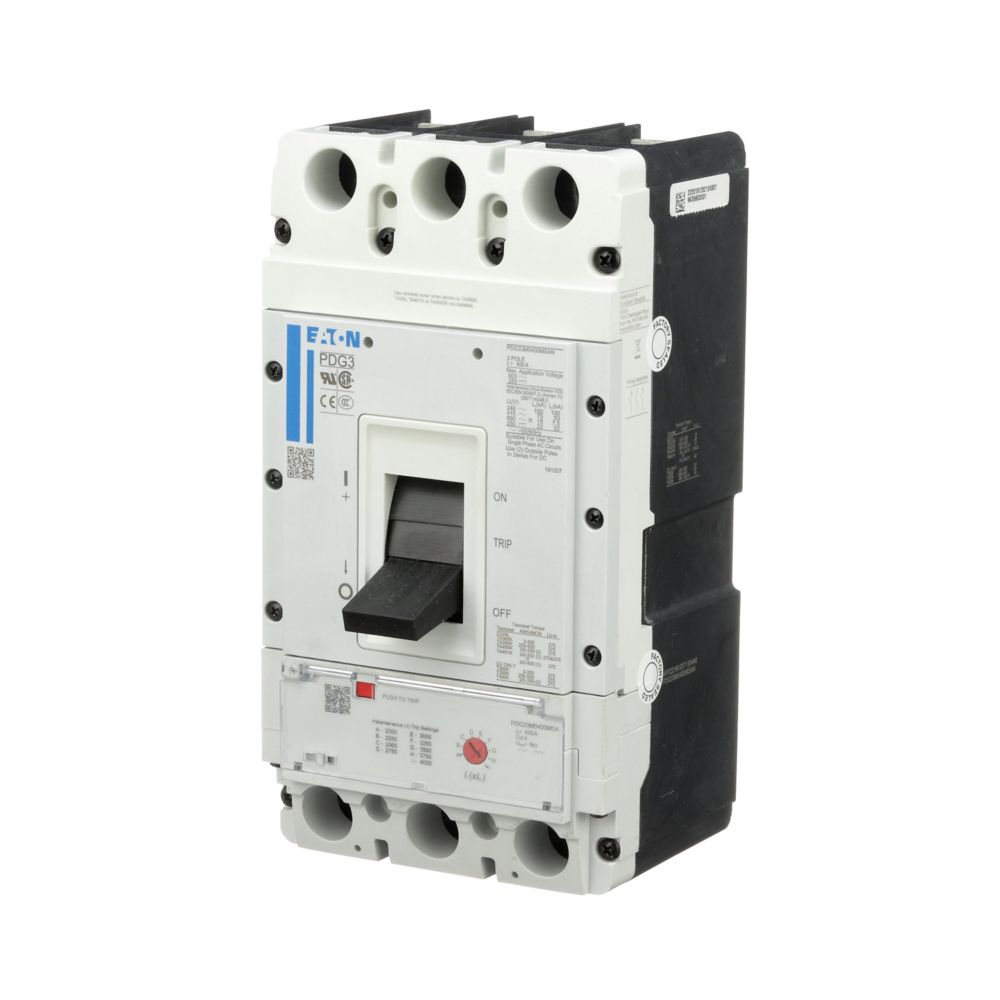

PDG33M0400MSAJ is a 3-pole, 400A, 600VAC molded case circuit breaker frame from Eaton's Power Defense series, designed for high-performance power distribution applications. This Eaton Power Defense circuit breaker frame features a 65kA interrupting rating at 480VAC, bolt-on mounting, and is rated for 600VAC. It is a frame-only unit, meaning no trip unit or terminals are included. The breaker is suitable for use in industrial and commercial power systems requiring robust protection and global compliance.
- Part Number: PDG33M0400MSAJ
- Manufacturer: Eaton
- Series: Power Defense PDG
- Frame: Frame 3
- Poles: 3
- Amperage: 400A
- Voltage: 600VAC
- Interrupting Rating: 65kAIC at 480VAC
- Mounting Type: Bolt-On
- Protection Type: Thermal Magnetic
- Standards: UL 489, CSA, CE, RoHS
- Application: Frame Only, No Terminals or Trip Unit Included
Specifications
- Part Number: PDG33M0400MSAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Motor circuit protector
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 3
- AIC rating : 65kA@480V
- Functions : Adjustable Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679380734
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
