Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

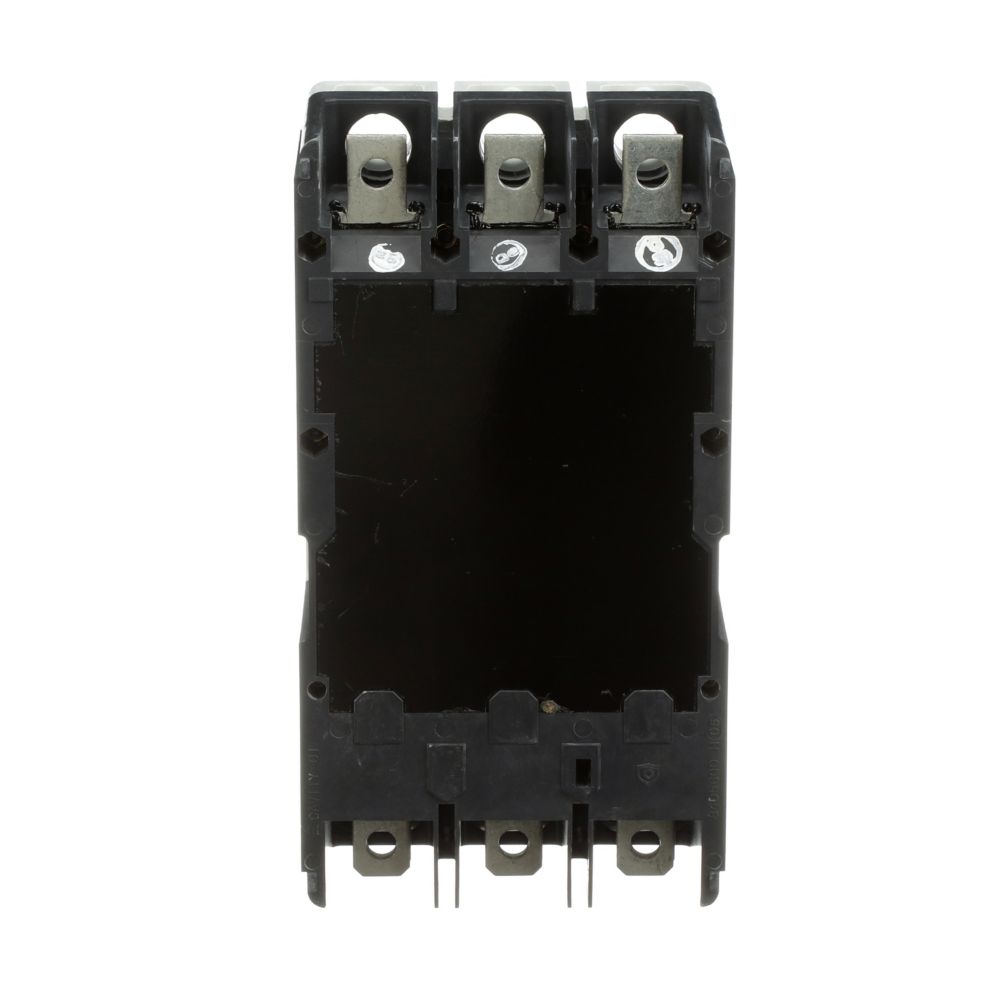

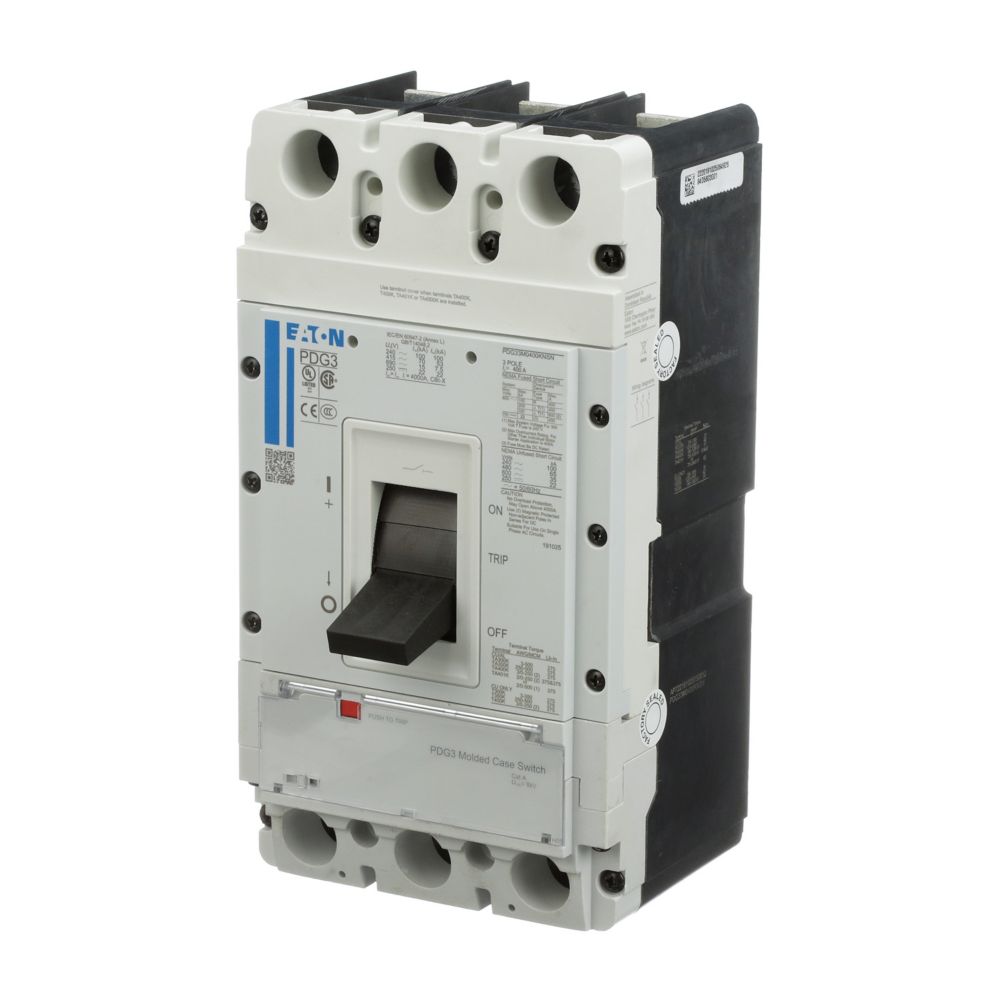

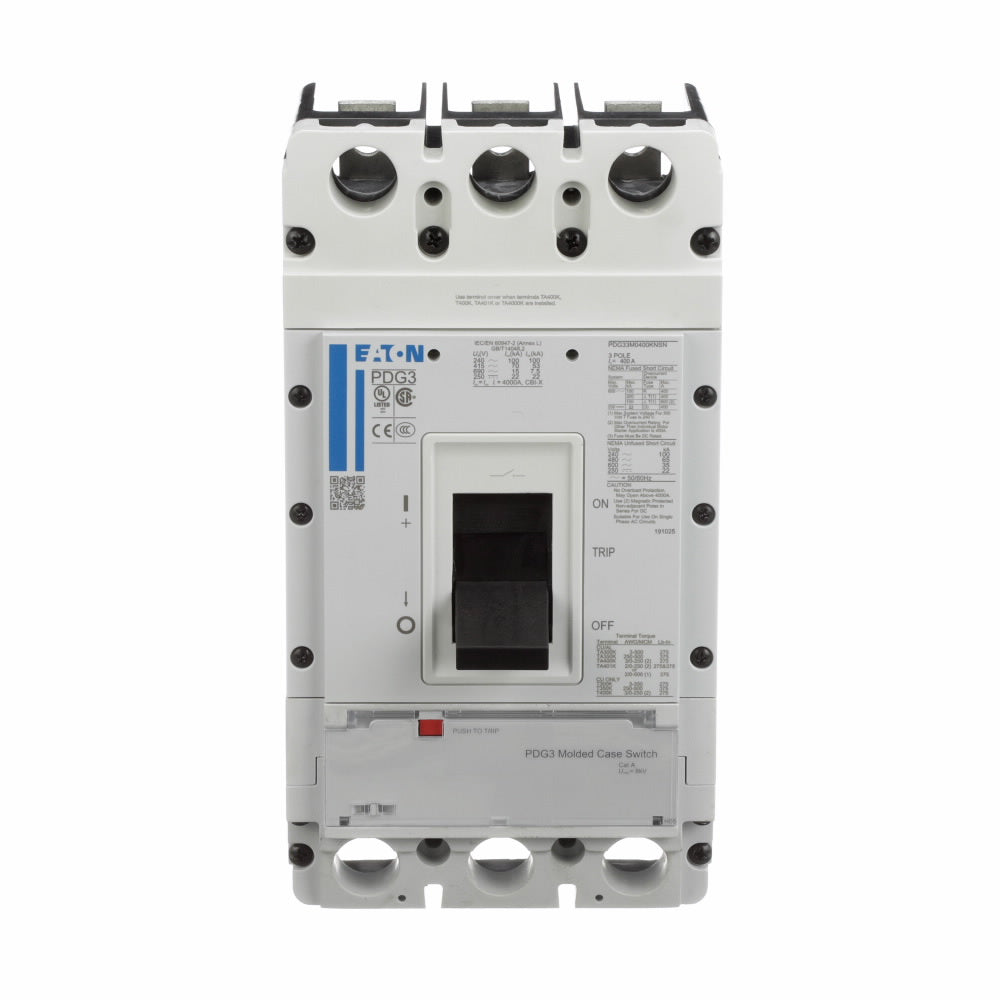

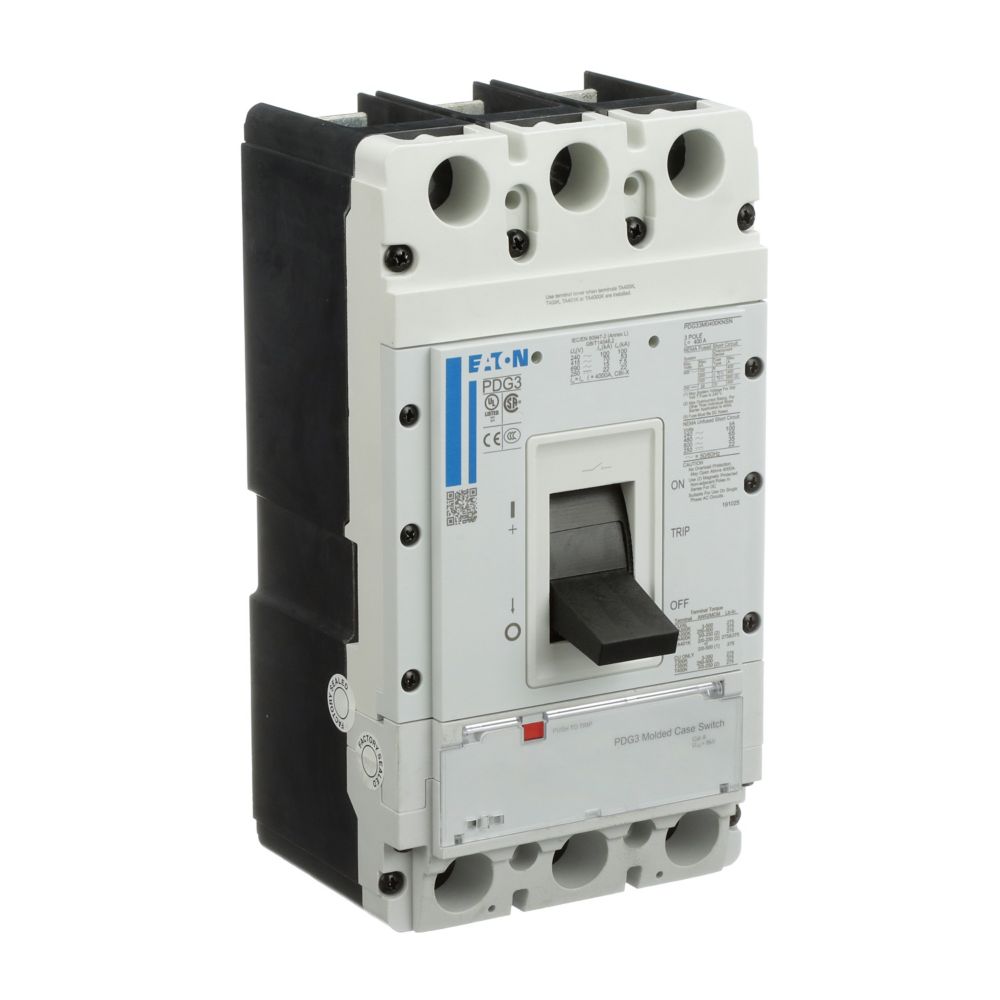

PDG33M0400KNSJ
PDG33M0400KNSJ is a 3-pole molded case circuit breaker from Eaton's Power Defense series with a 400 amp rating and 600VAC voltage capacity.This Eaton circuit breaker features a Frame 3 design with thermal magnetic protection, bolt-on mounting, and a 65kA interrupting rating at 480VAC. It is UL, CSA, and IEC certified, designed for panel mounting, and includes long-time and instantaneous trip functions for reliable circuit protection.
- Key Specifications
- Manufacturer: Eaton
- Part Number: PDG33M0400KNSJ
- Amperage: 400A
- Voltage: 600VAC
- Poles: 3
- Interrupting Rating: 65kA at 480VAC
- Mounting Type: Bolt-On
- Series/Frame: PDG Frame 3
- Trip Unit: Thermal Magnetic
- Certifications: UL, CSA, IEC
Specifications
- Part Number: PDG33M0400KNSJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- AIC rating : 65kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667950552
- GTIN : 00786679505526
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103 lb
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
