Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33M0250MSAJ

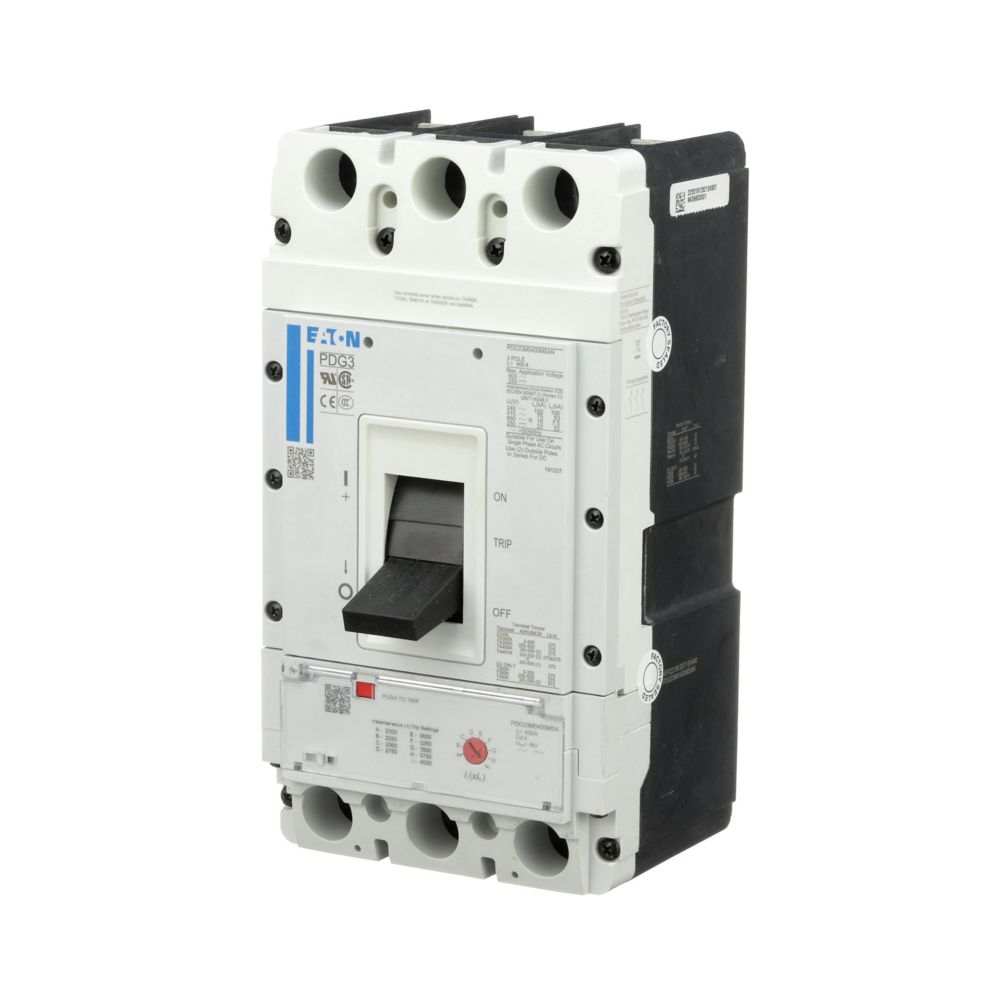

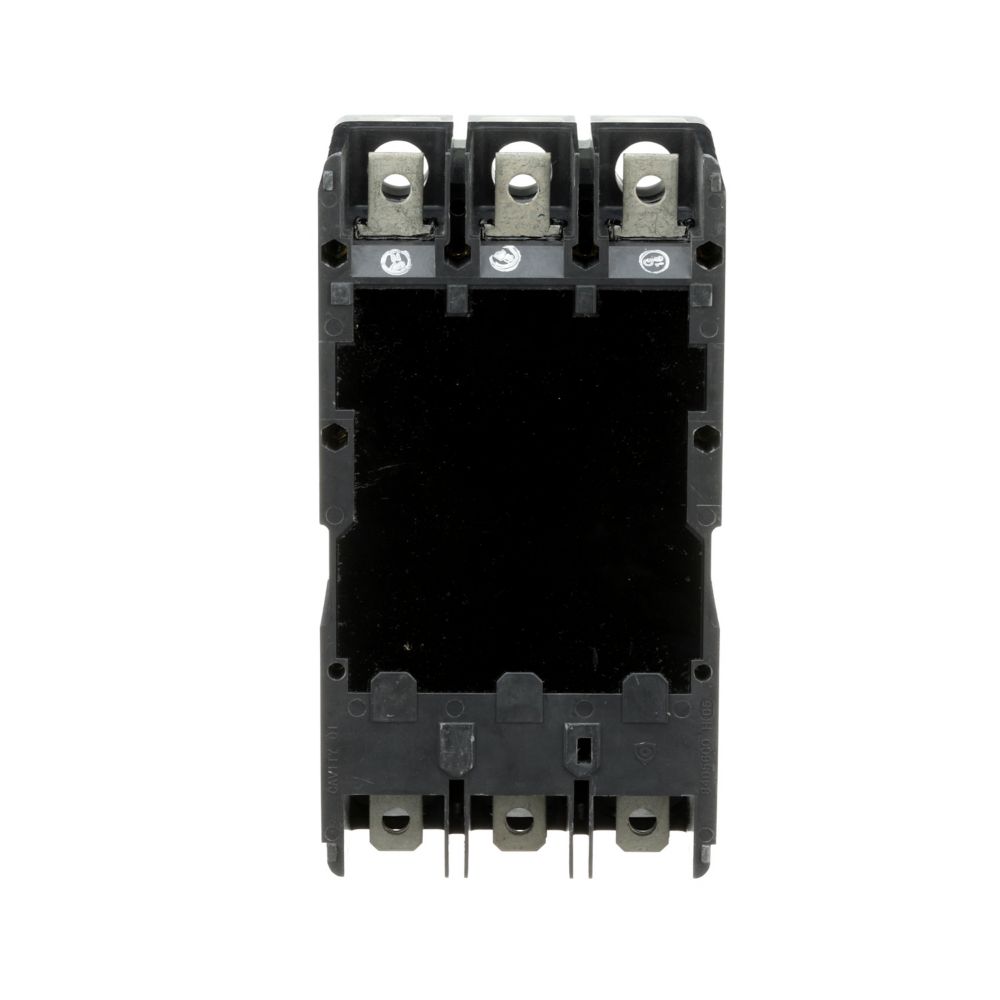

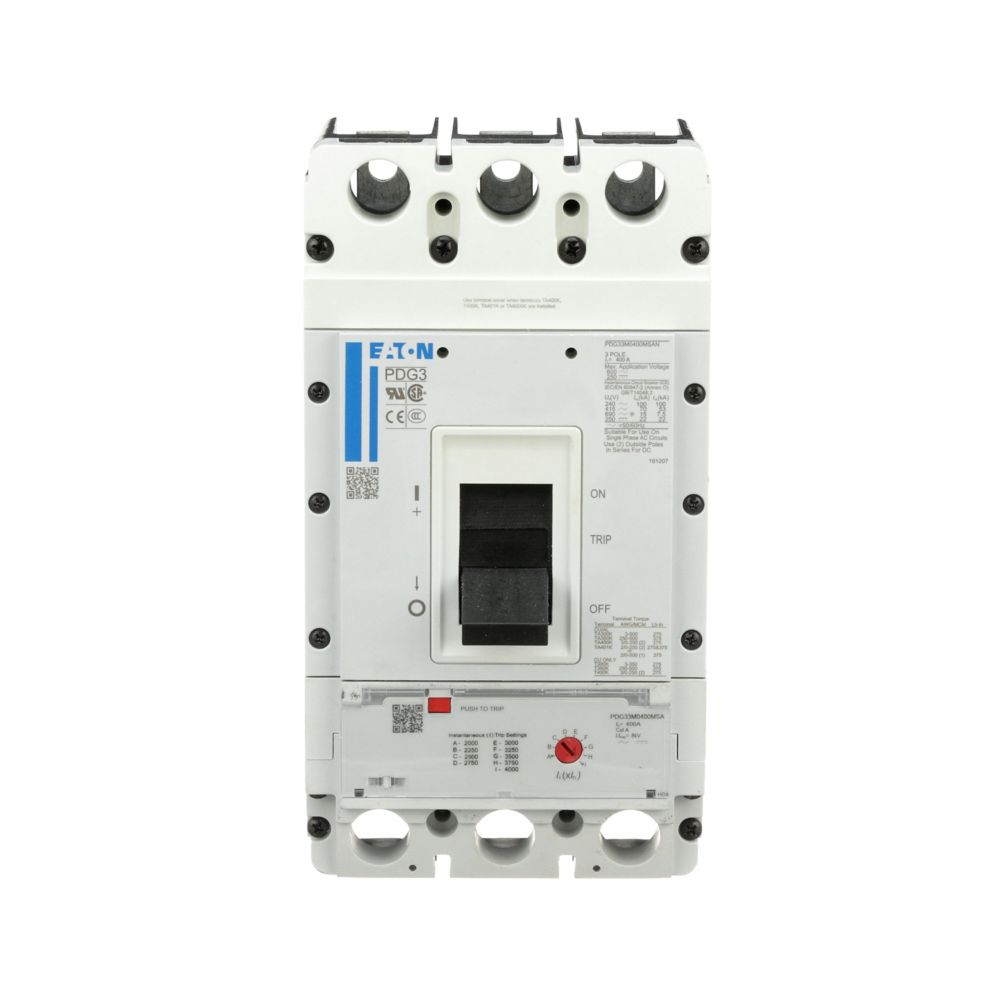

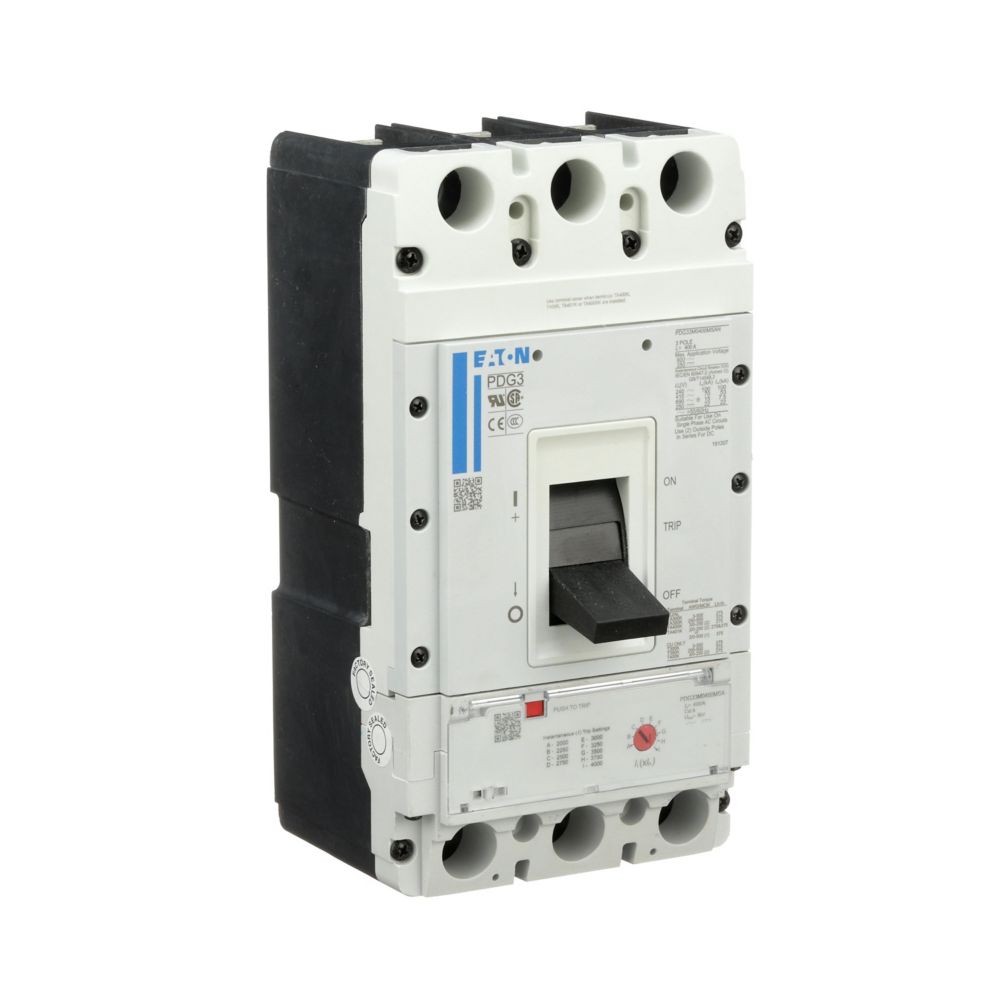

PDG33M0250MSAJ is a high-performance Eaton Power Defense molded case circuit breaker designed for robust motor circuit protection.
This 3-pole, thermal magnetic trip unit breaker offers a 250A current rating, 600V AC voltage rating, and a 65kA interrupting capacity at 480V. It is part of the PDG3 frame series and features chassis mounting for secure installation. The unit is globally certified to meet CCC, CSA, IEC, and UL standards, ensuring compliance and reliability in demanding applications.
-
Key Specifications
- Amperage: 250A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Chassis Mount
- Interrupt Rating: 65kAIC at 480V
- Series/Frame: Power Defense PDG3
- Trip Unit: Adjustable Thermal/Magnetic
- Certifications: CCC, CSA, IEC, UL
- Switch Off Technique: Thermomagnetic
- Lugs Included: Yes
- Standard Calibration
- Globally Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG33M0250MSAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Motor circuit protector
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 250
- AIC rating : 65kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679380307
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
