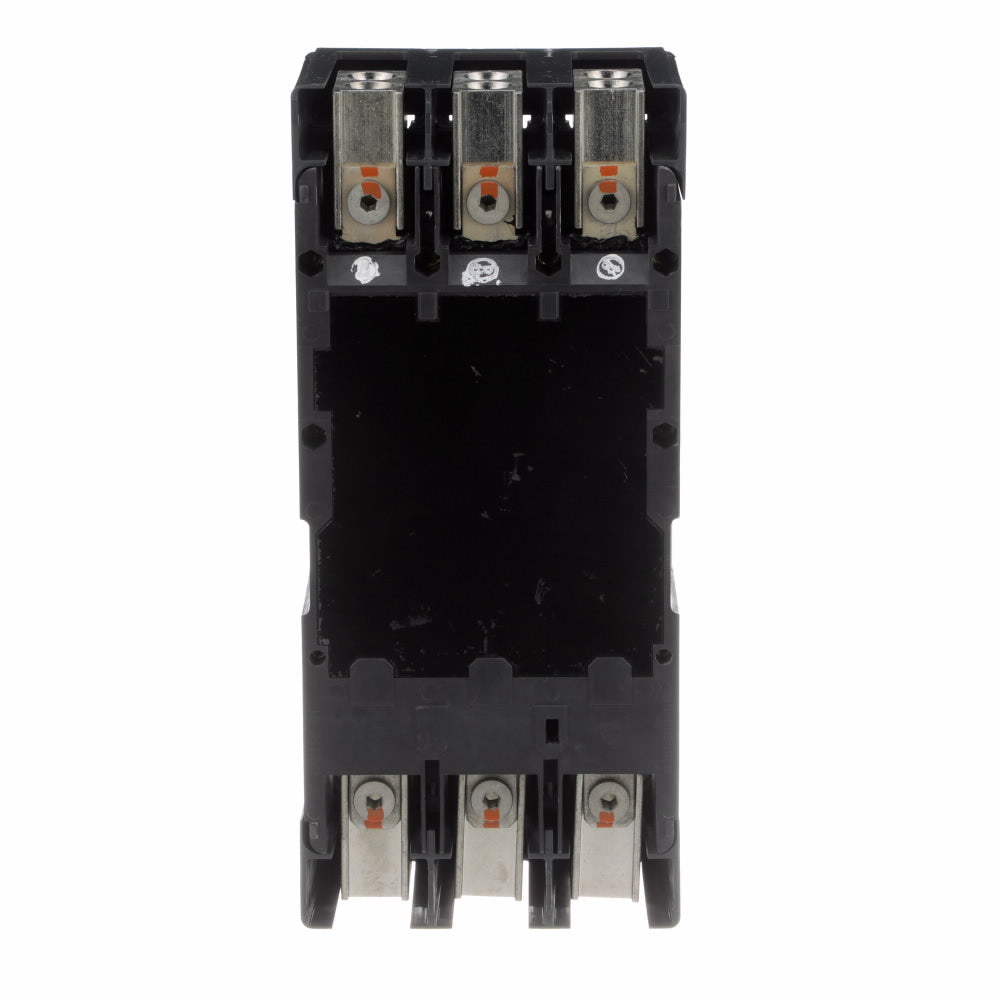

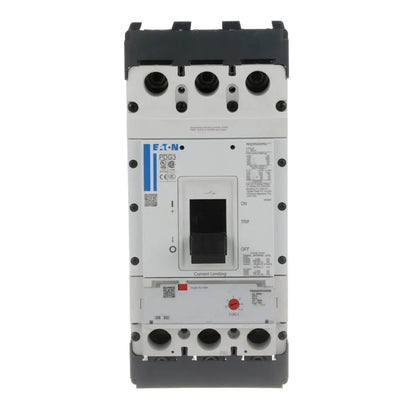

PDG33M0125TFAJ - Eaton 125A 600V 3 Pole Molded Case Circuit Breaker 65kA@480V Frame 3

PDG33M0125TFAJ

PDG33M0125TFAJ is a 3 pole, 125A, 600V molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial applications. This breaker features a globally rated frame 3, fixed-adjustable thermal-magnetic trip unit, and standard line/load terminals for easy installation. It is rated for 65kA interrupting capacity at 480V and is RoHS compliant for environmental safety. The PDG33M0125TFAJ is ideal for use in switchgear, panelboards, and distribution systems requiring robust circuit protection. Key Specifications

• Part Number: PDG33M0125TFAJ
• Manufacturer: Eaton
• Series: Power Defense
• Frame: 3
• Poles: 3
• Amperage Rating: 125A
• Voltage Rating: 600V AC
• Interrupt Rating: 65kA @ 480V
• Mounting Type: Fixed
• Terminal Type: Standard Line/Load
• Trip Unit: Fixed-Adjustable Thermal-Magnetic
• Certifications: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG33M0125TFAJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679536551
• GTIN : 00786679536551
• Country of Origin : Dominican Republic
• Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
• Weight : 12.5103
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
