Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33G0600TFAN

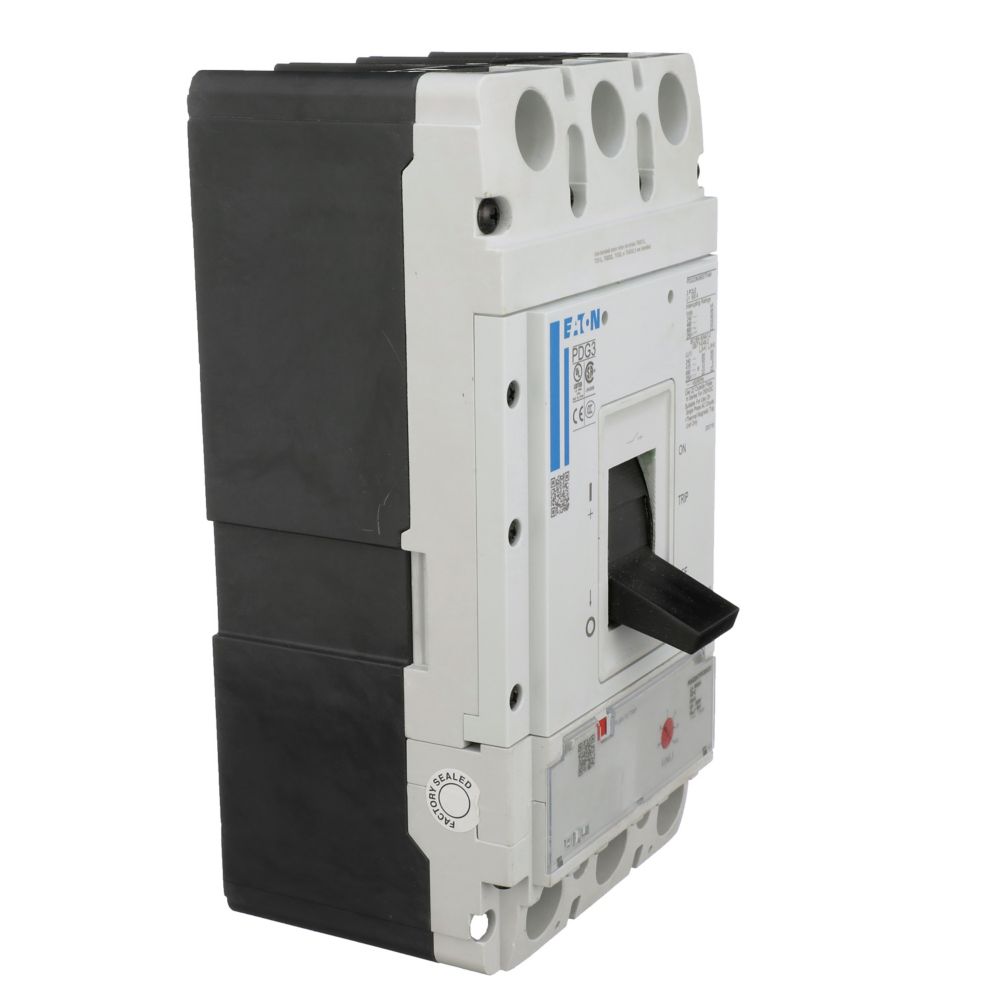

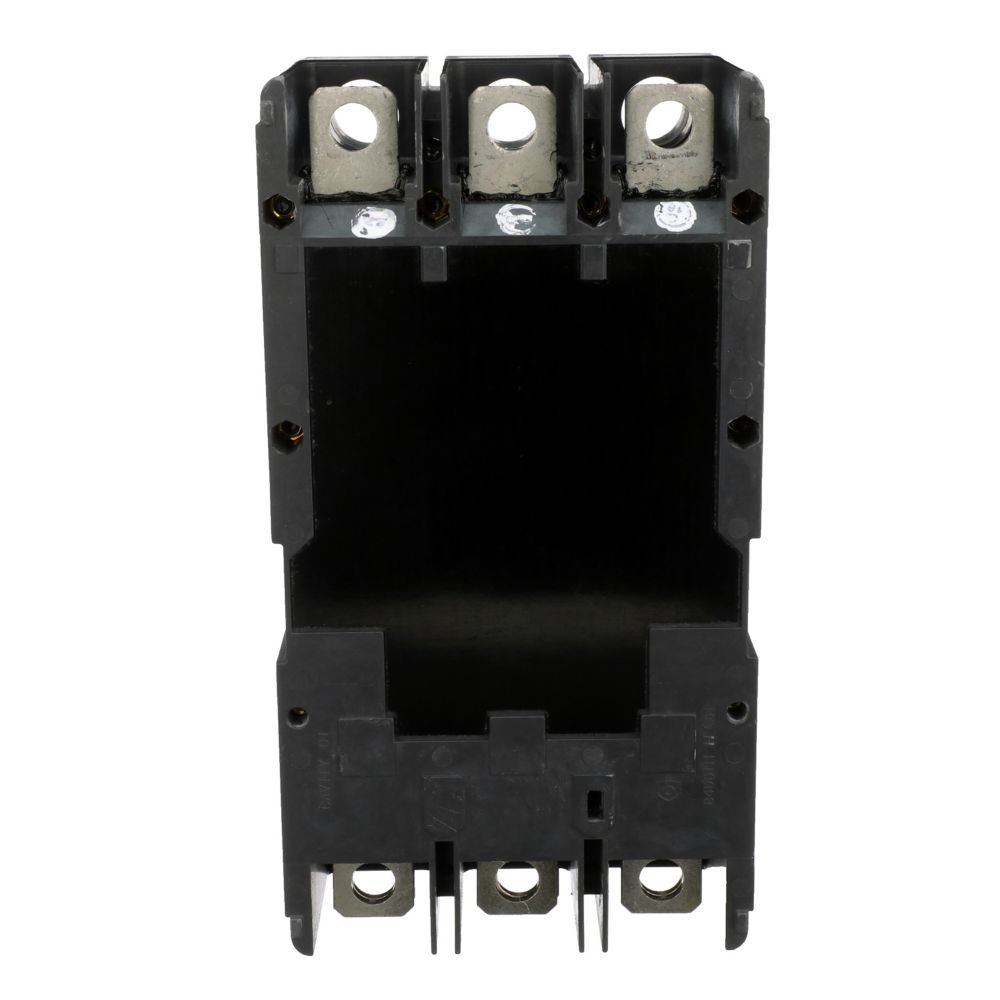

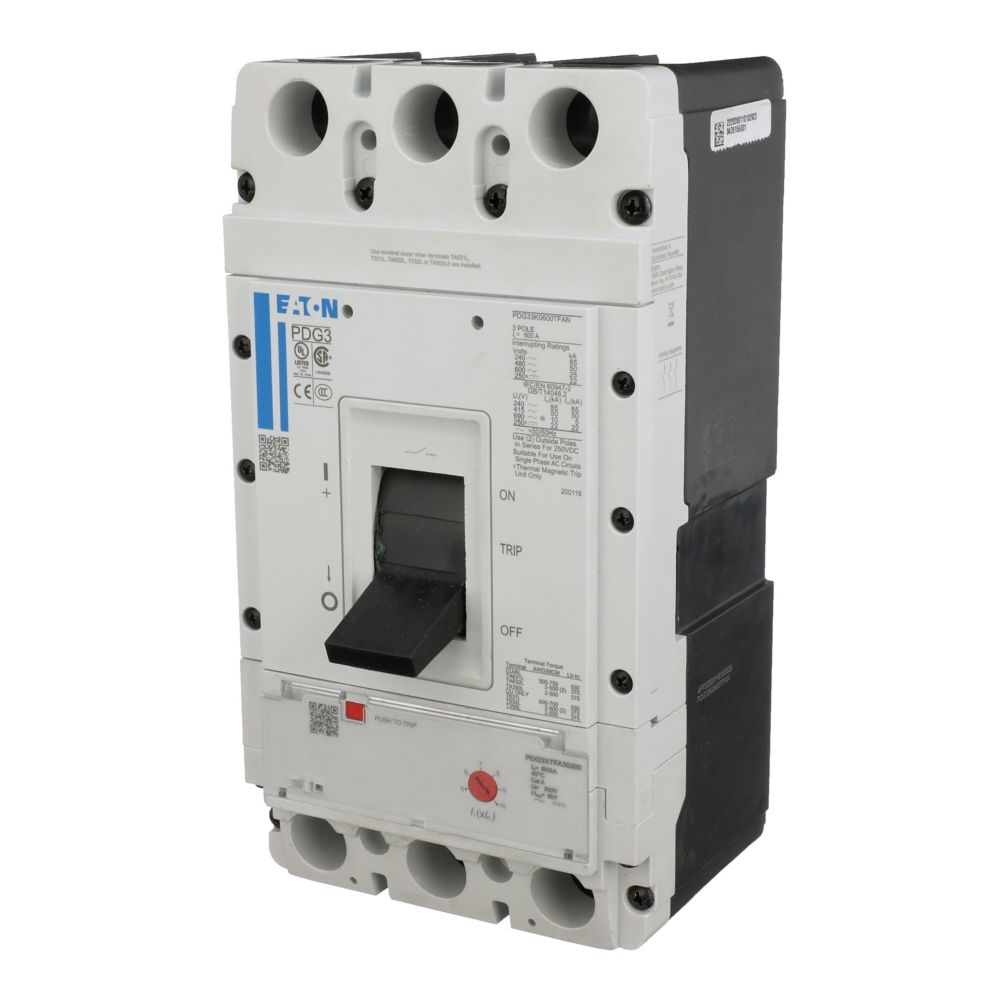

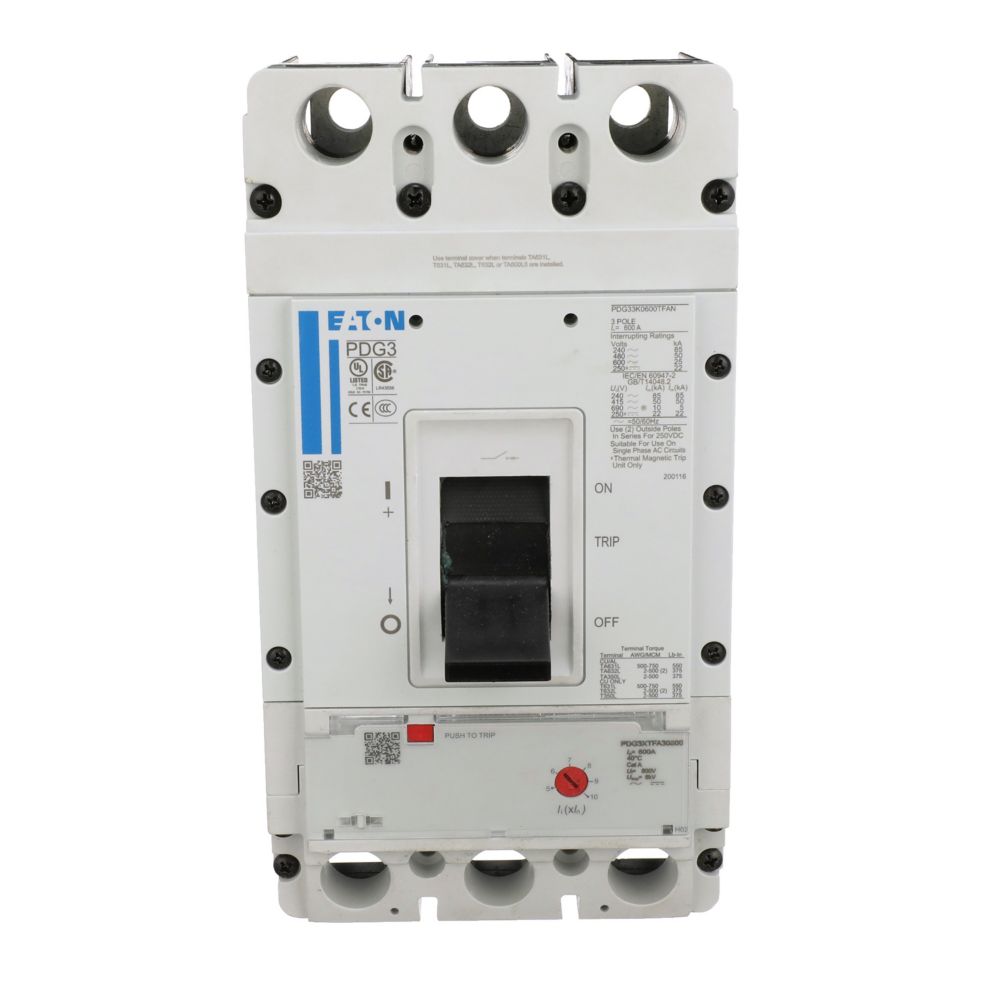

PDG33G0600TFAN is a 600 amp, 600 volt, three-pole Power Defense molded case circuit breaker from Eaton designed for reliable power distribution protection.This circuit breaker features a Frame 3 design with a 35kA interrupt rating at 480 volts AC, suitable for demanding industrial and commercial applications. It includes a thermal-magnetic fixed-adjustable trip unit and is globally rated with no terminals included. The breaker is UL 489 certified, ensuring compliance with safety standards.
- Amperage: 600 A
- Voltage Rating: 600 Vac max
- Poles: 3
- Interrupt Rating: 35kA at 480 Vac
- Frame Type: Frame 3 (Power Defense)
- Trip Unit: Thermal-Magnetic Fixed-Adjustable
- Terminals: No terminals included
- Certifications: UL 489
- Circuit Breaker Type: Molded Case Circuit Breaker (MCCB)
- Mounting: Panel mount
Specifications
- Part Number: PDG33G0600TFAN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Molded case circuit breaker
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 600
- Phase : 3
- AIC rating : 35kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679234273
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
