Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG33F0250TFAJ

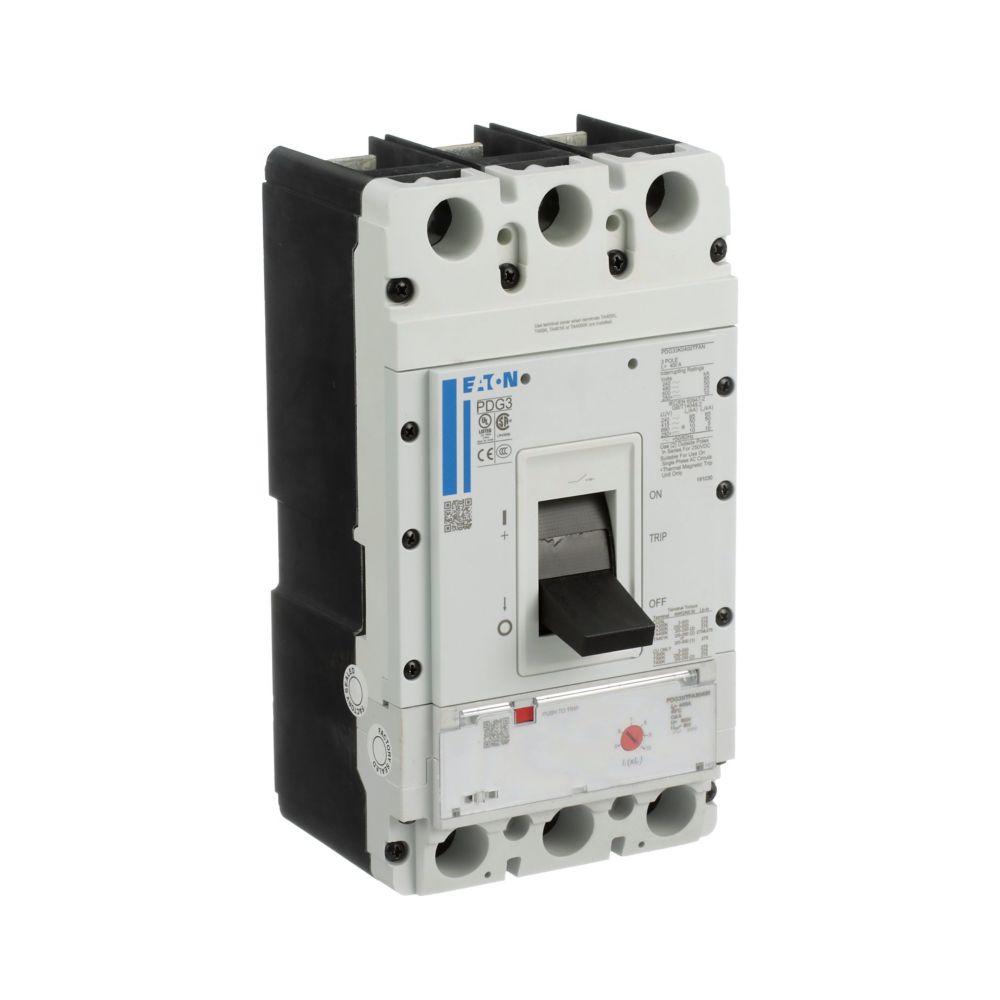

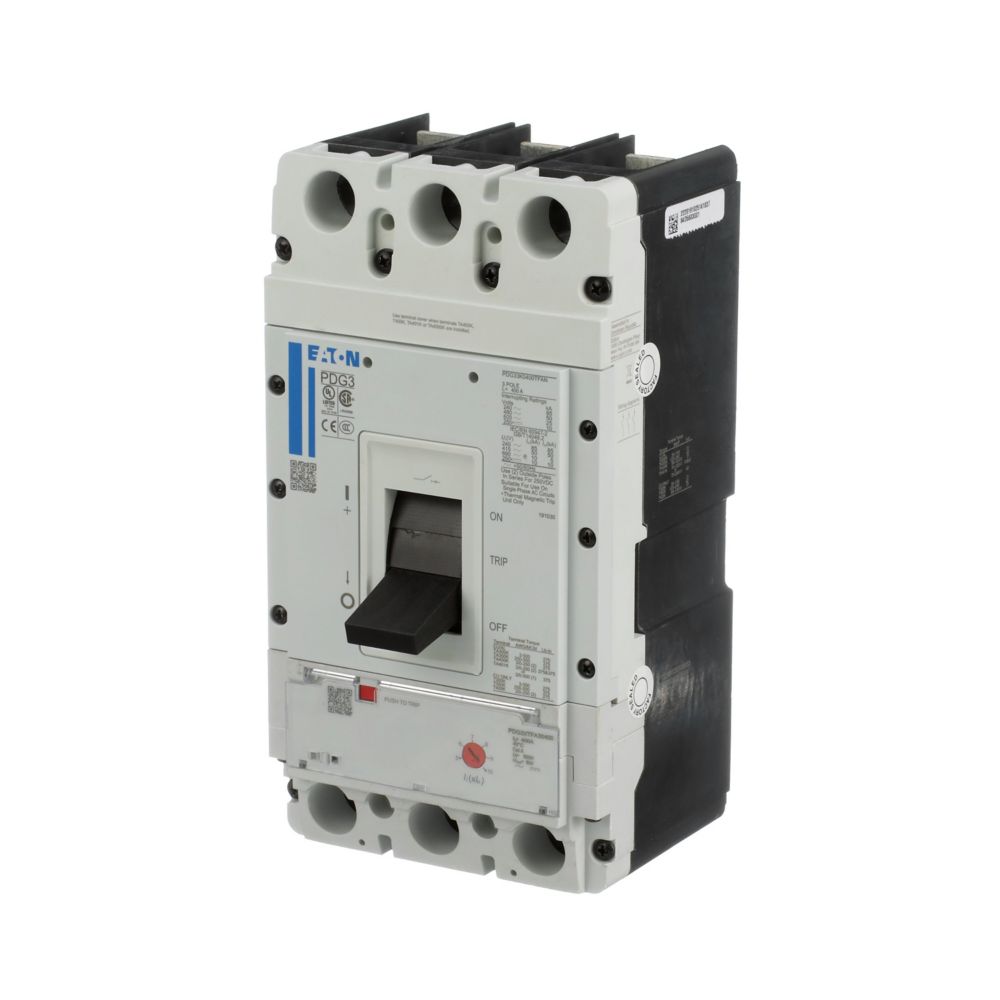

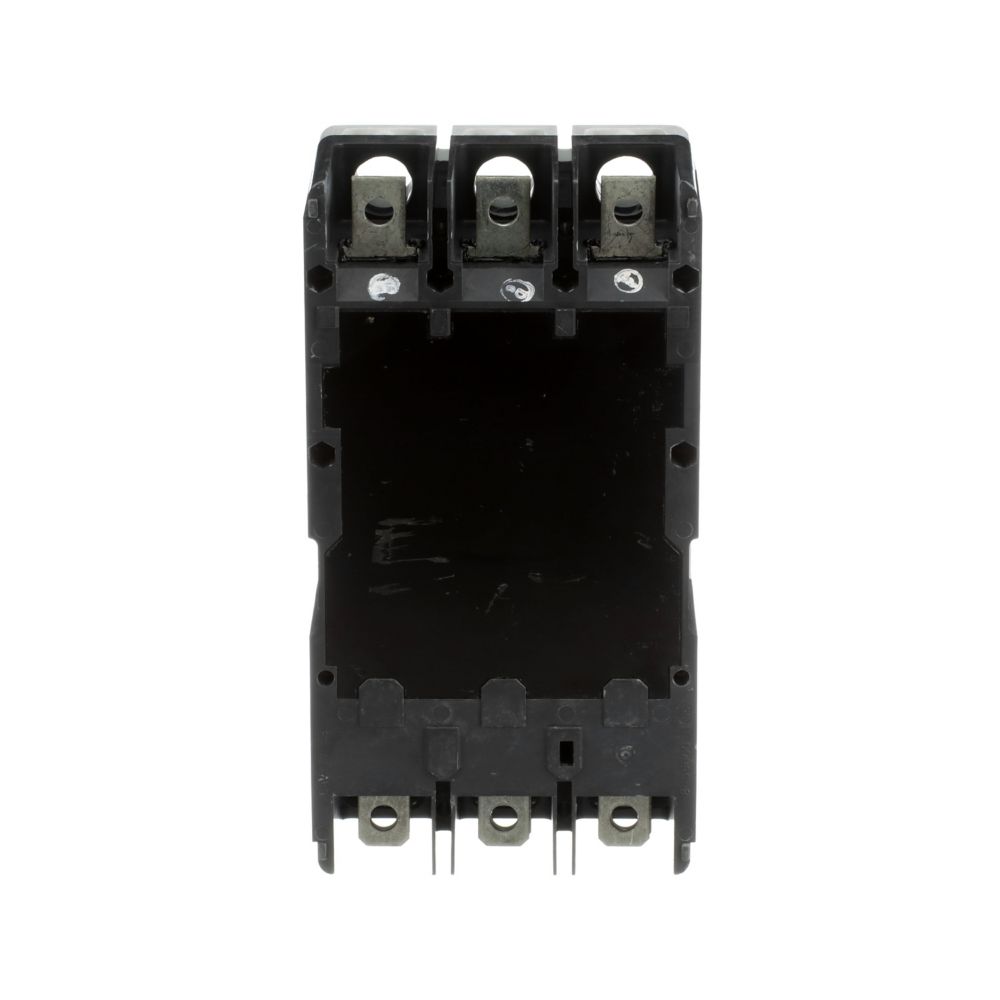

PDG33F0250TFAJ is a 3 pole, 250A molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial power distribution systems. This Eaton PDG33F0250TFAJ breaker features a thermal magnetic trip unit, 600VAC rating, and a robust Frame 3 construction for high performance in demanding environments. It is suitable for panel mounting and offers a 25 kAIC interrupt rating at 480VAC, making it ideal for a wide range of applications.
- Part Number: PDG33F0250TFAJ
- Manufacturer: Eaton
- Series: Power Defense
- Frame: 3
- Amperage Rating: 250A
- Number of Poles: 3
- Voltage Rating: 600VAC
- Interrupt Rating: 25 kAIC at 480VAC
- Mounting Type: Panel
- Breaker Type: Thermal Magnetic
- Trip Unit: T-M (Fixed-Adjustable) TU
- Certifications: UL Listed
Specifications
- Part Number: PDG33F0250TFAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679538555
- Country of Origin : Dominican Republic
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 12.5103
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
