Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG32G0600FNNN

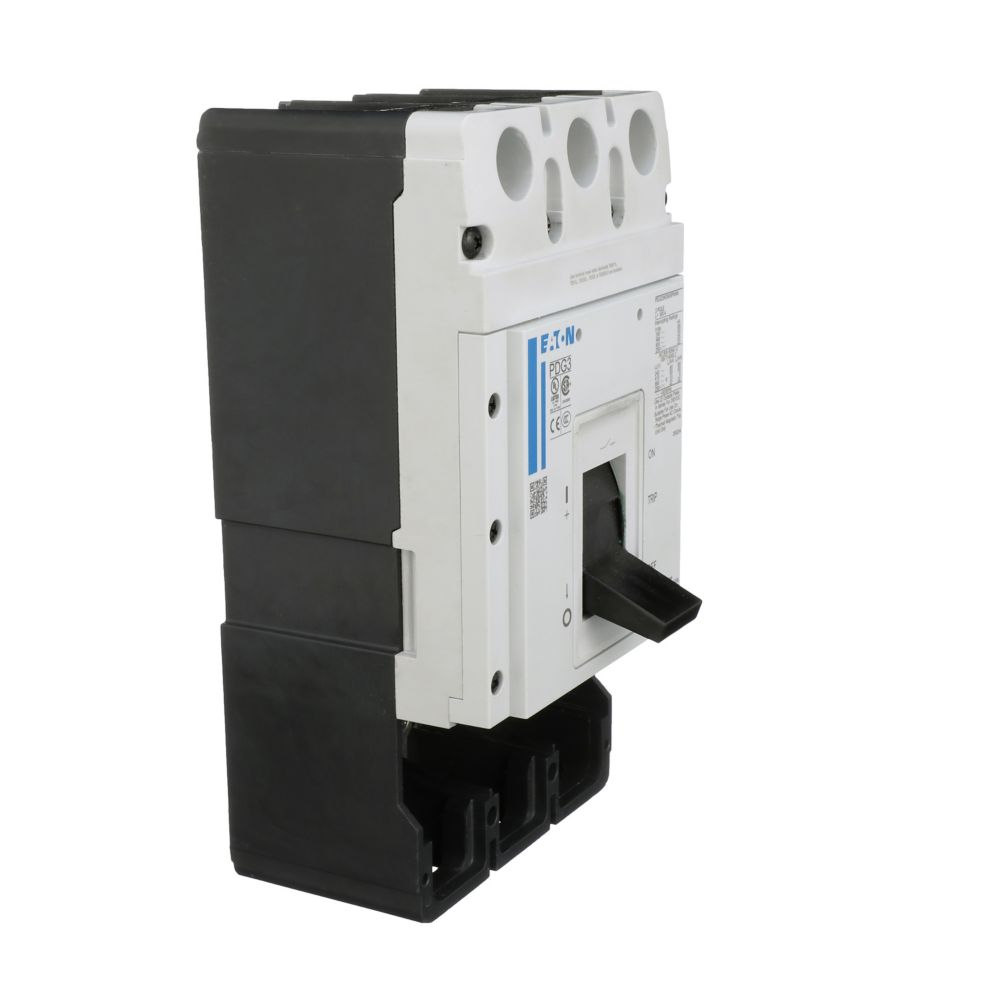

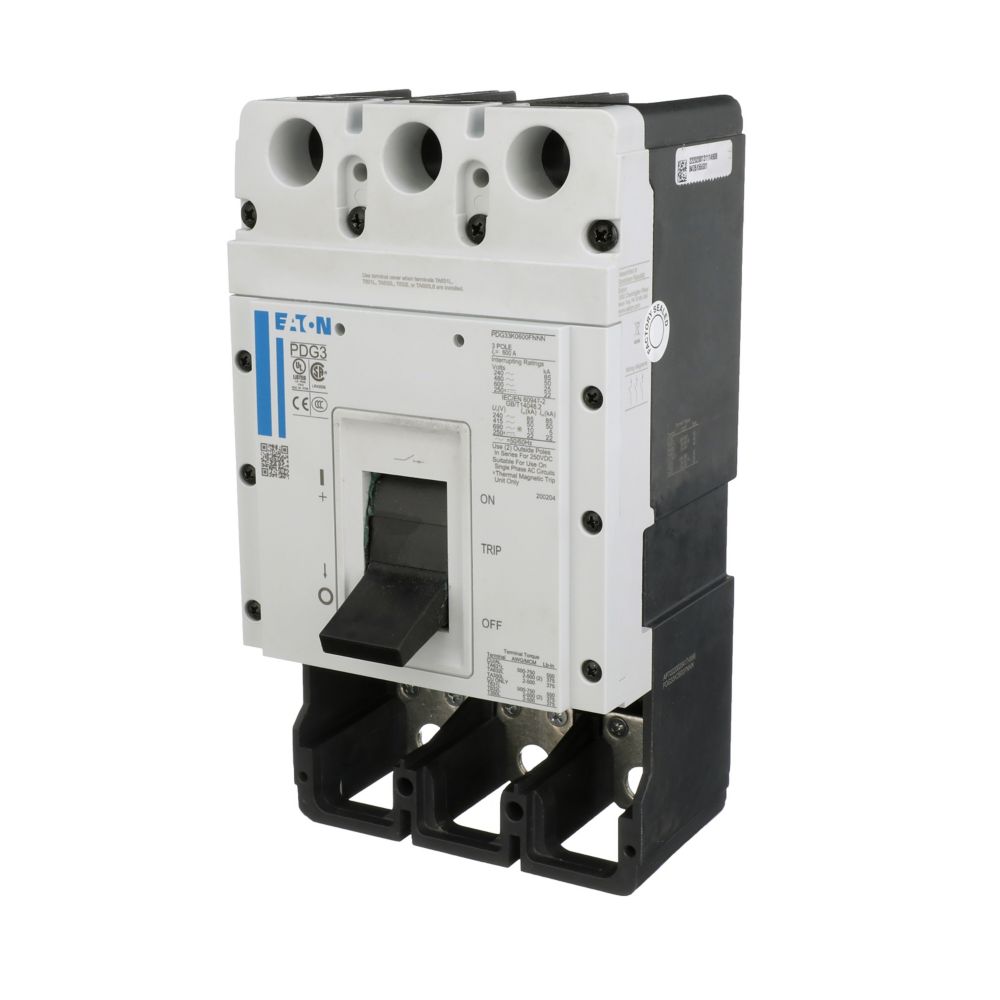

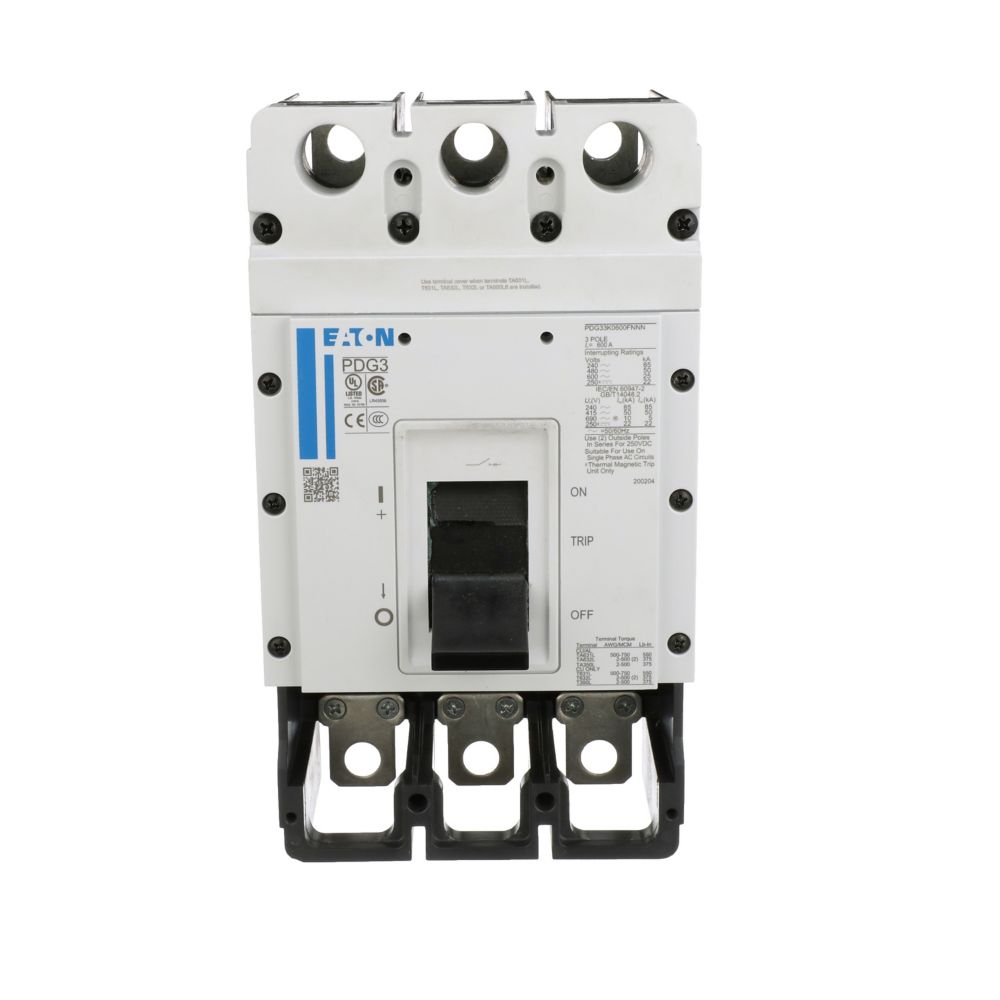

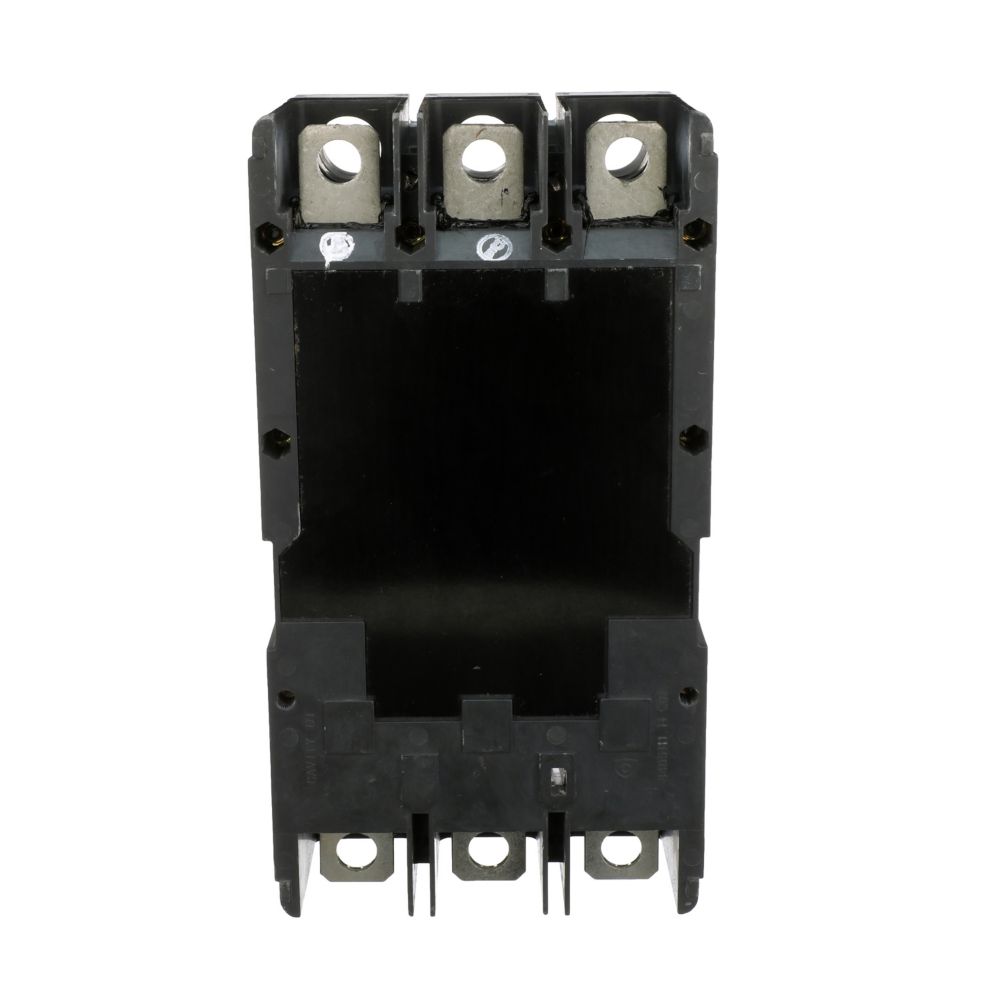

PDG32G0600FNNN is a 2 pole, 600 amp, 600 volt molded case circuit breaker from Eaton Cutler Hammer's Power Defense PD3 Global series.This circuit breaker features a Frame 3 design with a 35kA interrupt rating at 480 VAC. It is a frame-only unit with no terminals included and provides thermal magnetic trip protection. The breaker is suitable for bolt-on mounting and is UL listed for industrial applications.
- Manufacturer: Eaton Cutler Hammer
- Part Number: PDG32G0600FNNN
- Amperage: 600A
- Voltage Rating: 600 VAC
- Poles: 2
- Frame: 3 (Power Defense PD3 Global)
- Interrupt Rating: 35kA at 480 VAC
- Mounting Type: Frame Only (no terminals)
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: PDG32G0600FNNN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 600
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679230220
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 11.632349
