Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG32G0400FNNN

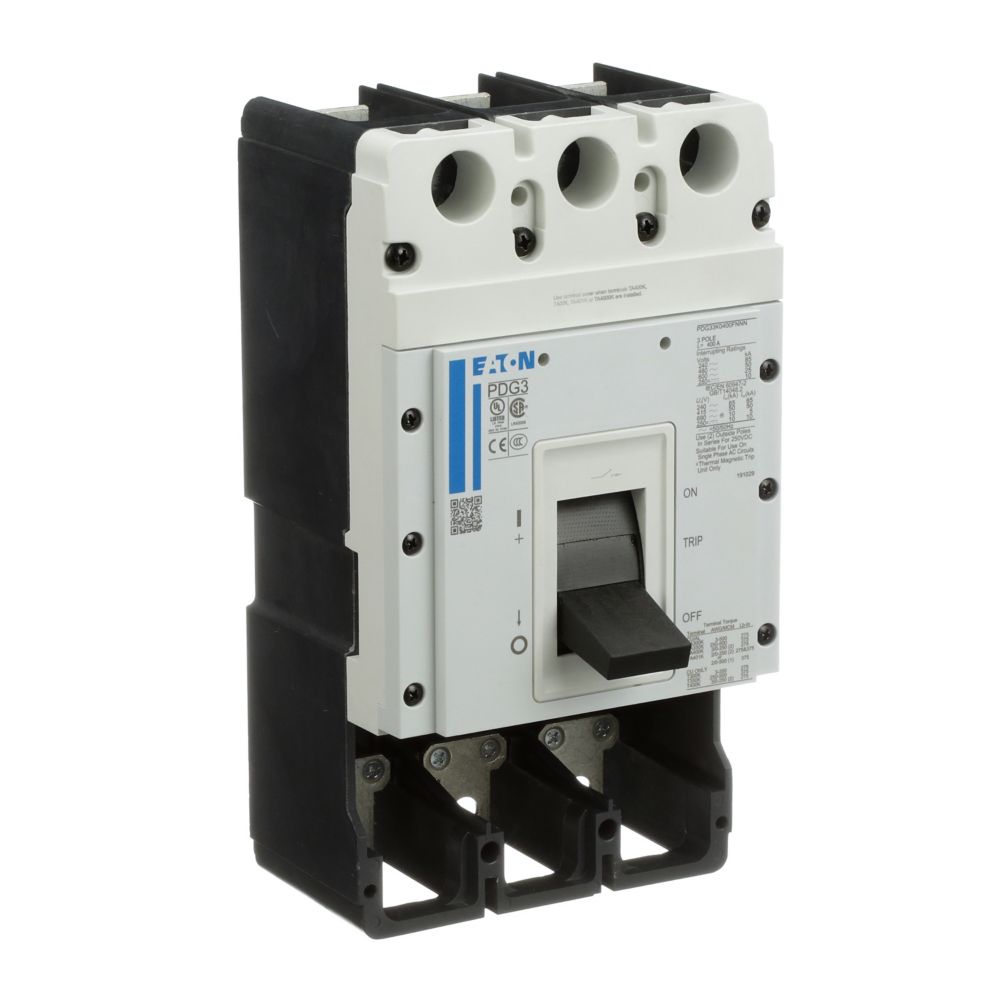

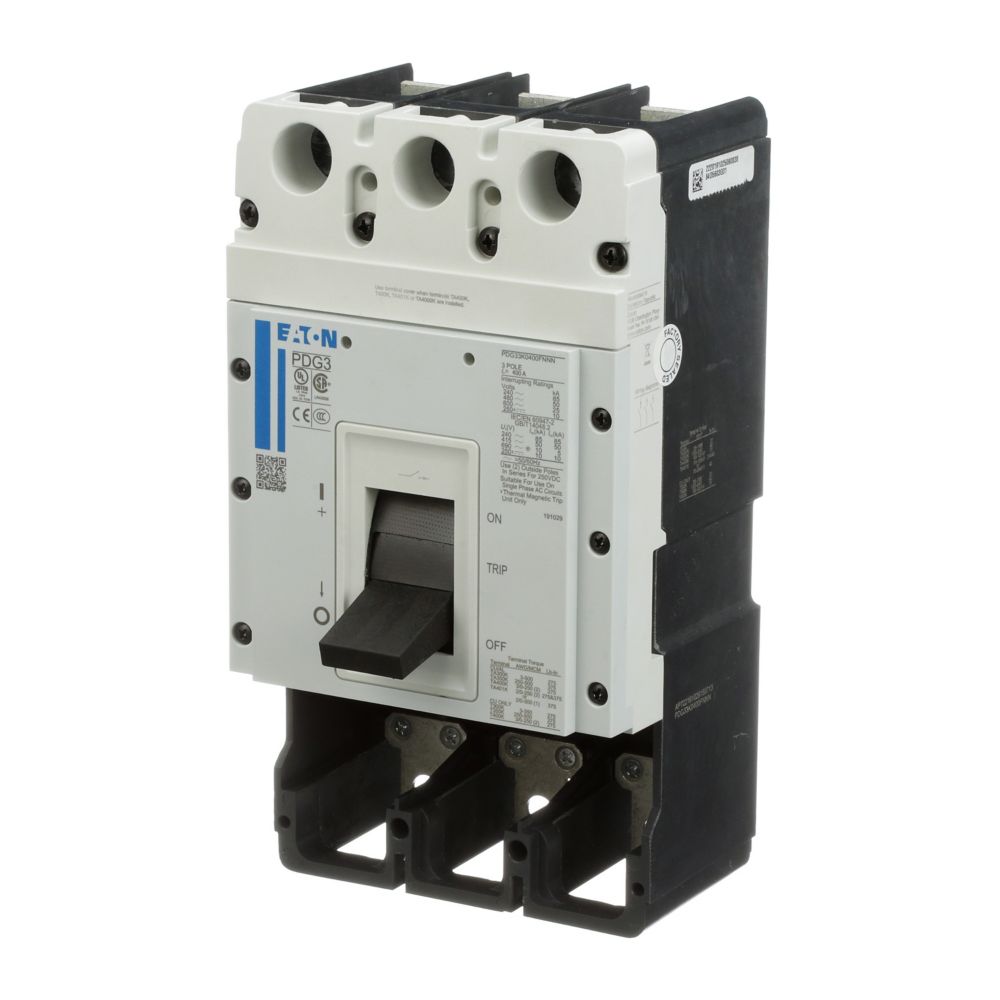

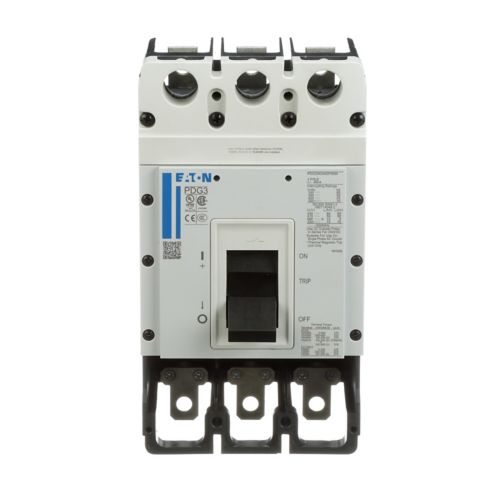

PDG32G0400FNNN is a 400 amp, 600 volt, 2-pole molded case circuit breaker from Eaton Cutler Hammer's PD3 Global series with Frame 3 design.This circuit breaker features a thermomagnetic trip unit, a 35 kA interrupt rating at 480 Vac, and is frame only with no terminals. It is UL 489 certified and RoHS compliant, designed for reliable power distribution protection in industrial and commercial applications.
- Amperage: 400 A
- Voltage Rating: 600 Vac
- Number of Poles: 2
- Interrupt Rating: 35 kAIC at 480 Vac
- Frame: 3 (Frame Only, No Terminals)
- Trip Unit Type: Thermomagnetic
- Circuit Breaker Type: PD3 Global
- Certifications: UL 489
- Compliance: RoHS Compliant
- Mounting Type: Bolt-On
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
Specifications
- Part Number: PDG32G0400FNNN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 400
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679295496
- Dimensions : 109.1 mm x 257.1 mm x 138.9 mm (Length/Depth x Height x Width)
- Weight : 11.632349
