Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23P0225TFFL

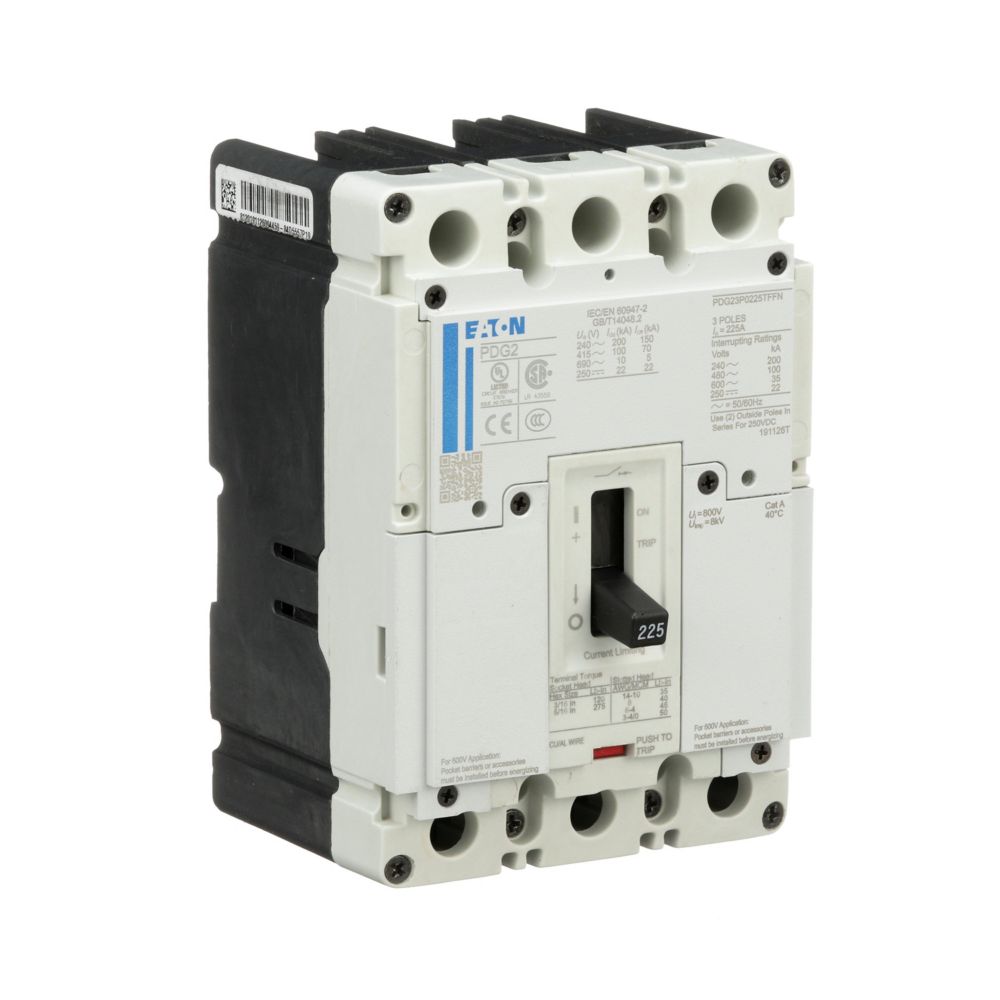

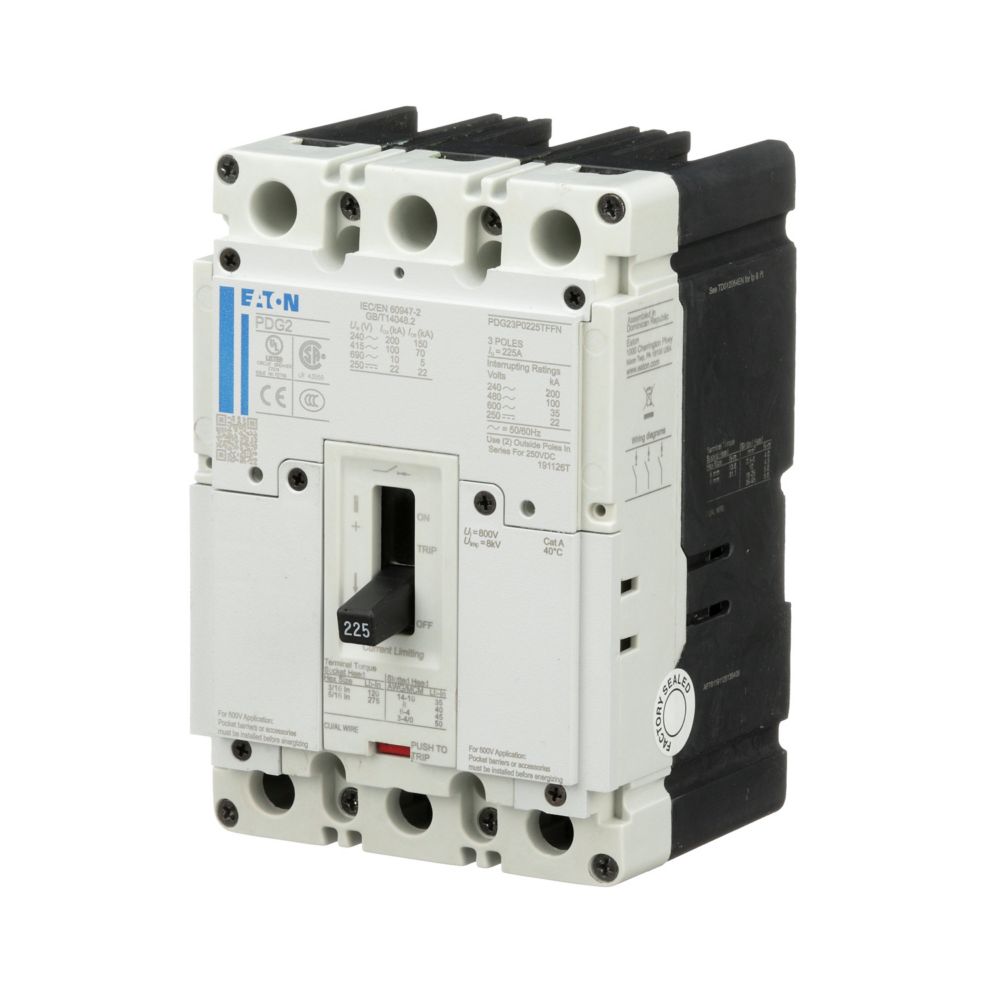

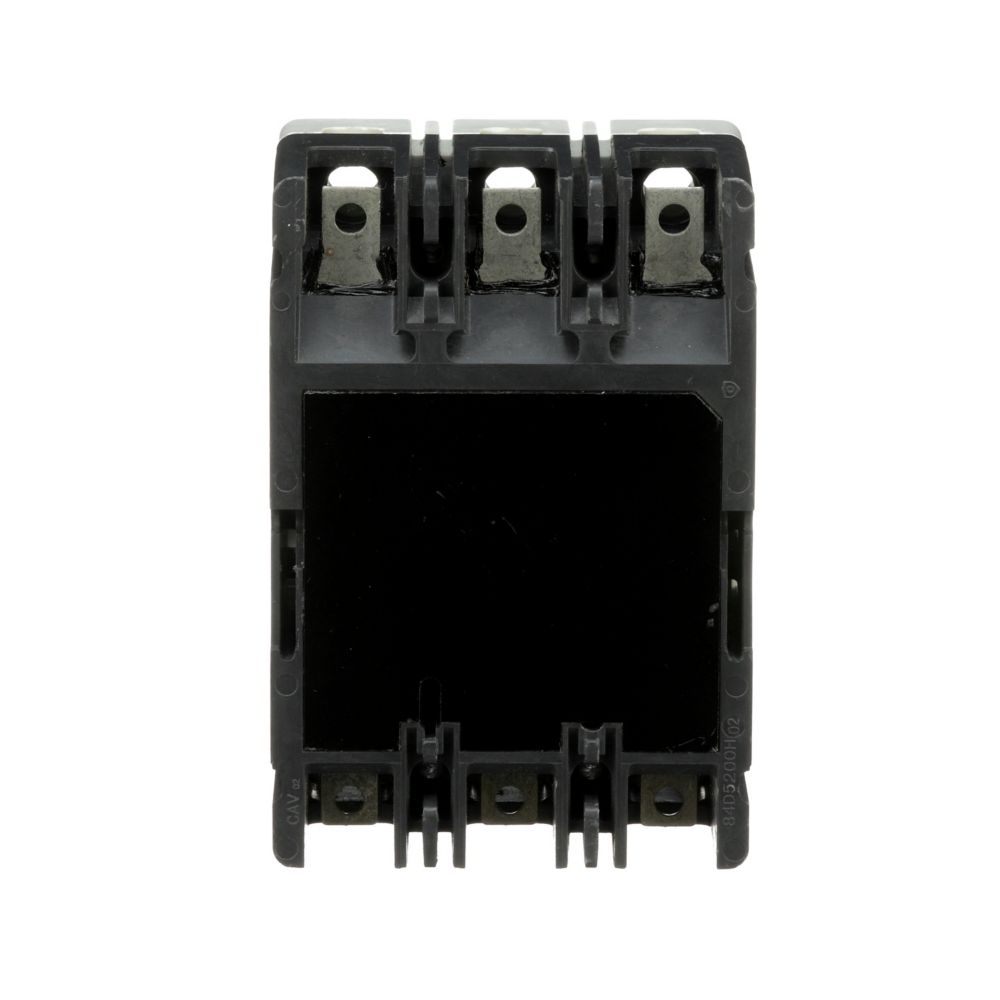

PDG23P0225TFFL is a 3 pole, 225 amp, 600 volt Eaton Power Defense molded case circuit breaker with bolt-on mounting and a 100 kA interrupt rating at 480V.PDG23P0225TFFL features a Frame 2 design with a T-M fixed-fixed trip unit, suitable for global ratings and heavy-duty industrial applications. It supports wire sizes from 4 to 4/0 AWG and is certified for reliable circuit protection.
- Amperage: 225A
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100 kA at 480 VAC
- Frame Type: 2 (Power Defense)
- Trip Unit: T-M Fixed-Fixed (FXFXTMTU)
- Wire Size Range: 4 to 4/0 AWG
- Global Certifications and Ratings
- Suitable for industrial and commercial power distribution
Specifications
- Part Number: PDG23P0225TFFL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679880791
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : IEC 60947-2 UL 489 CCC Marked CSA
