Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23P0090TFFJ

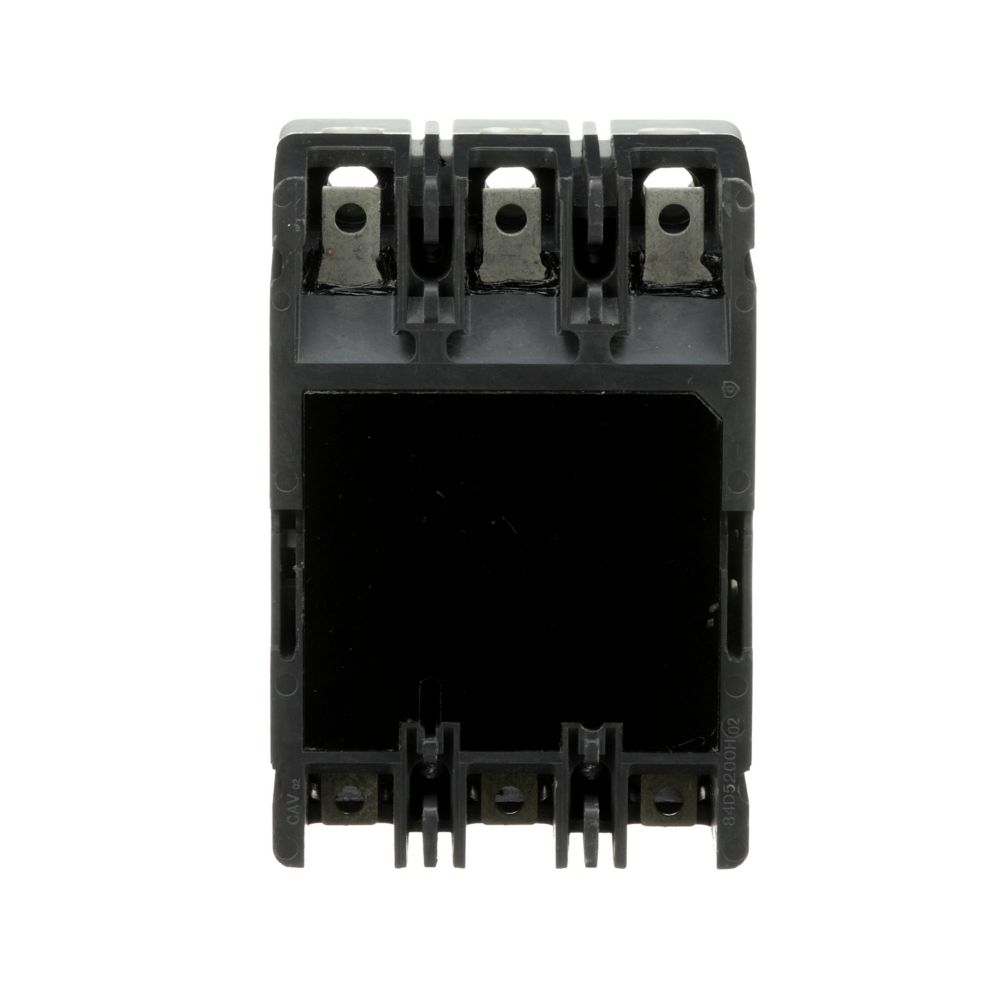

PDG23P0090TFFJ is a 90 amp, 600 volt, 3-pole molded case circuit breaker from Eaton Cutler Hammer's Power Defense series.This circuit breaker features a Frame 2 design with fixed thermal and fixed magnetic trip units, providing reliable thermal magnetic protection. It is rated for 100kA interrupting capacity at 480 volts and is suitable for panel mounting with feed-thru connections. The breaker is globally certified to UL, CSA, IEC, and CCC standards.
- Key Specifications
- Amperage: 90 A
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 100kA at 480 V
- Frame/Series: Power Defense Frame 2
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Mounting Type: Panel Mount
- Connection Type: Feed-Thru
- Certifications: UL, CSA, IEC, CCC
- Functions: Long-Time and Instantaneous Protection
Specifications
- Part Number: PDG23P0090TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 786679251355
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : IEC 60947-2 CSA CCC Marked UL 489
