Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0225E3RL

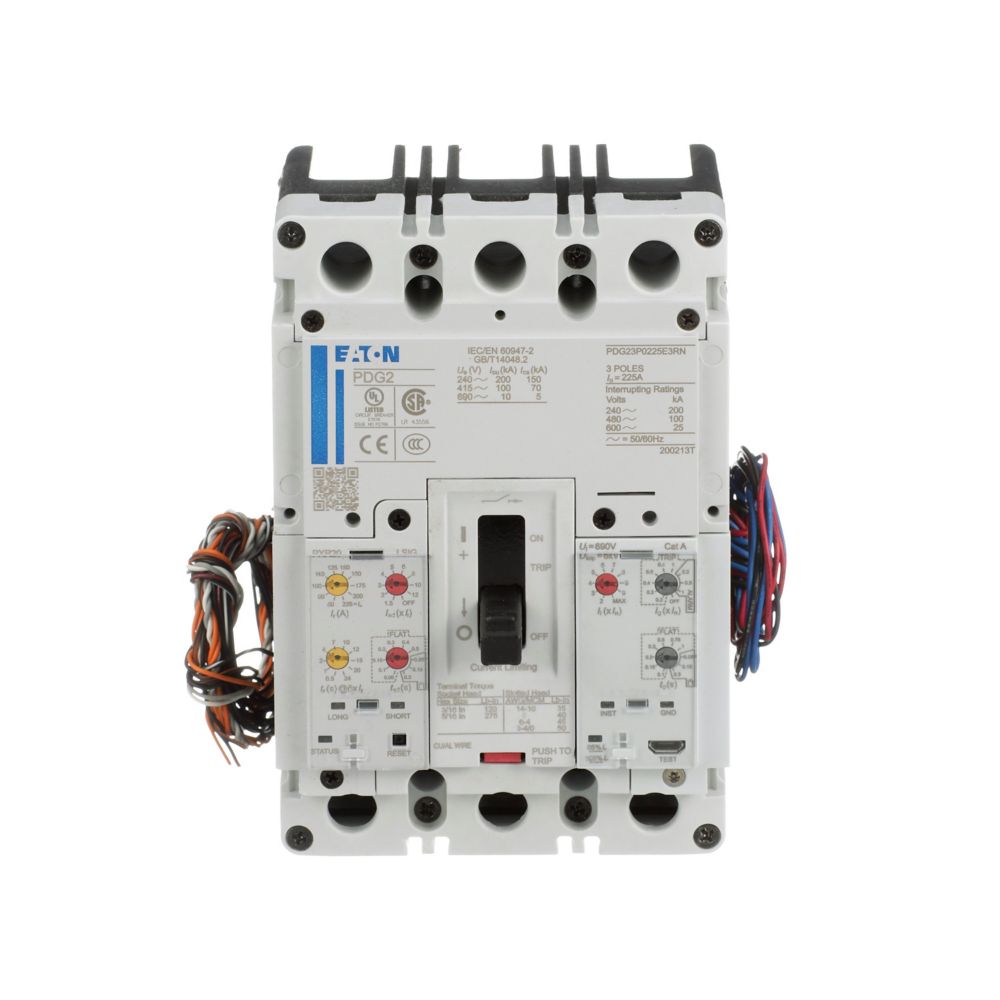

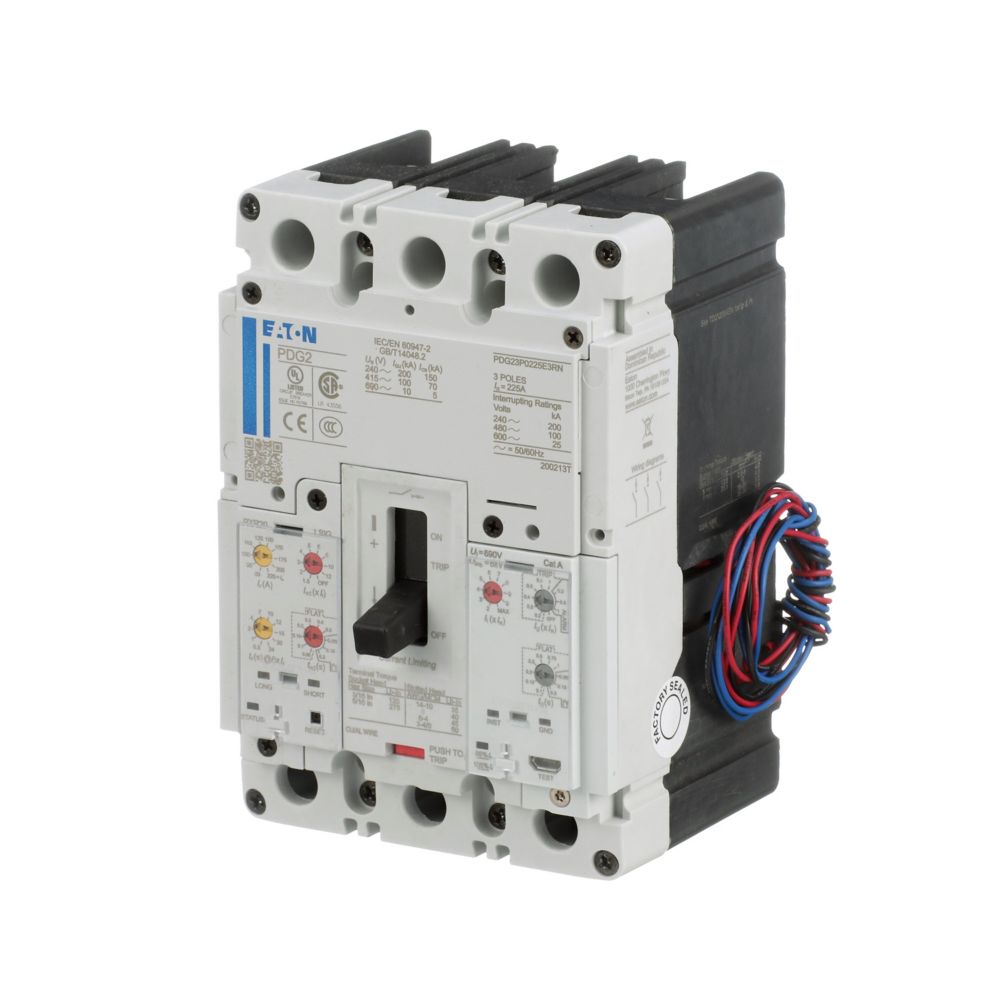

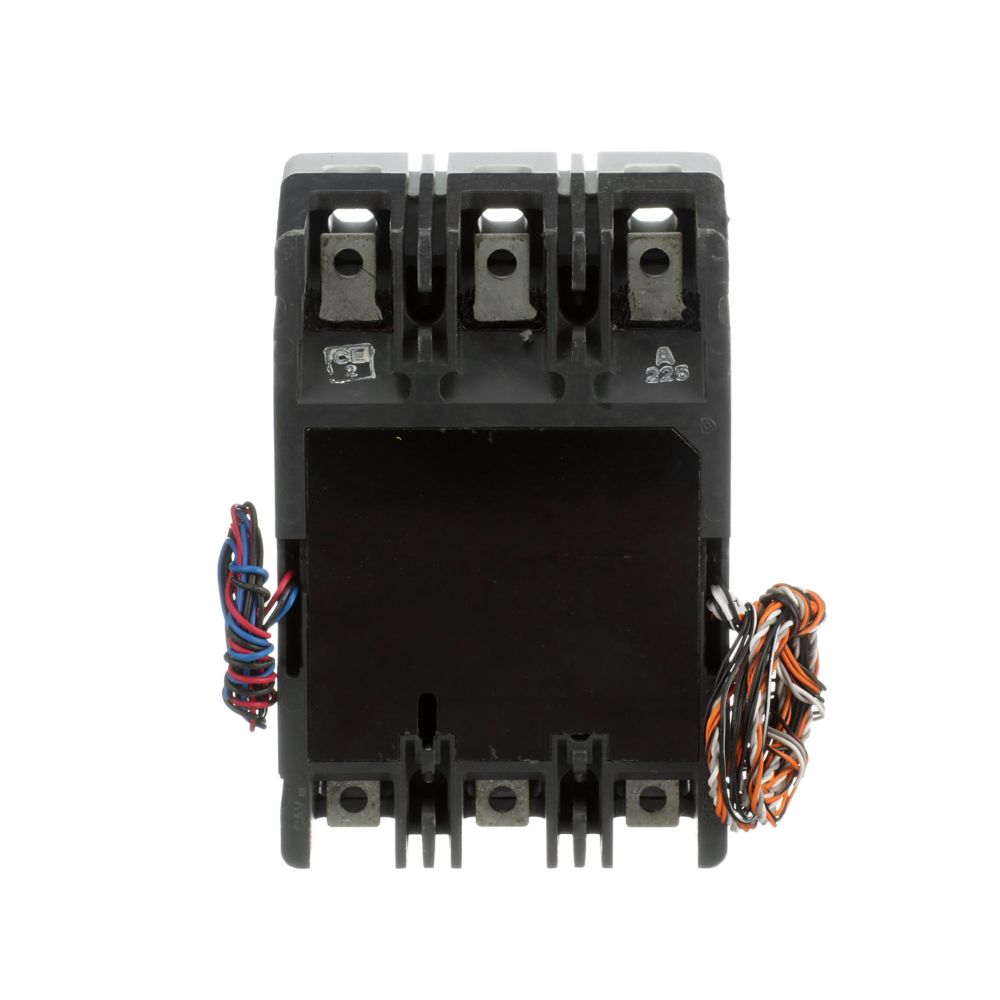

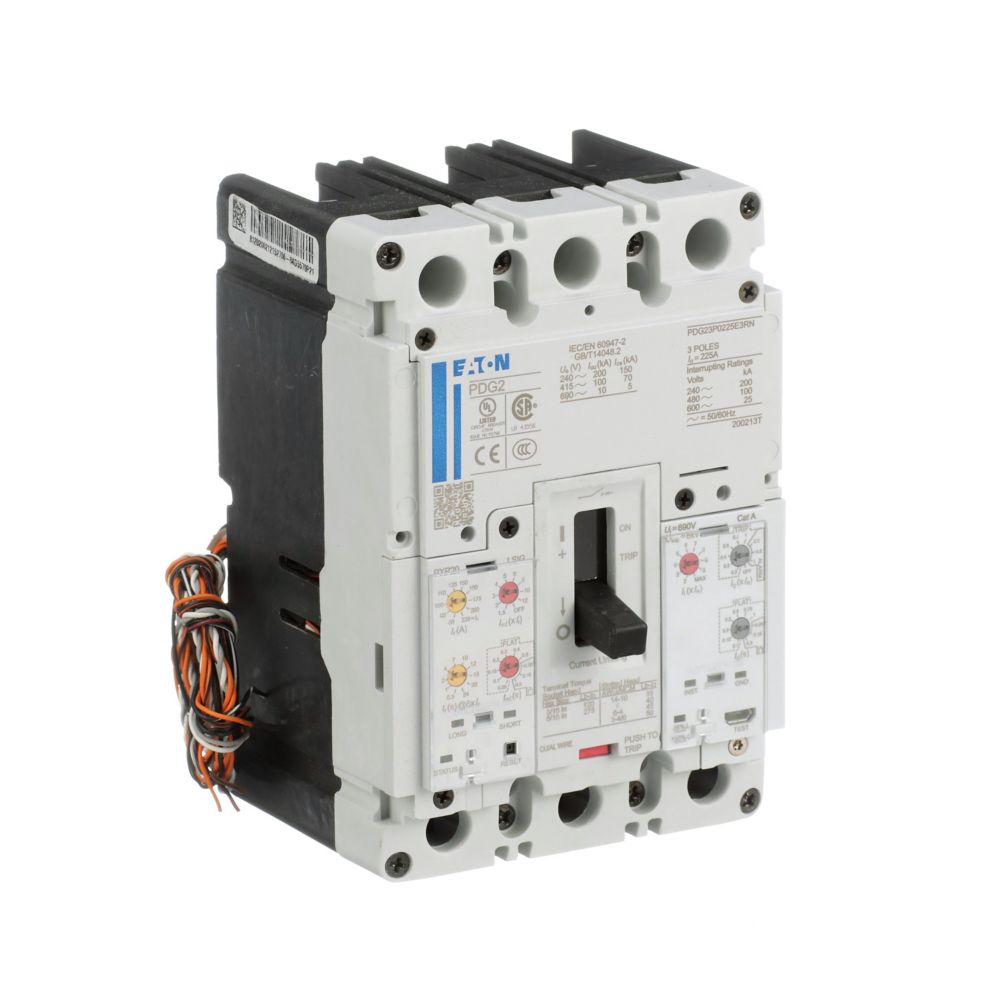

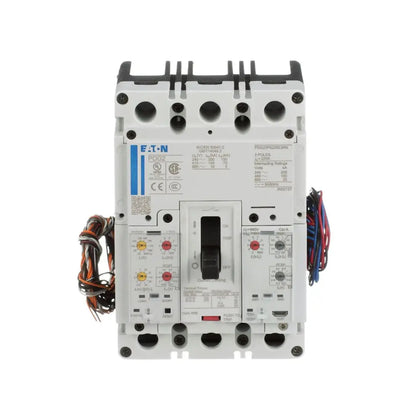

PDG23M0225E3RL is an Eaton Power Defense molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.PDG23M0225E3RL features a 225 ampere rating, 600 VAC voltage rating, and a three-pole configuration with a Frame 2 design. It includes a PXR20 LSIG trip unit with relays and standard load-only terminals. The breaker offers a 65 kA interrupt rating at 480 VAC and is globally rated for versatile use. Certifications include UL and CSA standards.
- Amperage: 225 A
- Voltage: 600 VAC
- Poles: 3
- Frame: 2
- Interrupt Rating: 65 kA at 480 VAC
- Trip Unit: PXR20 LSIG with relays
- Mounting Type: Load-only terminals
- Global Ratings: Yes
- Certifications: UL, CSA
- Frequency: 50/60 Hz
- Connection Type: Load
Specifications
- Part Number: PDG23M0225E3RL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 786679807569
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : IEC 60947-2 CSA UL 489 CCC Marked
