Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

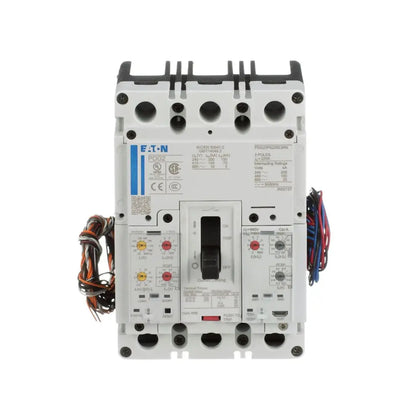

PDG23M0150E3RJ
PDG23M0150E3RJ is an Eaton Power Defense molded case circuit breaker designed for reliable power distribution protection.This 3 pole circuit breaker features a 150 ampere rating, 600 volt maximum operating voltage, and a 65kA interrupt rating at 480 Vac. It uses electronic switch-off technology and includes a PXR20 LSIG trip unit with relays, suitable for standard line and load applications. The breaker is globally rated, Frame 2, and provides solid-state protection with long-time, short-time, instantaneous, and ground fault functions.
- Amperage: 150A
- Voltage Rating: 600V AC max
- Poles: 3
- Interrupt Rating: 65kA at 480V
- Frame: 2
- Trip Unit: PXR20 LSIG with relays
- Switch Off Technique: Electronic
- Mounting Type: Molded Case
- Globally Rated
- Standard Line and Load
- Certifications: Meets industry standards for safety and performance
Specifications
- Part Number: PDG23M0150E3RJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 78667925397
- GTIN : 00786679253977
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
