PDG23M0150E3MJ - Eaton Cutler Hammer 150 Amp 600 VAC 3 Pole Molded Case Circuit Breaker Frame 2 PXR20 LSIG Trip

PDG23M0150E3MJ

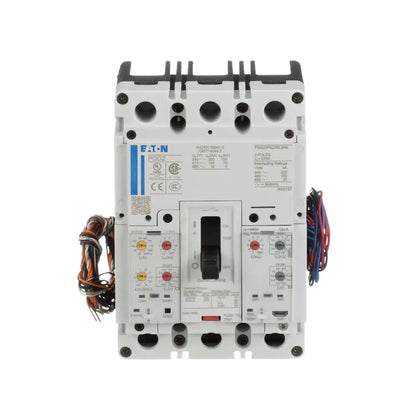

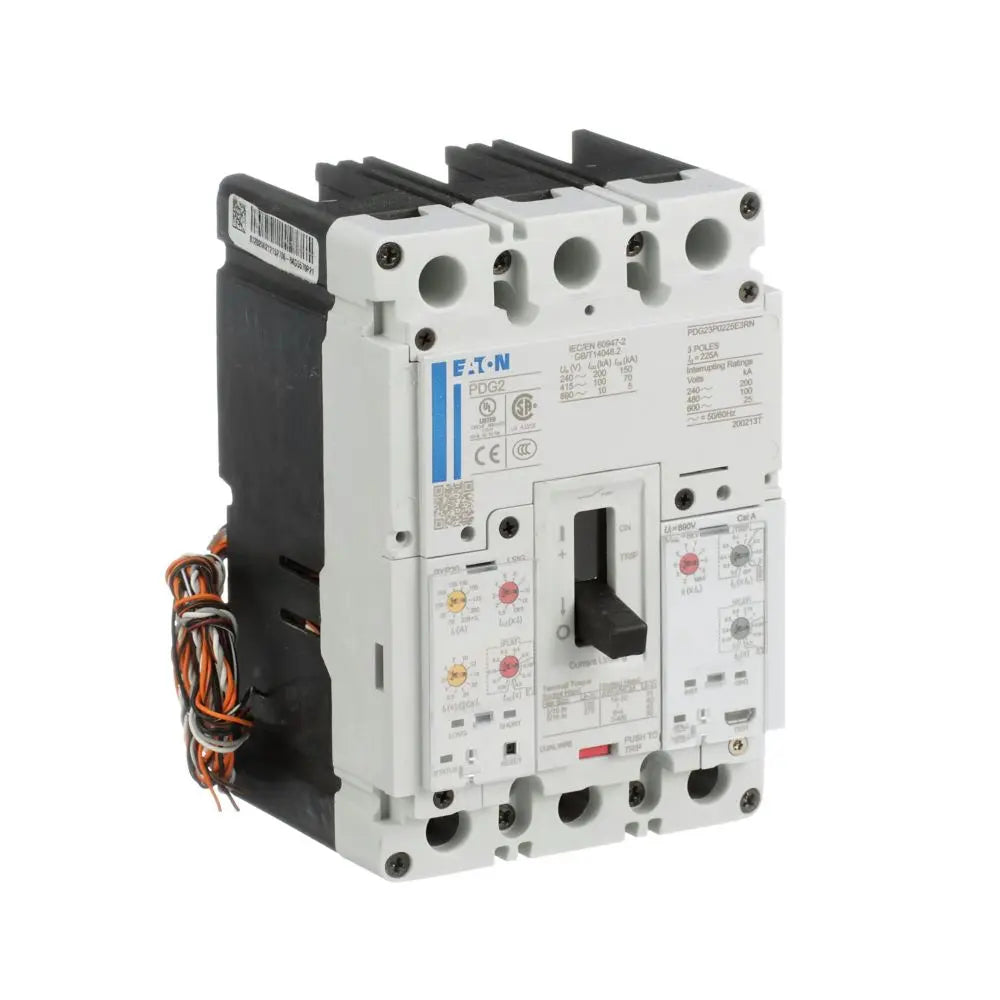

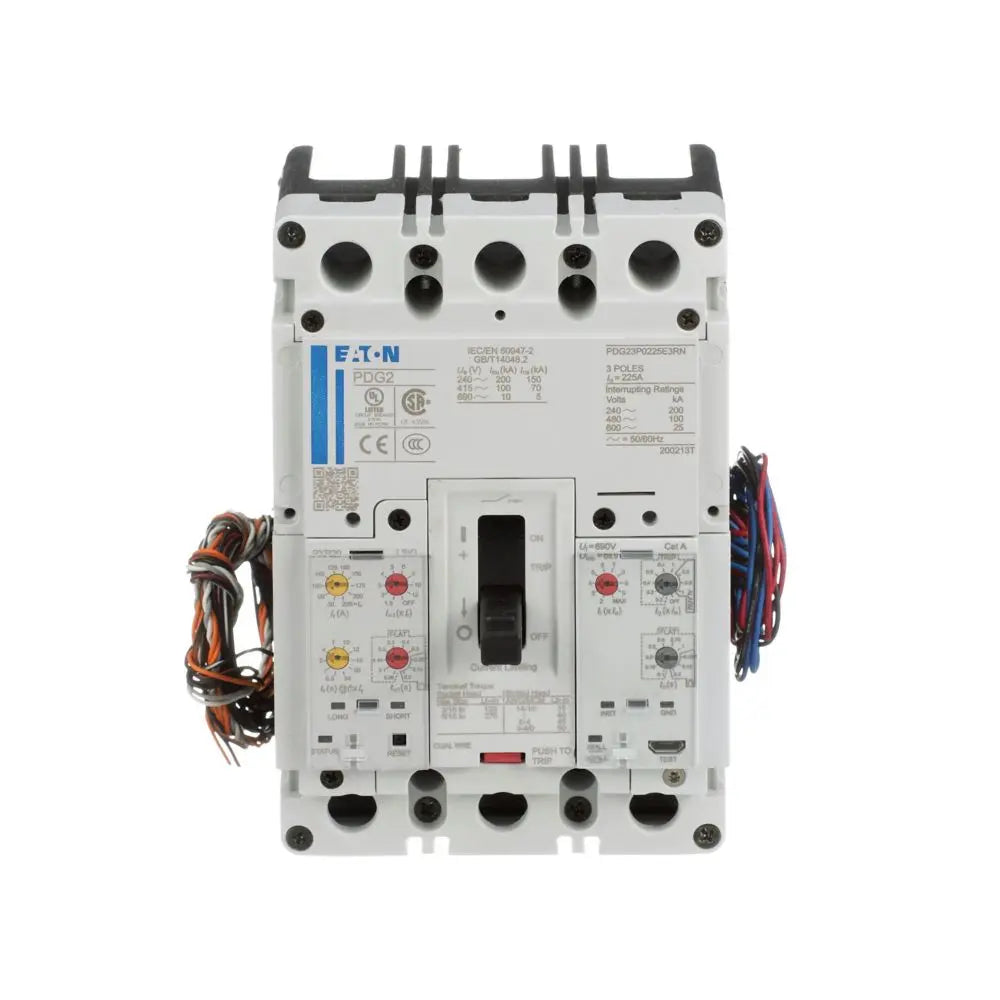

PDG23M0150E3MJ is a 150 Amp, 600 VAC, 3 Pole molded case circuit breaker from Eaton Cutler Hammer's Power Defense series.This circuit breaker features a Frame 2 design with a PXR20 LSIG trip unit, providing reliable protection with a 65 kA interrupt rating at 480V. It supports Modbus RTU communication and is suitable for global applications with a feed-thru power defense capability.

• Amperage: 150 A
• Voltage Rating: 600 VAC
• Poles: 3
• Frame: 2
• Interrupt Rating: 65 kA at 480 V
• Trip Unit: PXR20 LSIG
• Communication: Modbus RTU
• Mounting Type: Molded Case
• Wire Size Range: 4 to 4/0 AWG
• Certifications: Global Ratings
• Feed-Thru Power Defense

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0150E3MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679212318
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 523
