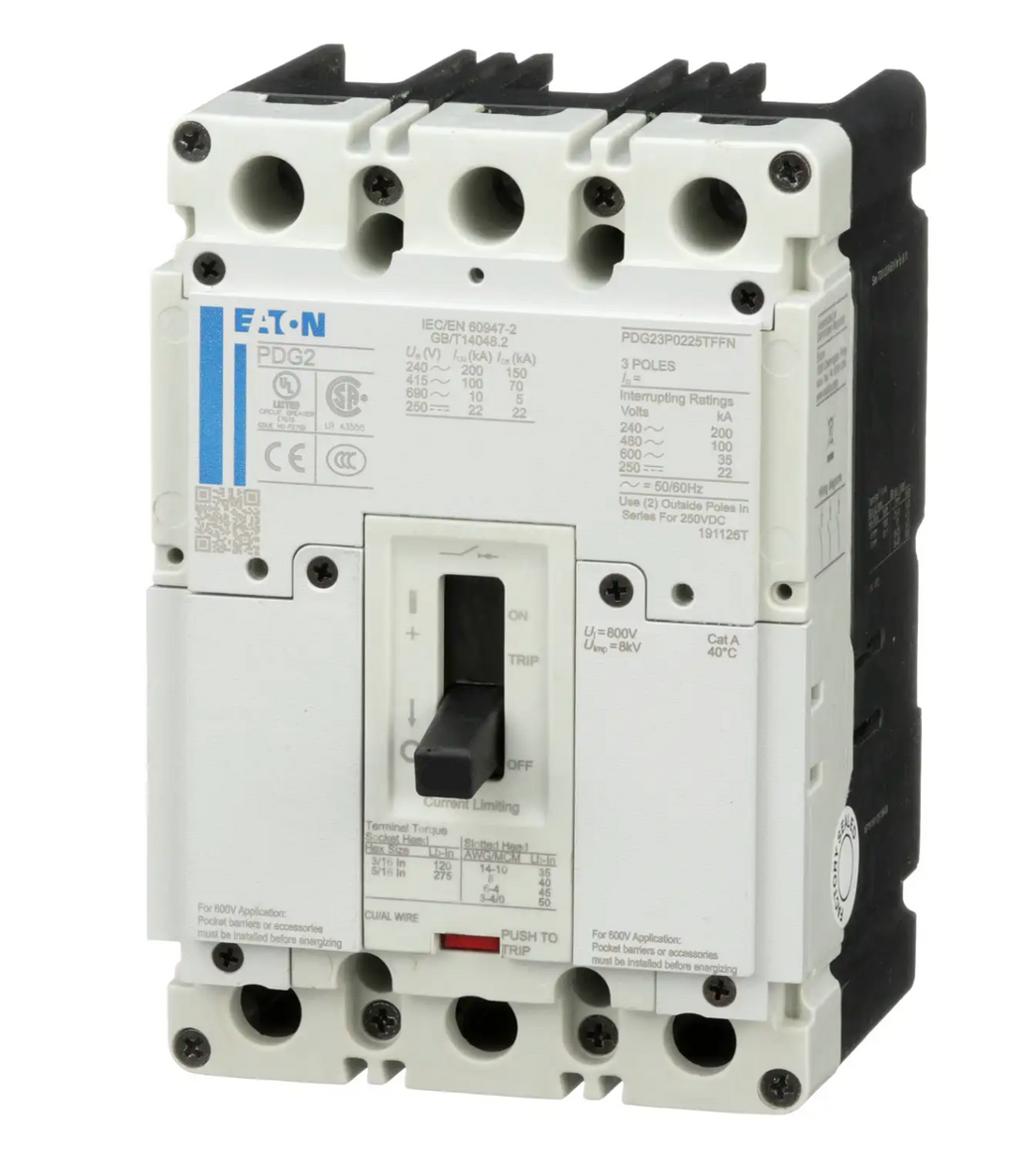

PDG23M0125TFFL - Eaton Power Defense 3P 125A 600VAC 65kAIC Molded Case Circuit Breaker, Frame 2, Bolt-On, Thermal Magnetic Trip, UL/CSA/IEC/CCC Certified

PDG23M0125TFFL

PDG23M0125TFFL is a new Eaton Power Defense molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole, 125A, 600VAC circuit breaker features a thermal magnetic trip unit (T298), bolt-on mounting, and a 65kA interrupting rating at 480VAC. It is part of the PD2 Global series, offering reliable overcurrent and short-circuit protection with global certifications for versatile installation.

Key Specifications
• Amperage: 125A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 480VAC
• Series/Frame: Power Defense PD2 Global, Frame 2
• Trip Unit: Thermal Magnetic (T298)
• Certifications: UL, CSA, IEC, CCC
• Connection: Standard load side lug
• Protection: Long time and instantaneous trip
• Dimensions: 3.5 in x 6 in x 4.11 in
• Weight: 4.01 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0125TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Trip Type : T-M (Fxd-Fxd) TU

Product Data

• UPC : 078667986328
• GTIN : 00786679863282
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 520
