Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0125TFFJ

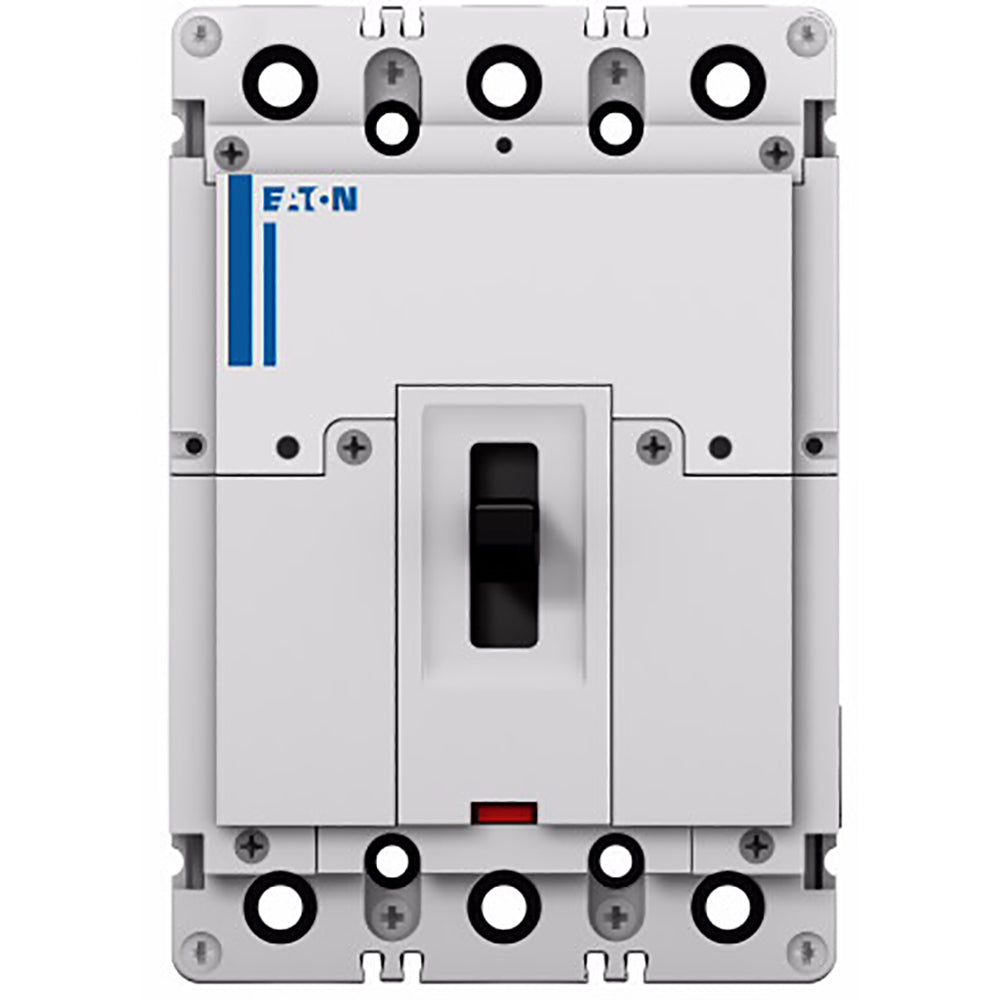

PDG23M0125TFFJ is a three-pole, 125A, 600VAC molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial applications.This Eaton Power Defense circuit breaker features a globally rated Frame 2 design, thermal-magnetic trip unit (T-M Fxd-Fxd TU), 65kA interrupt rating at 480V, and is suitable for panel mounting. It provides long-time and instantaneous (LI) protection, meets UL/CSA/IEC/CCC standards, and is built for durability and safety in demanding environments.
- Part Number: PDG23M0125TFFJ
- Manufacturer: Eaton
- Series: Power Defense
- Frame: 2
- Poles: 3
- Amperage: 125A
- Voltage: 600VAC
- Interrupt Rating: 65kA @ 480V
- Mounting: Panel
- Trip Unit: Thermal-Magnetic (T-M Fxd-Fxd TU)
- Protection: Long-Time and Instantaneous (LI)
- Certifications: UL, CSA, IEC, CCC
Specifications
- Part Number: PDG23M0125TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679313244
- GTIN : 00786679313244
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 519
