PDG23M0100TFFJ - Eaton Power Defense 3 Pole 100A 600VAC Molded Case Circuit Breaker

PDG23M0100TFFJ

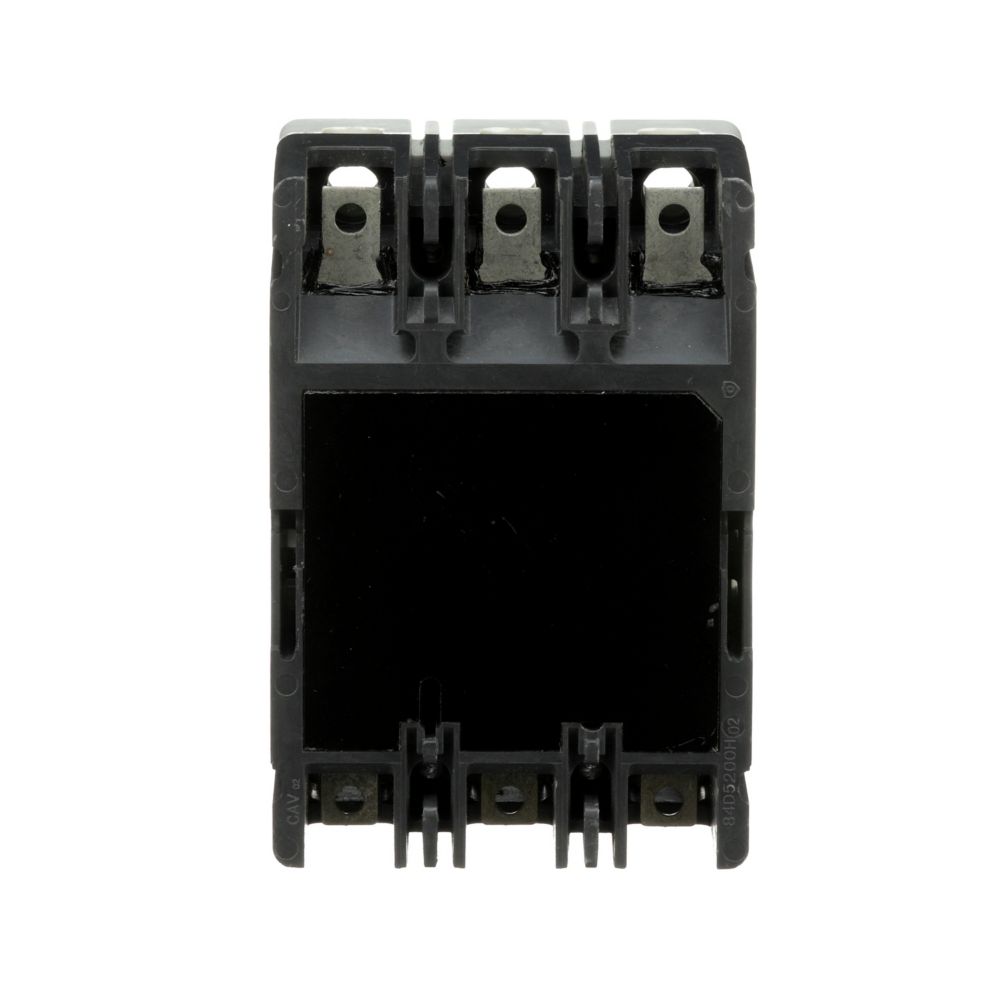

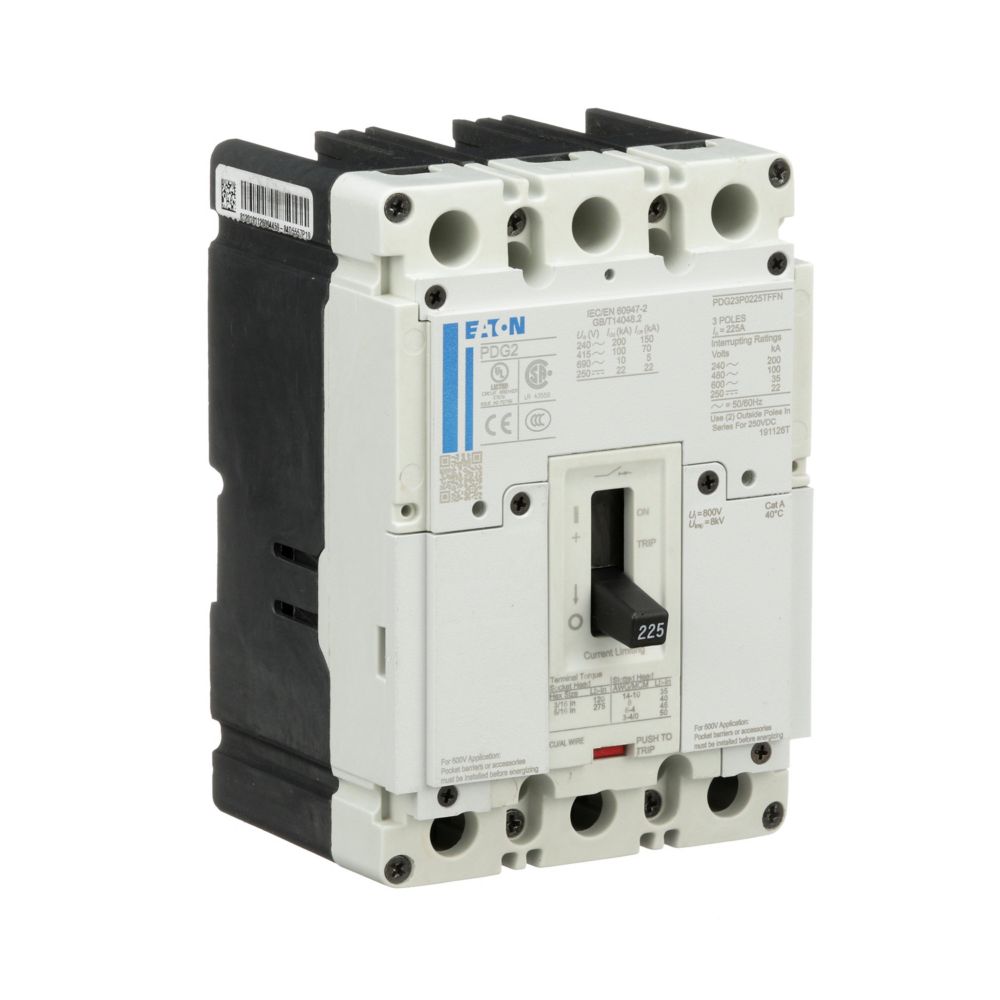

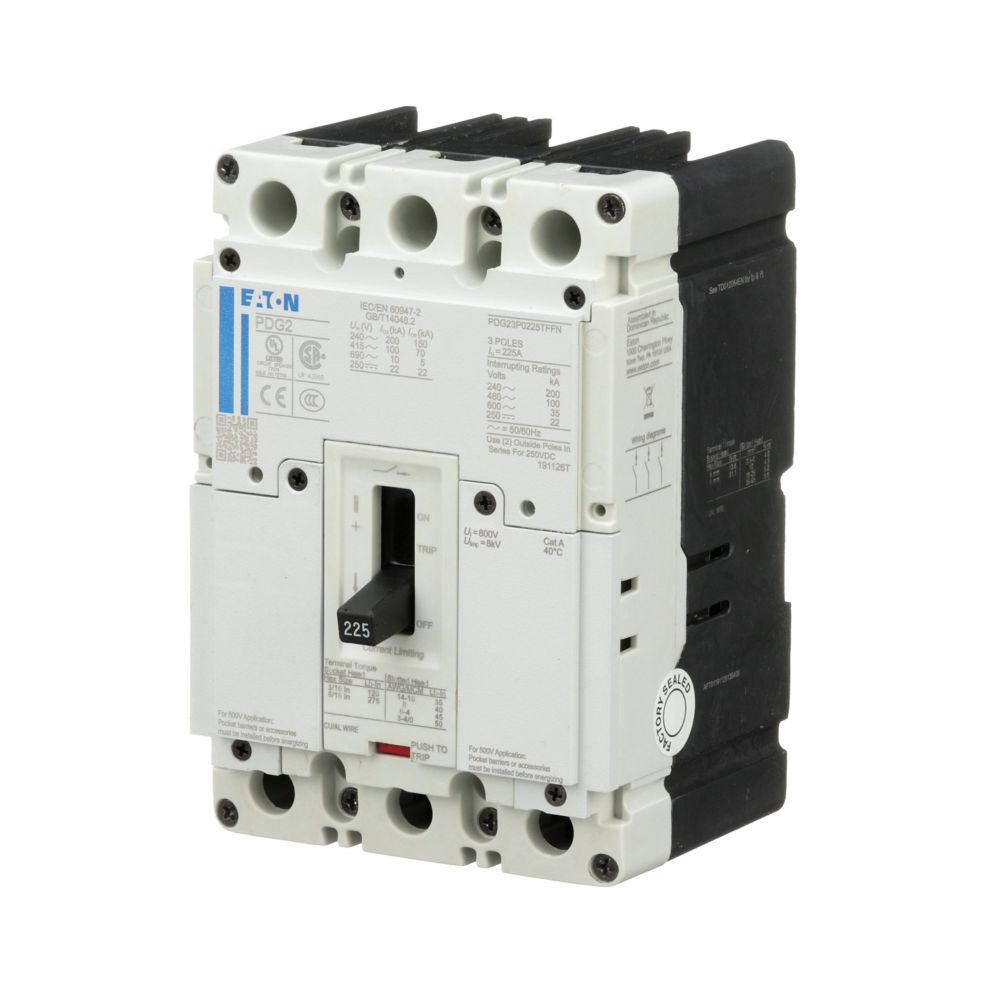

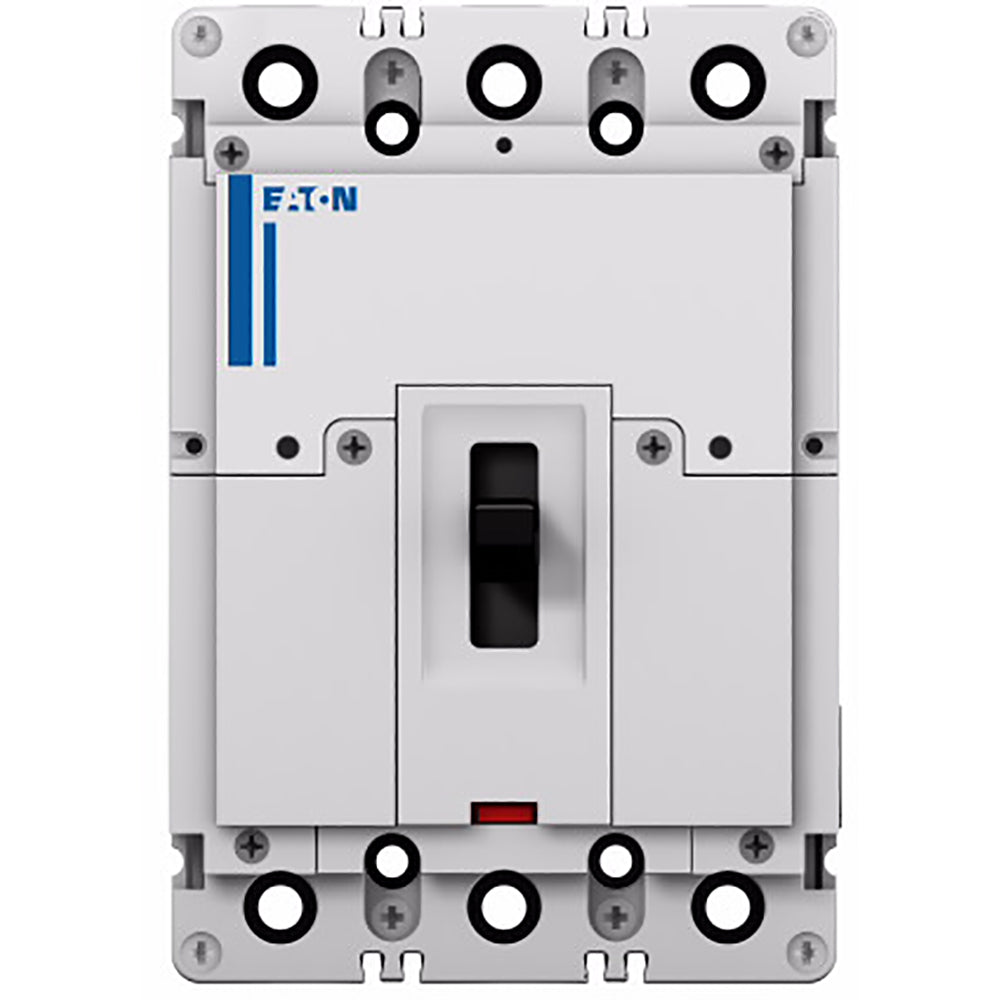

PDG23M0100TFFJ is a 3 pole, 100A, 600VAC molded case circuit breaker from Eaton's Power Defense series, designed for reliable circuit protection in industrial and commercial applications. This Eaton Power Defense molded case circuit breaker features a thermal magnetic trip unit, fixed mounting, and a robust interrupt rating suitable for demanding environments. It is globally rated and engineered for safety and durability in a wide range of electrical systems.

• Part Number: PDG23M0100TFFJ
• Manufacturer: Eaton
• Series: Power Defense
• Frame: 2
• Poles: 3
• Amperage Rating: 100A
• Voltage Rating: 600VAC, 250VDC
• Interrupt Rating: 65 kAIC at 480VAC, 25 kAIC at 600VAC
• Mounting Type: Panel / Chassis
• Trip Unit: Fixed Thermal Magnetic
• Certifications: UL Listed, globally rated
• Application: Industrial, Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0100TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78667927830
• GTIN : 00786679278307
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 516
