PDG23M0100P2ML - Eaton 100 Amp 600 VAC 3 Pole Molded Case Circuit Breaker Frame 2 PXR25 LSI

PDG23M0100P2ML

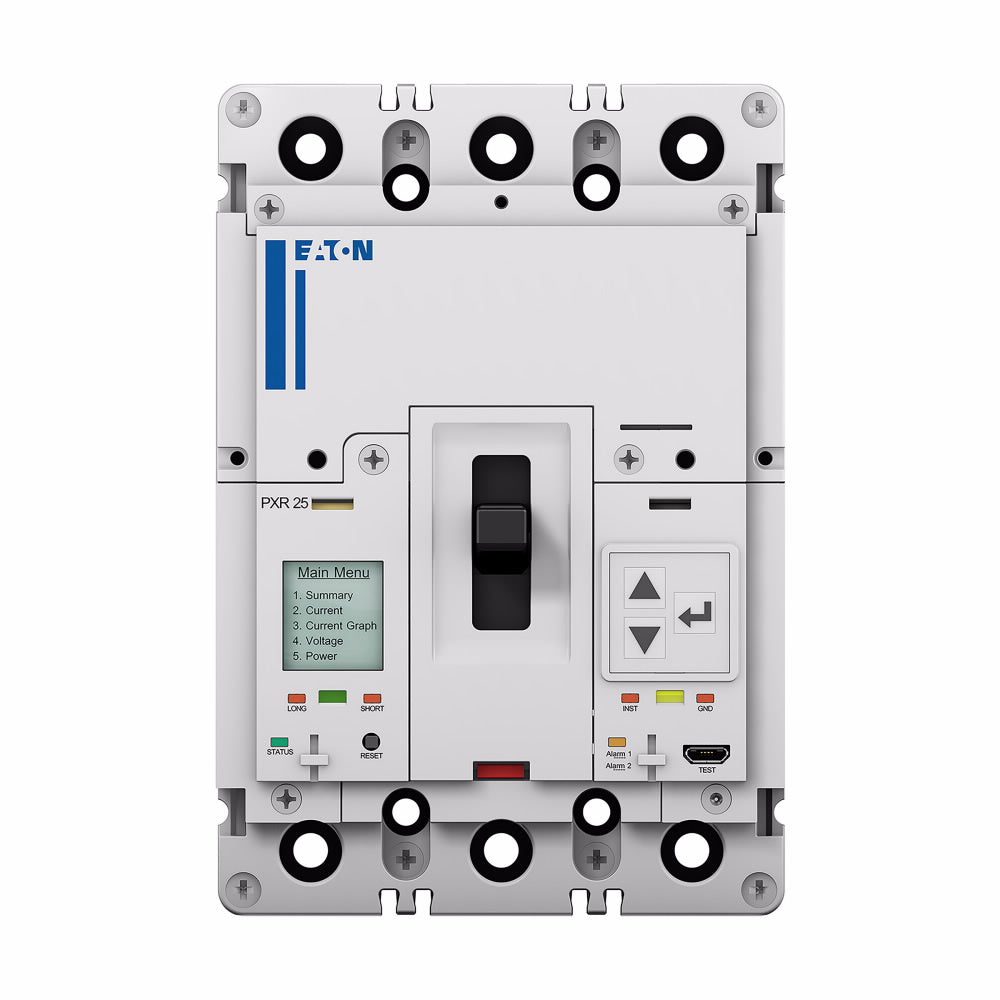

PDG23M0100P2ML is a Eaton Power Defense molded case circuit breaker designed for reliable power distribution protection.This globally rated circuit breaker features a 100 ampere rating, 600 VAC voltage capacity, and three poles. It is built on Frame 2 with a PXR25 LSI trip unit offering advanced protection including long-time, short-time, and instantaneous trip functions with Modbus RTU and relay communications. The breaker has a high interrupt rating of 65 kA at 480 V and 25 kA at 600 V, suitable for demanding industrial applications.

Key Specifications
• Amperage: 100 A
• Voltage: 600 VAC
• Poles: 3
• Frame: 2
• Interrupt Rating: 65 kA at 480 V, 25 kA at 600 V
• Trip Unit: PXR25 LSI with Modbus RTU and relays
• Mounting Type: Molded Case
• Series: Power Defense
• Certifications: Globally Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG23M0100P2ML
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State



Product Data

• UPC : 786679952887
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
