Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0100MSAJ

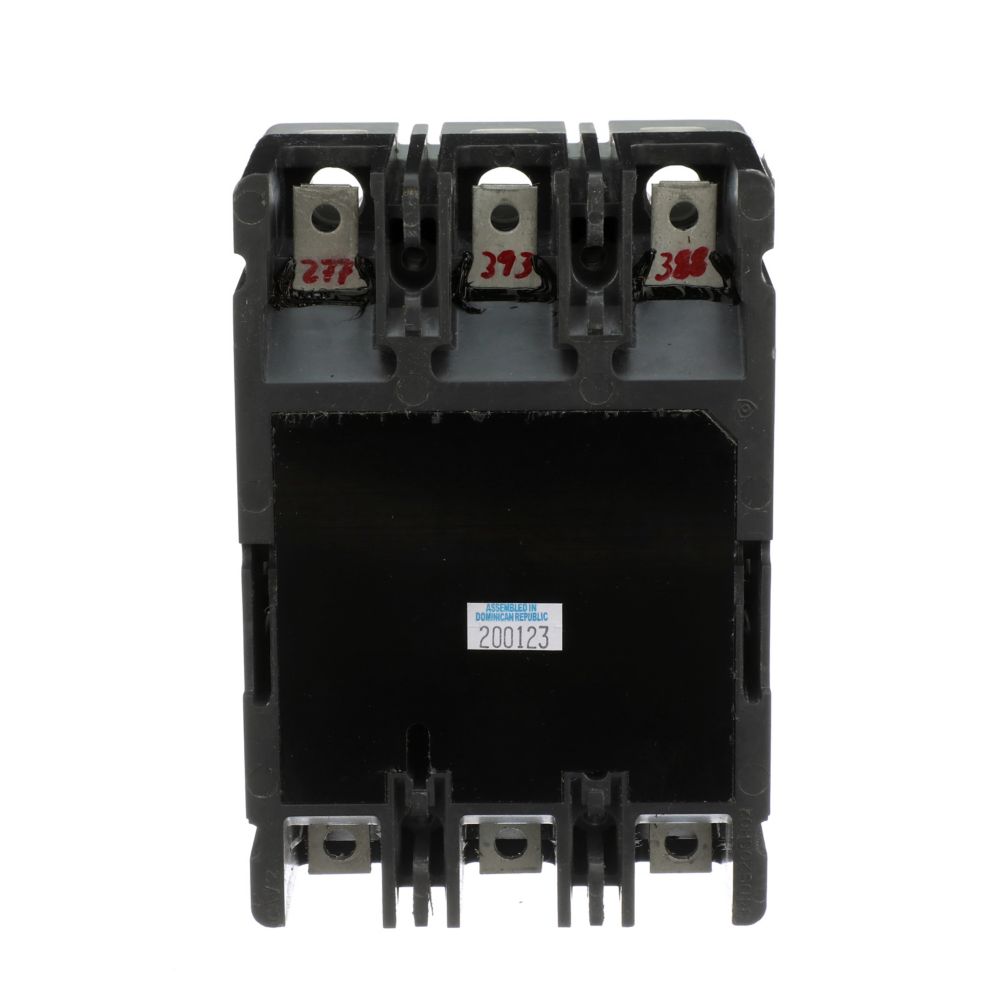

PDG23M0100MSAJ is a 100 Amp, three pole motor circuit protector from Eaton's Power Defense series designed for reliable motor protection.This Frame 2 molded case circuit breaker features a thermomagnetic trip unit with a 65 kA interrupt rating at 480 VAC and is rated for 600 VAC operation. It offers adjustable instantaneous trip settings and global certification standards, making it suitable for various industrial applications.
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: 2 (PDG2 Global)
- Interrupt Rating: 65 kA at 480 VAC
- Trip Unit: Thermomagnetic, adjustable instantaneous
- Mounting Type: Molded case circuit breaker
- Certifications: Globally rated
- Series: Power Defense (PDG)
- Application: Motor circuit protection
Specifications
- Part Number: PDG23M0100MSAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Motor circuit protector
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- AIC rating : 65kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679218006
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 515
