Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0100E3RL

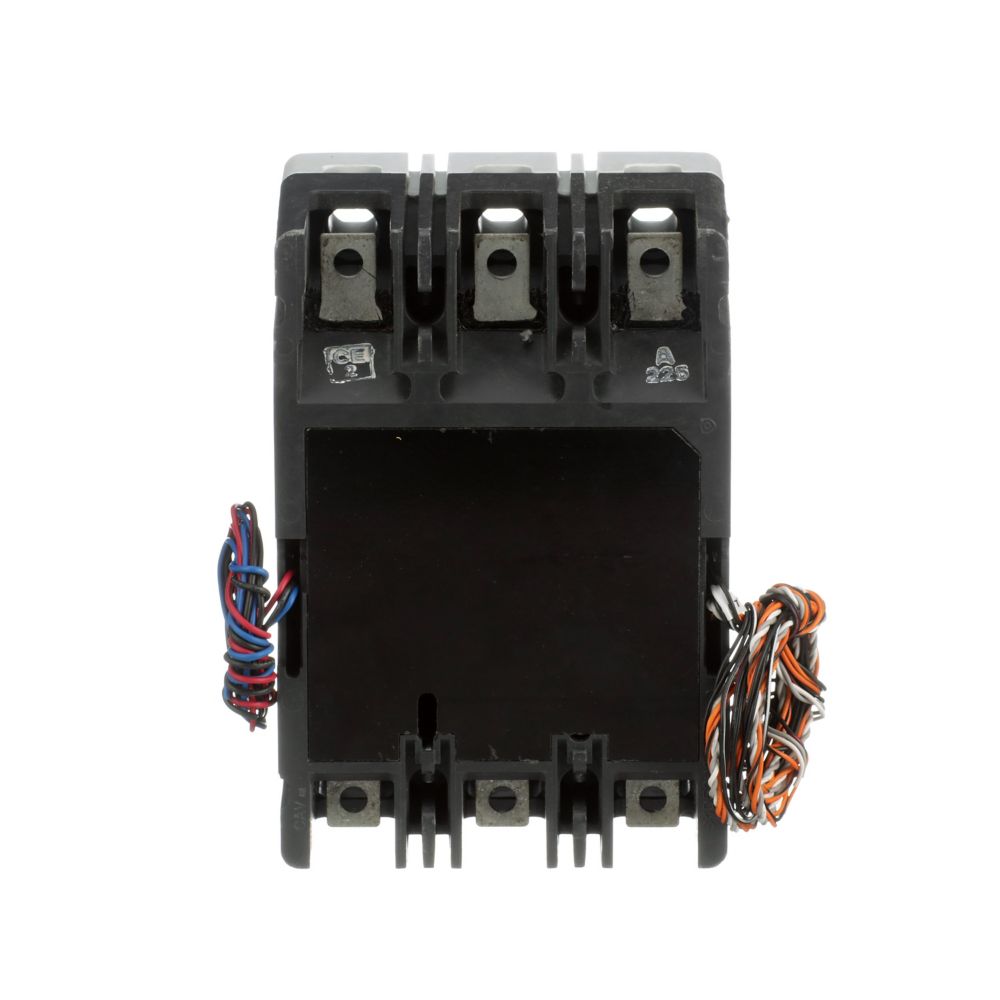

The Eaton PDG23M0100E3RL is a Molded Case Circuit Breaker. This type circuit breaker is a member of The Power Defense family. The PDG23M0100E3RL is a 3 pole, 600 Volt, 100 amp rated circuit breaker, with an AIC rating of 65kA@480V. The PDG23M0100E3RL is manufactured by Eaton||Cutler Hammer. The PDG23M0100E3RL uses a Bolt-On connection. Includes Solid State protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: PDG23M0100E3RL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 786679807149
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
