Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0100E3RJ

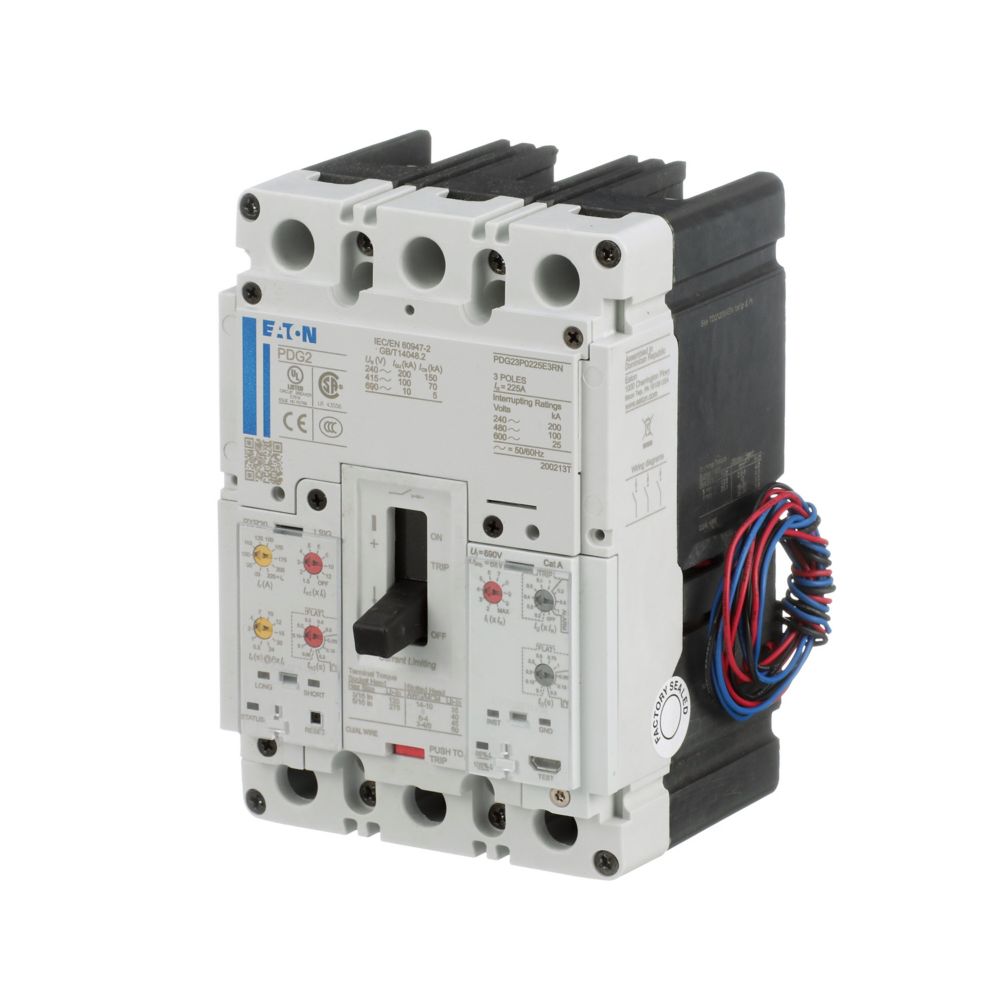

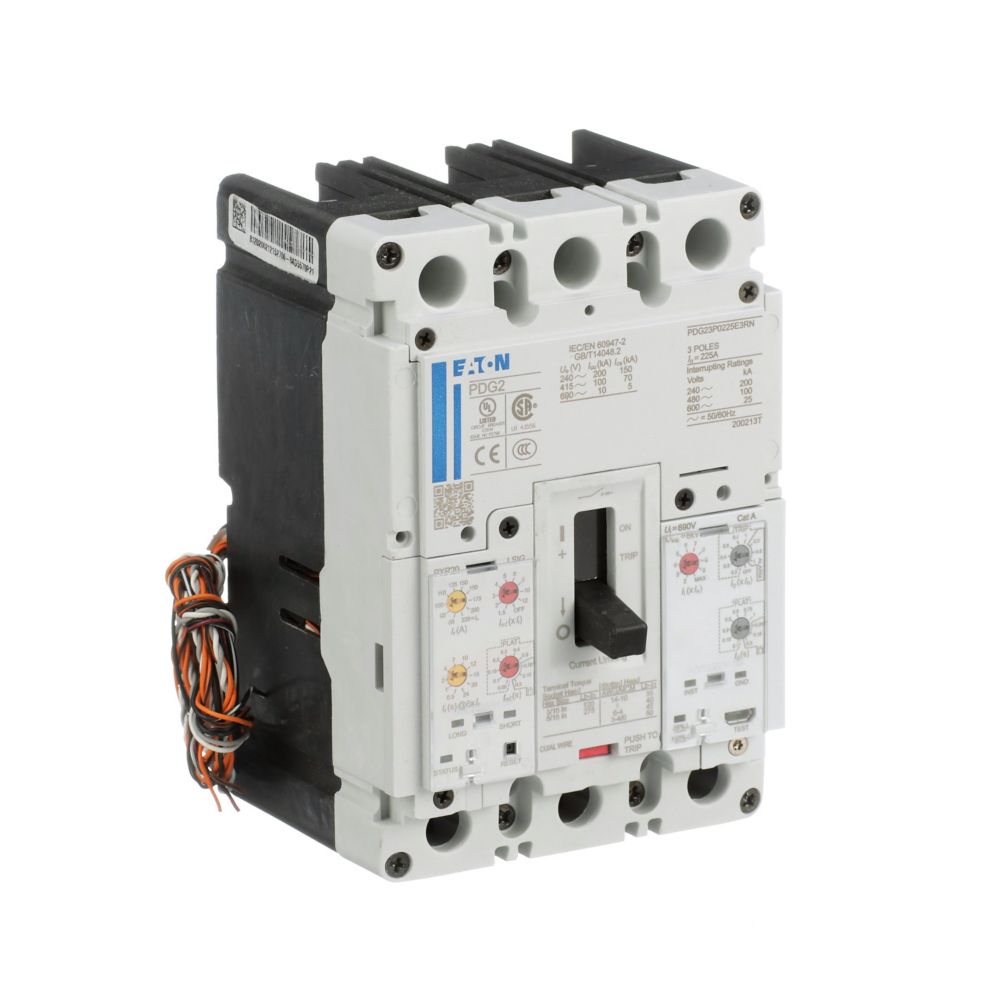

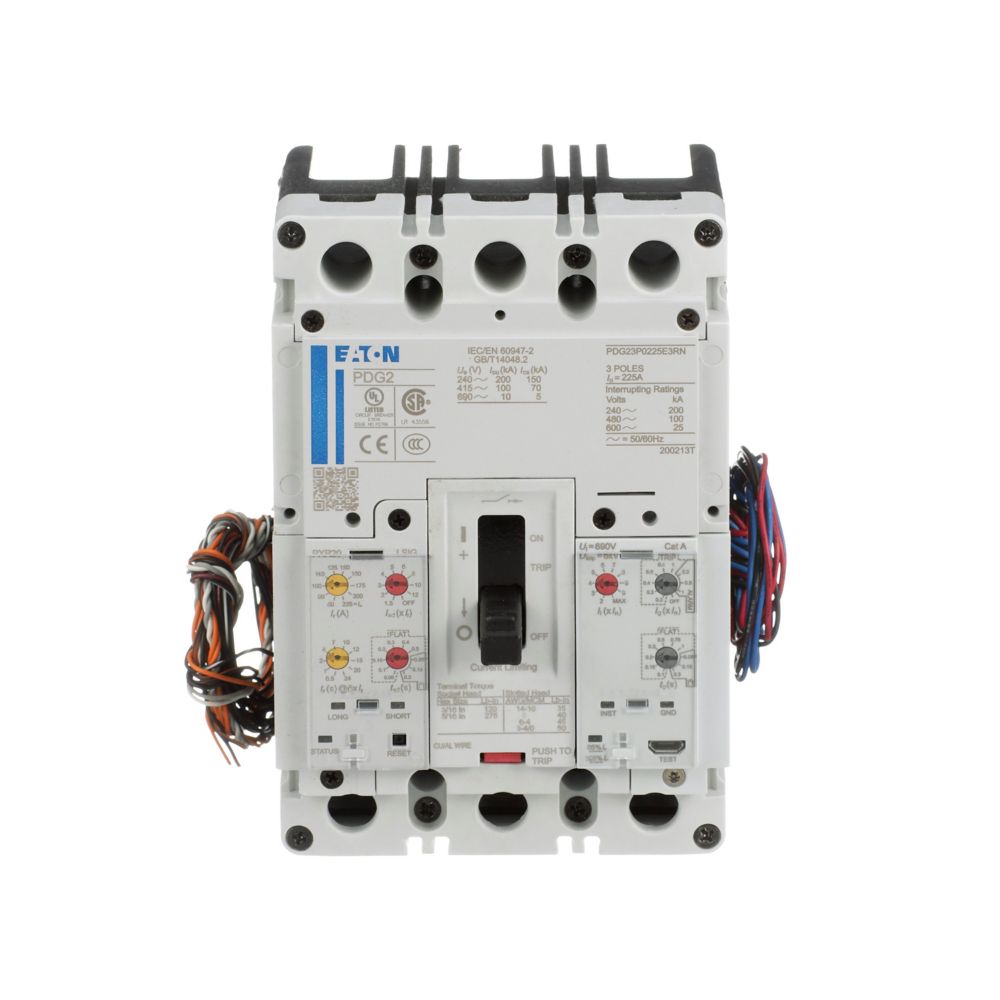

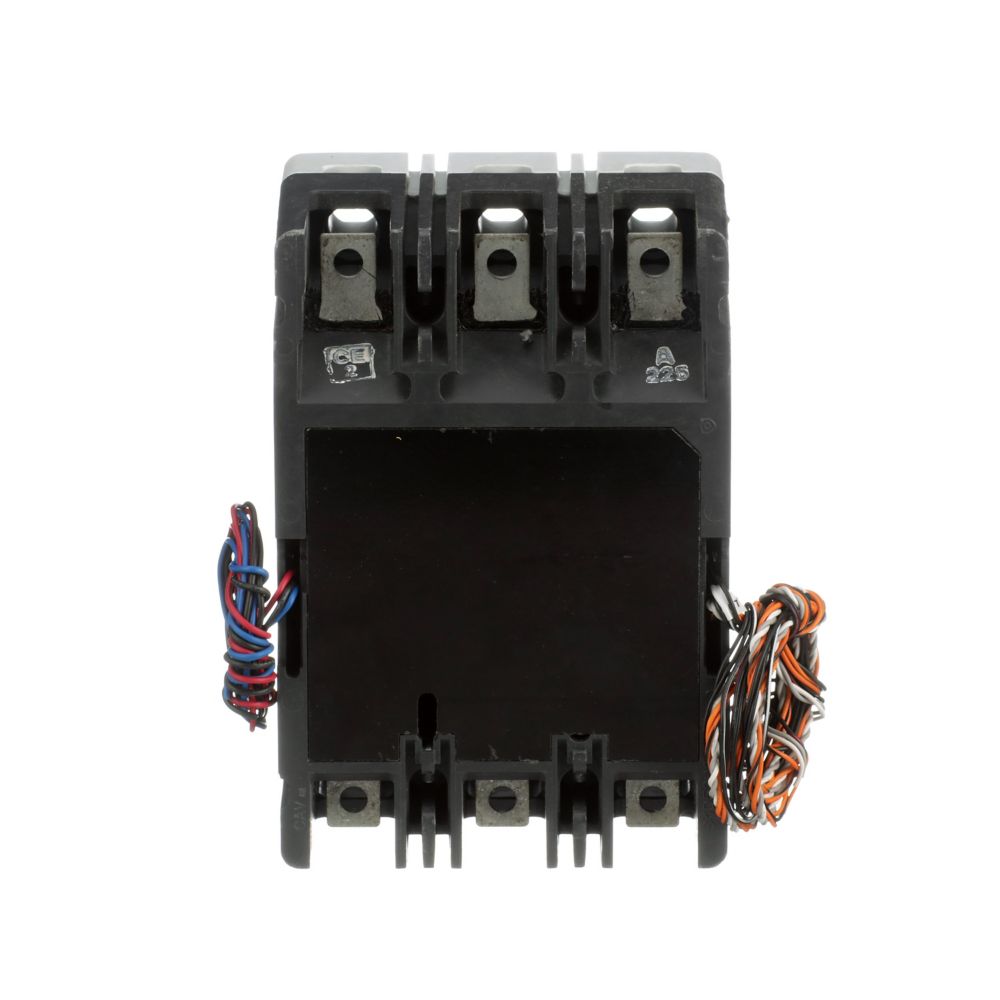

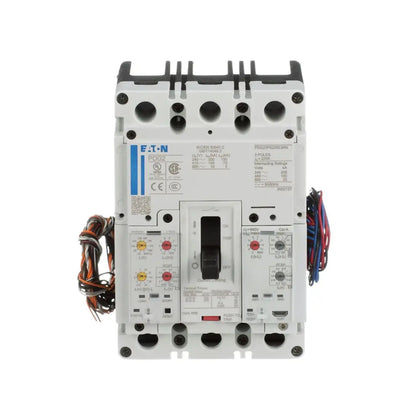

PDG23M0100E3RJ is a 100 Amp, 3 Pole Molded Case Circuit Breaker from Eaton Cutler Hammer designed for 600 VAC applications.This circuit breaker features a Frame 2 size with a high interrupt rating of 65kA at 480 VAC, ensuring reliable protection in demanding power distribution systems. It includes standard line and load lugs and is part of the Power Defense PDG2 series, offering advanced trip unit options such as the PXR20 LSIG with relays for enhanced motor and circuit protection. The breaker is UL listed and suitable for global applications.
- Amperage: 100 Amp
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Size: 2
- Interrupt Rating: 65 kAIC at 480 VAC
- Series: Power Defense PDG2
- Trip Unit: PXR20 LSIG + Relays
- Mounting Type: Molded Case
- Certifications: UL Listed
- Standard Line and Load Lugs
Specifications
- Part Number: PDG23M0100E3RJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 78667931651
- GTIN : 00786679316511
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
