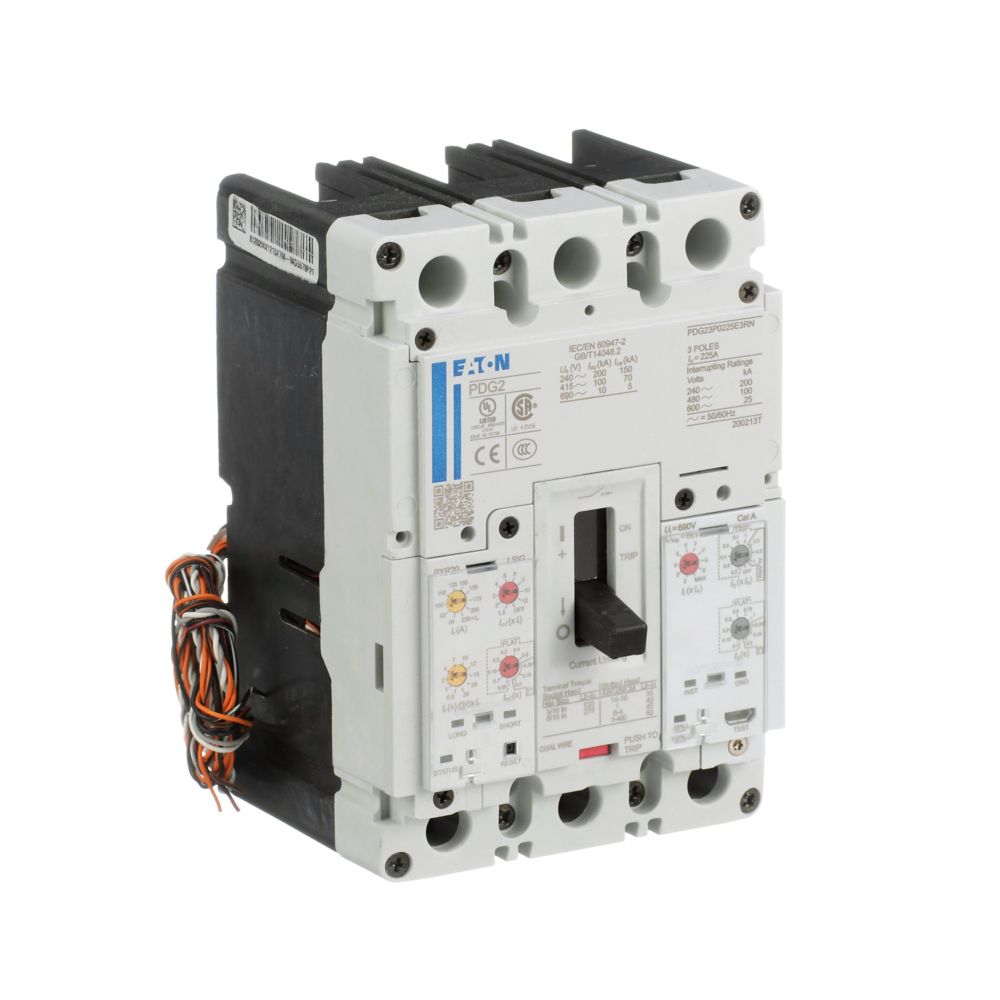

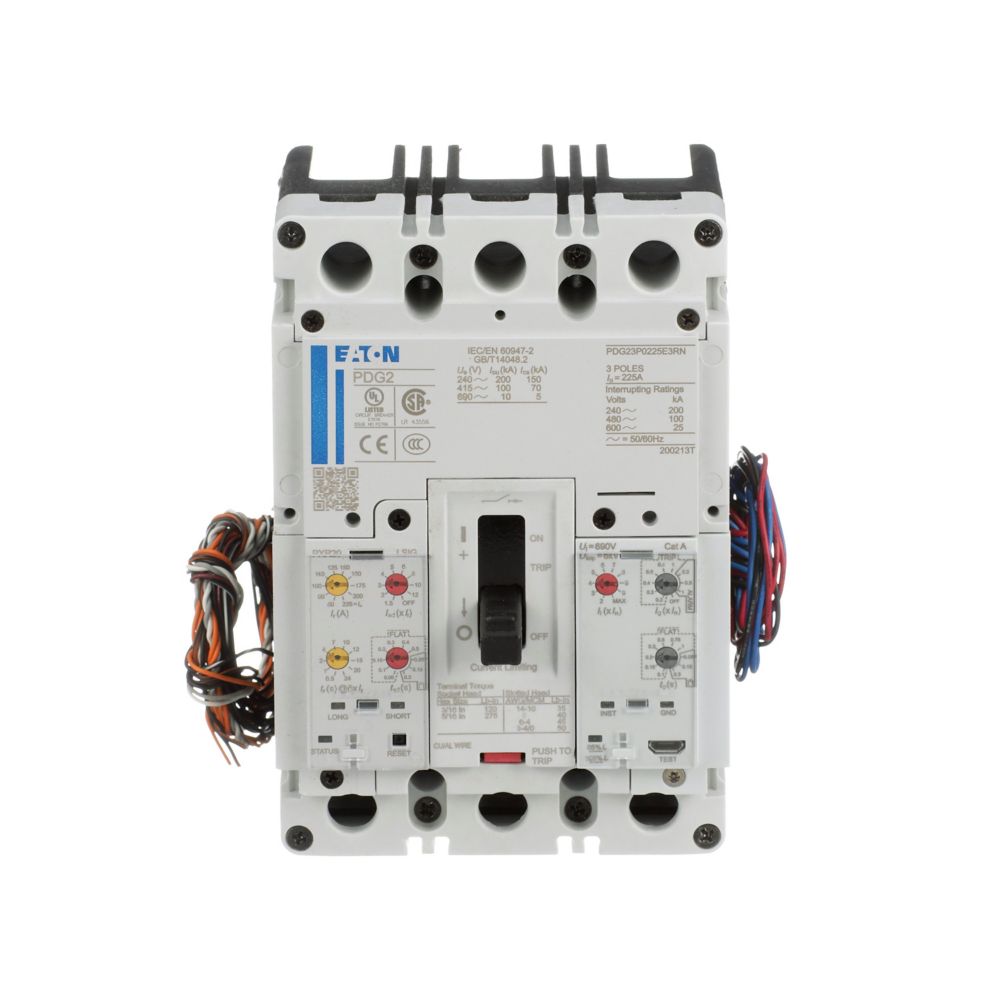

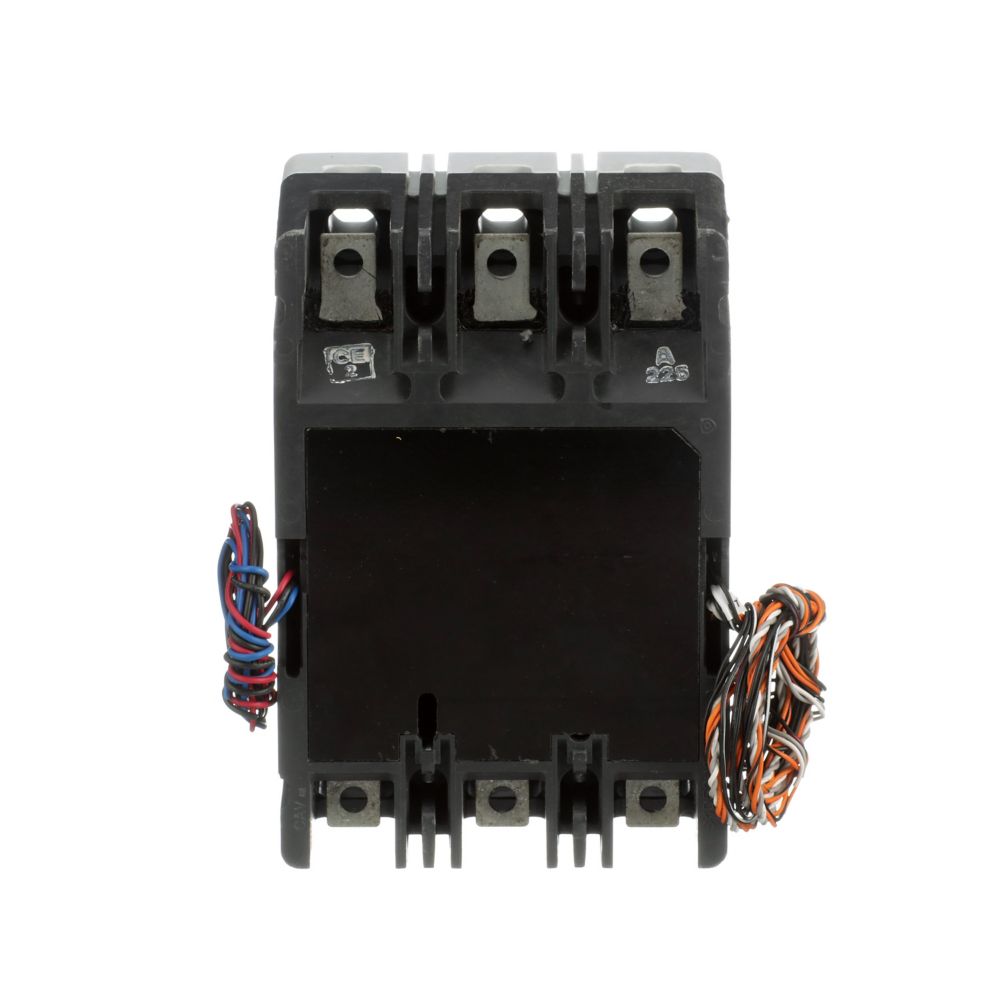

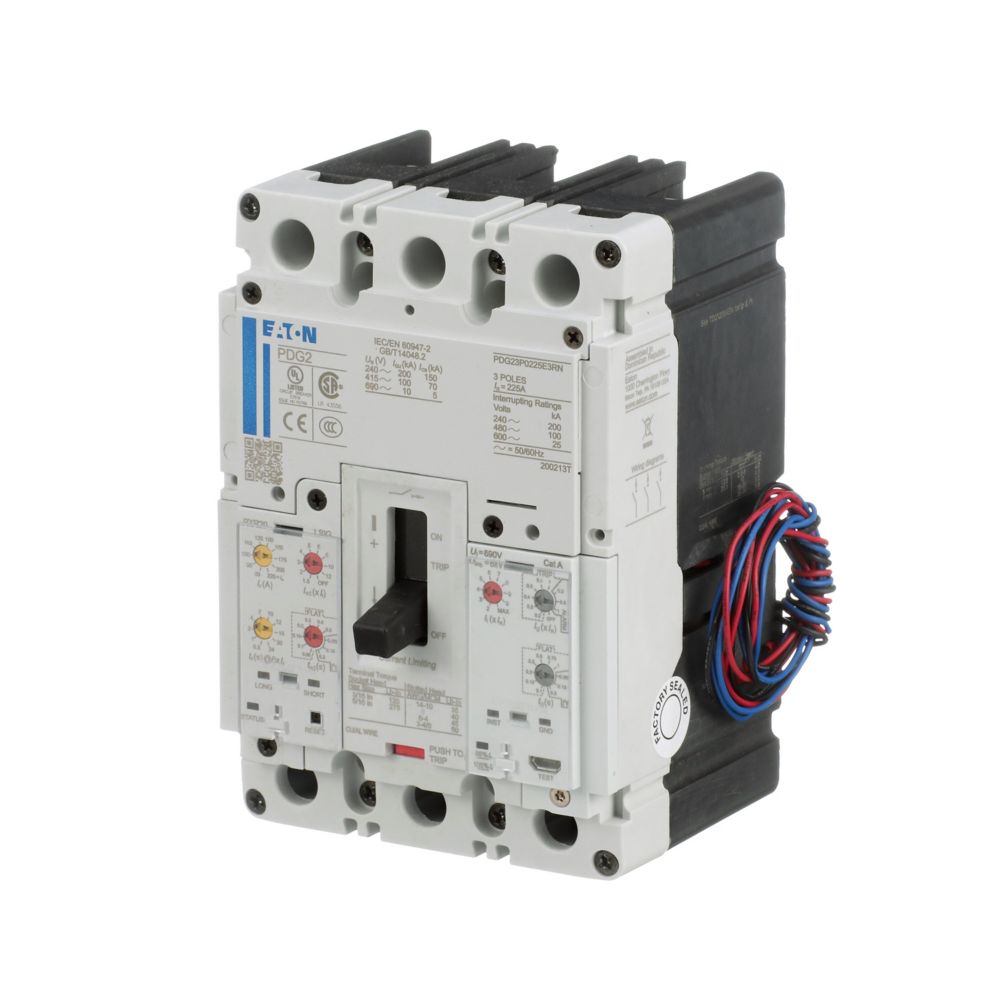

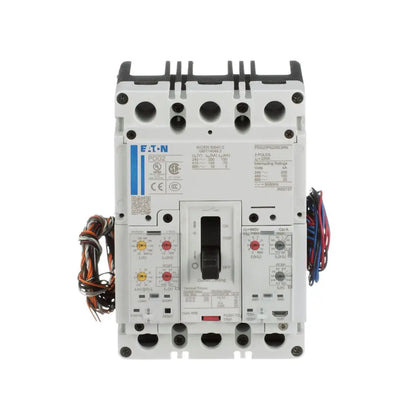

PDG23M0100E3MJ - Eaton||Cutler Hammer Power Defense 100A 600V 3 Pole Molded Case Circuit Breaker, Frame 2, 65kA Interrupt, PXR 20 LSIG Trip, Modbus RTU

PDG23M0100E3MJ

PDG23M0100E3MJ is a globally rated molded case circuit breaker manufactured by Eaton||Cutler Hammer, designed for reliable power distribution and protection in commercial and industrial applications.

This complete breaker features a 100 amp rating, 600 VAC voltage, three poles, and a 65 kA interrupting capacity at 480V. It is part of the Power Defense series, Frame 2, and includes a PXR 20 LSIG electronic trip unit with advanced protection settings. The breaker supports Modbus RTU communication for integration into modern control systems and is suitable for panelboard or switchboard mounting.

Key Specifications
• Manufacturer: Eaton||Cutler Hammer
• Amperage: 100A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Panelboard/Switchboard
• Interrupt Rating: 65kA at 480V
• Series/Frame: Power Defense, Frame 2
• Trip Unit: PXR 20 LSIG (Long, Short, Instantaneous, Ground Fault)
• Communication: Modbus RTU
• Certifications: Globally rated, 100% UL listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0100E3MJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground fault Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679274569
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 514
