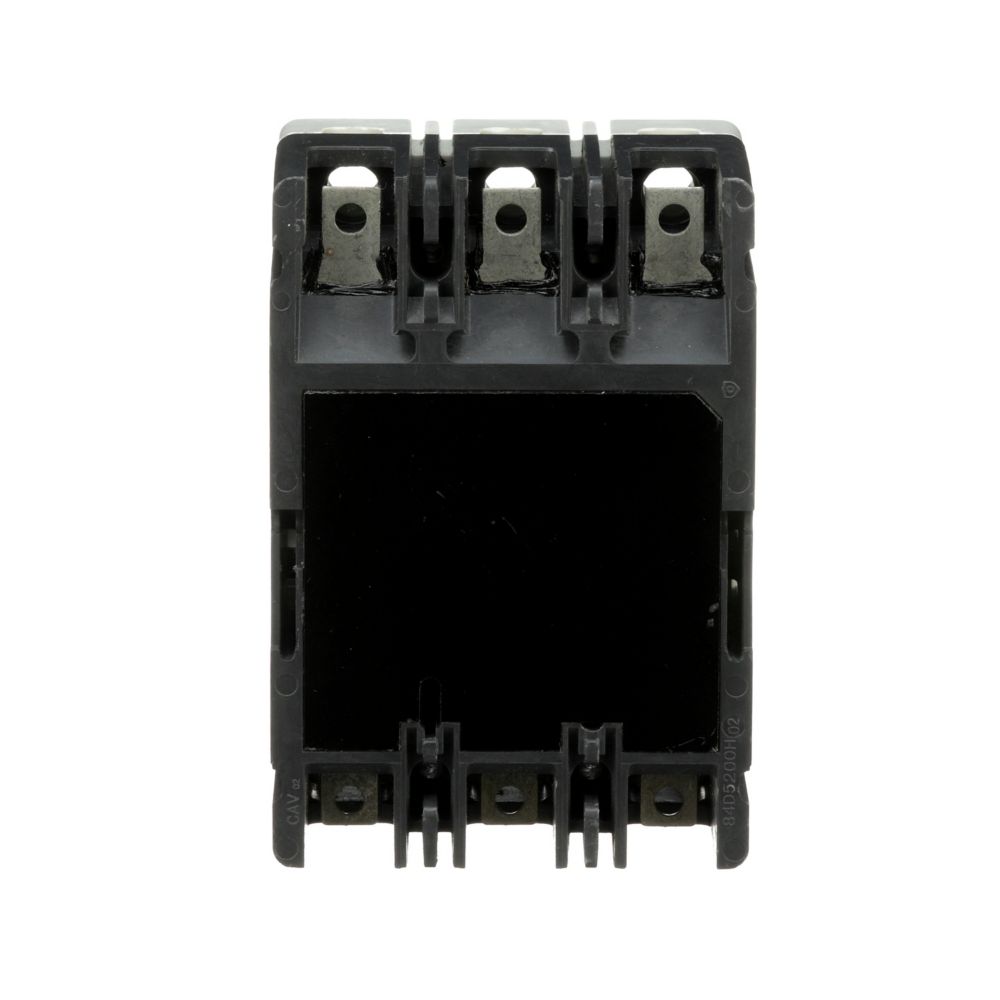

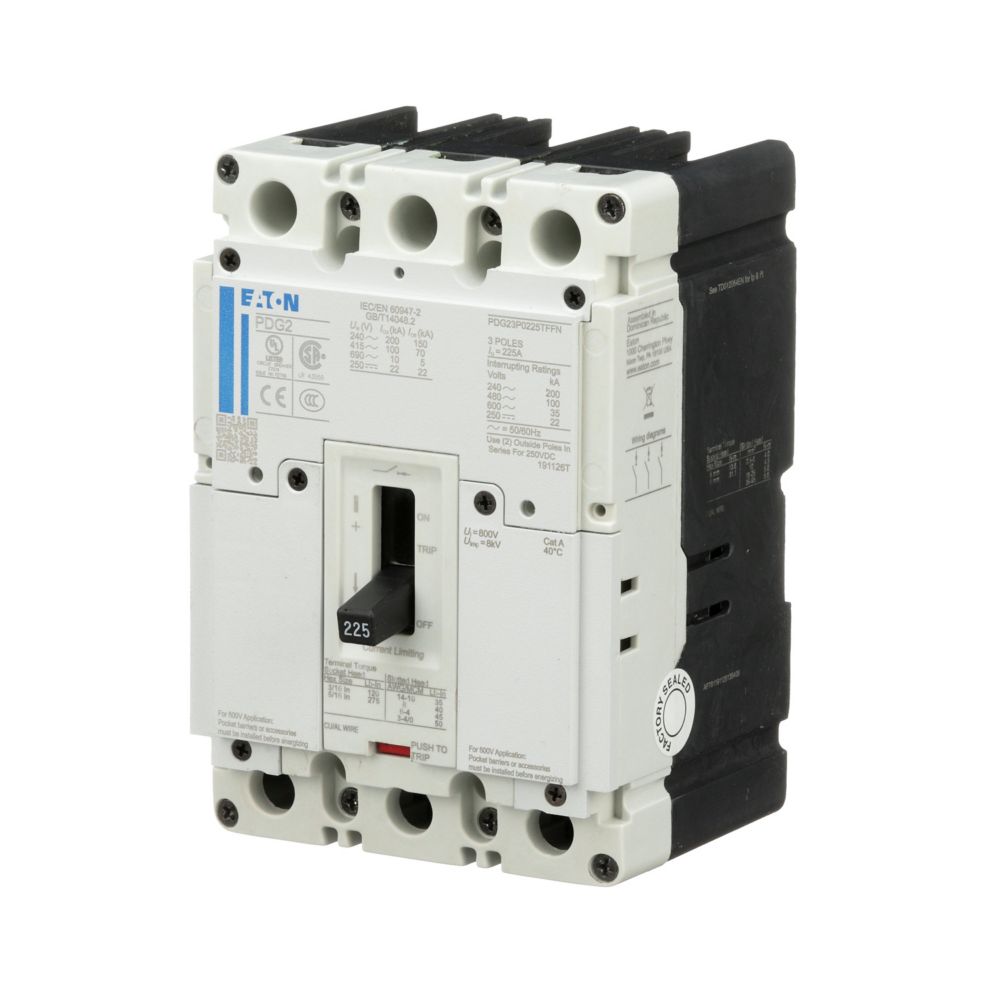

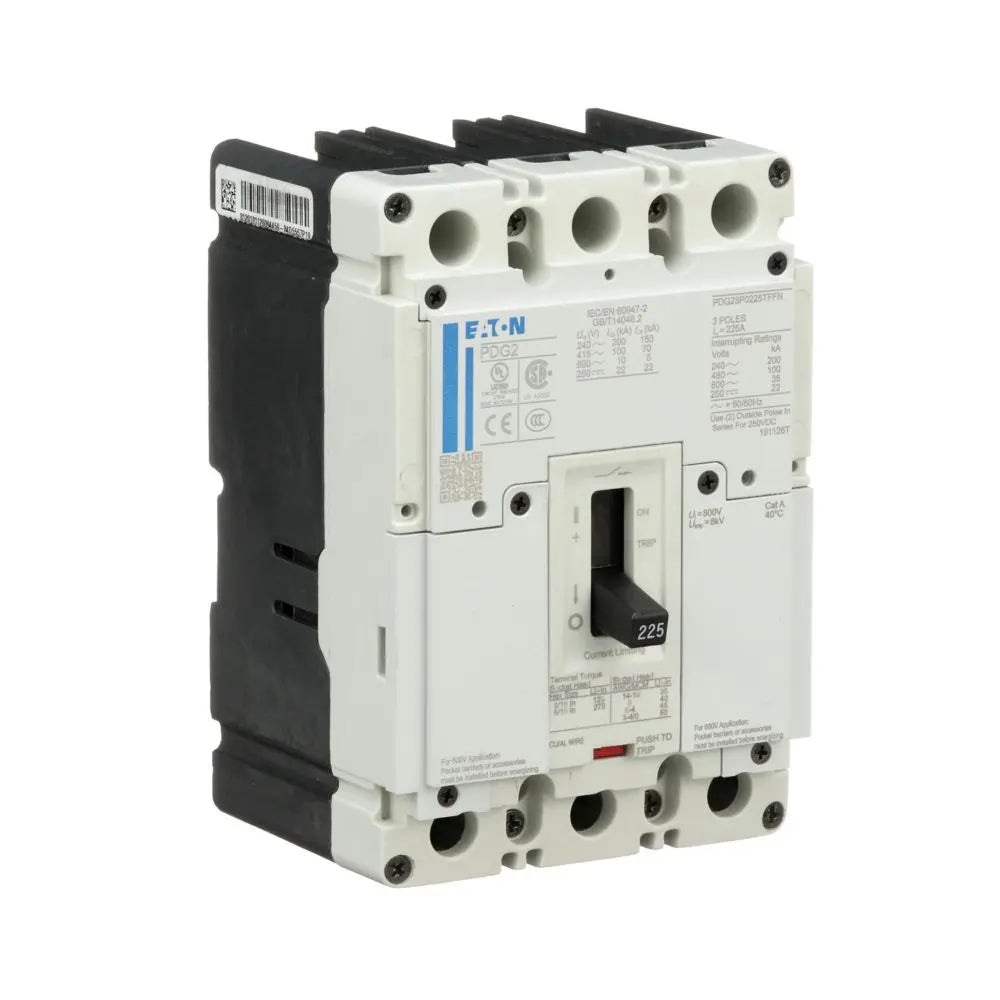

PDG23M0090TFFJ - Eaton 90 Amp 600V 3 Pole Molded Case Circuit Breaker, Frame 2, 65kA Interrupt, Thermal Magnetic Trip, Feed-Thru, Globally Rated

PDG23M0090TFFJ

PDG23M0090TFFJ is a three-pole, 90 amp, 600V molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in demanding electrical applications.

This Eaton Power Defense breaker features a thermal magnetic trip unit, feed-thru connection, and is globally rated for compliance with UL, CSA, IEC, and CCC standards. It is part of the Frame 2 series and offers a high interrupting capacity of 65kA at 480V, making it suitable for a wide range of commercial and industrial uses.

Key Specifications
• Part Number: PDG23M0090TFFJ
• Manufacturer: Eaton
• Amperage: 90A
• Voltage Rating: 600V AC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA at 480V
• Series/Frame: Power Defense, Frame 2
• Trip Unit: Thermal Magnetic (Fixed-Fixed)
• Certifications: UL, CSA, IEC, CCC
• Connection: Standard line and load
• Dimensions: 3.5" x 6" x 2.75"
• Weight: 4.01 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23M0090TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679280317
• GTIN : 00786679000000
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 510
