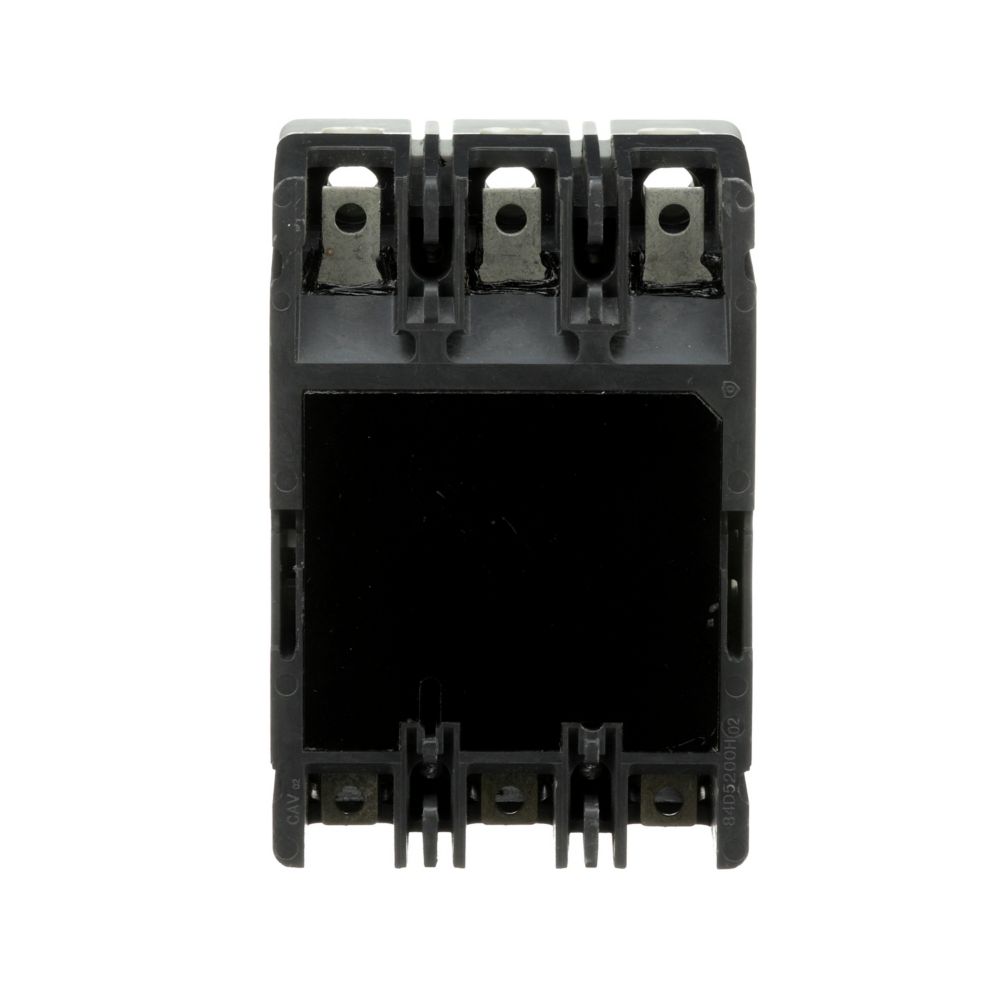

PDG23M0070TFFJ - Eaton 70 Amp 600 VAC 3 Pole Power Defense Molded Case Circuit Breaker Frame 2 Thermal Magnetic

PDG23M0070TFFJ

This circuit breaker features a Frame 2 design with a 65 kA interrupt rating at 480V and 25 kA at 600V. It includes fixed thermal and magnetic trip units (T298 trip type) and supports feed-thru connection. The breaker is globally rated and certified to UL, CSA, IEC, and CCC standards, ensuring broad compliance and safety.

Key Specifications
• Amperage: 70 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 2 (Power Defense)
• Interrupt Rating: 65 kA at 480V, 25 kA at 600V
• Trip Unit: Thermal Magnetic (Fixed)
• Connection Type: Feed-Thru
• Certifications: UL, CSA, IEC, CCC
• Dimensions (HxWxD): 3.5 x 6 x 2.75 inches
• Weight: 4.01 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: PDG23M0070TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679218518
• GTIN : 00786679218518
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.05615906
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 506
