Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23M0015MSAJ

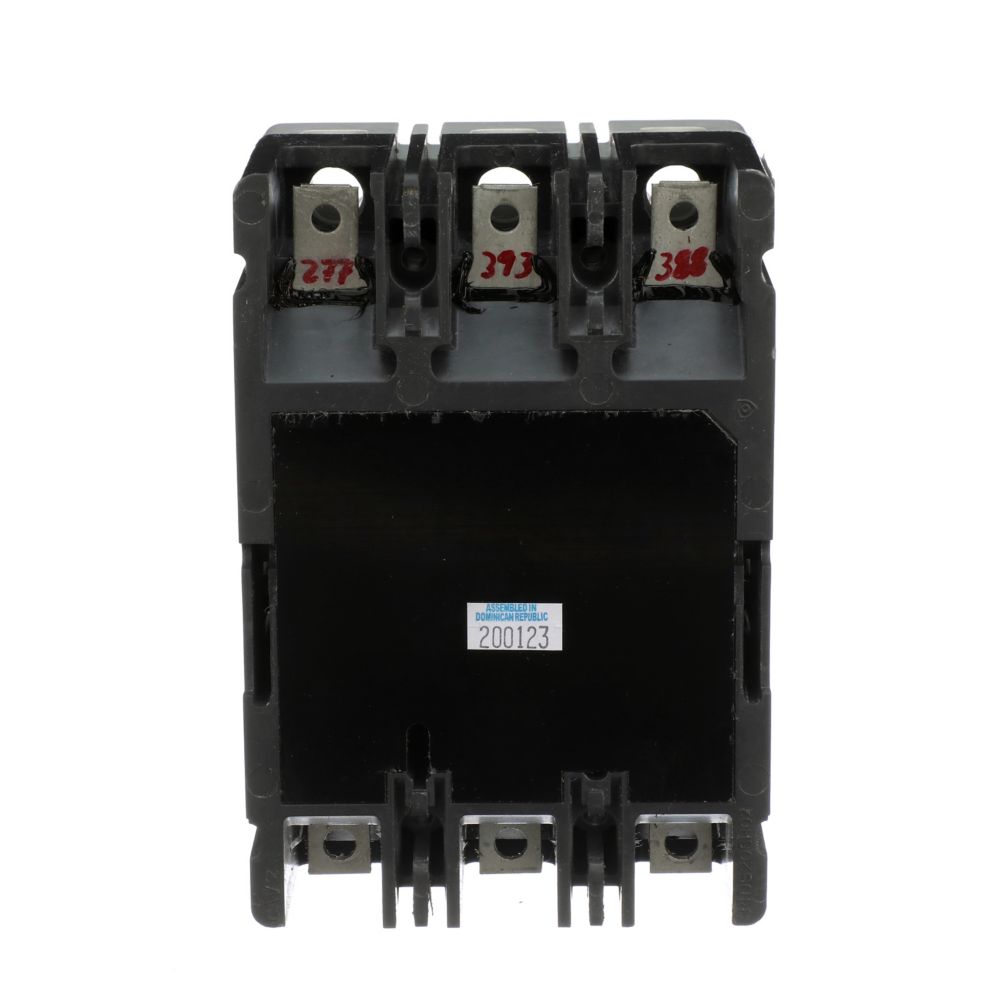

PDG23M0015MSAJ is an Eaton Power Defense motor circuit protector designed for reliable motor protection in industrial applications.This molded case circuit breaker features a 15 amp rating, 600 VAC voltage rating, and three poles. It belongs to Eaton's PD2 Global series with Frame 2 size and offers a thermomagnetic trip unit with adjustable instantaneous settings. The device has a high interrupt rating of 65 kA at 480 V, ensuring robust short-circuit protection. It is globally rated and certified to UL, CSA, IEC, and CCC standards.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame: 2
- Interrupt Rating: 65 kA at 480 V
- Trip Unit: Thermomagnetic, adjustable instantaneous
- Mounting Type: Molded Case Circuit Breaker
- Certifications: UL, CSA, IEC, CCC
- Series: Eaton Power Defense (PD2 Global)
- Part Number: PDG23M0015MSAJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Motor circuit protector
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 15
- Phase : 3
- AIC rating : 65kA@480V
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679254783
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 499
