Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

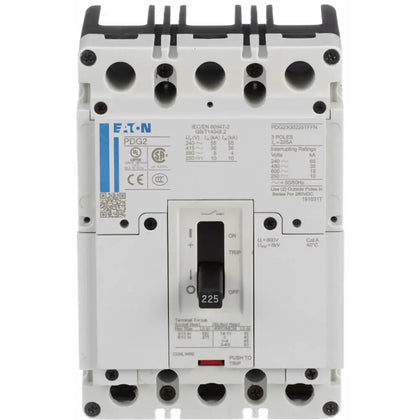

PDG23F0225TFFJ
PDG23F0225TFFJ is a 3 pole, 225 amp molded case circuit breaker from Eaton's Power Defense series designed for reliable circuit protection.This circuit breaker features a 600 VAC and 250 VDC voltage rating, Frame 2 construction, and a thermal-magnetic (T-M) fixed-fixed trip unit. It has a 25 kA interrupt rating at 480 VAC, suitable for panel mounting applications requiring robust protection.
- Amperage: 225 A
- Voltage: 600 VAC, 250 VDC
- Poles: 3
- Frame: 2
- Interrupt Rating: 25 kA at 480 VAC
- Trip Unit: Thermal-Magnetic (Fixed-Fixed)
- Mounting Type: Panel Mount
- Series: Power Defense
- Certifications: Eaton standard certifications
Specifications
- Part Number: PDG23F0225TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679221471
- GTIN : 786679221471
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 4.0586 lb
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
