PDG23F0090TFFJ - Cutler Hammer 90A 600V 3 Pole Power Defense Circuit Breaker 25kA Frame 2 Thermal Magnetic

PDG23F0090TFFJ

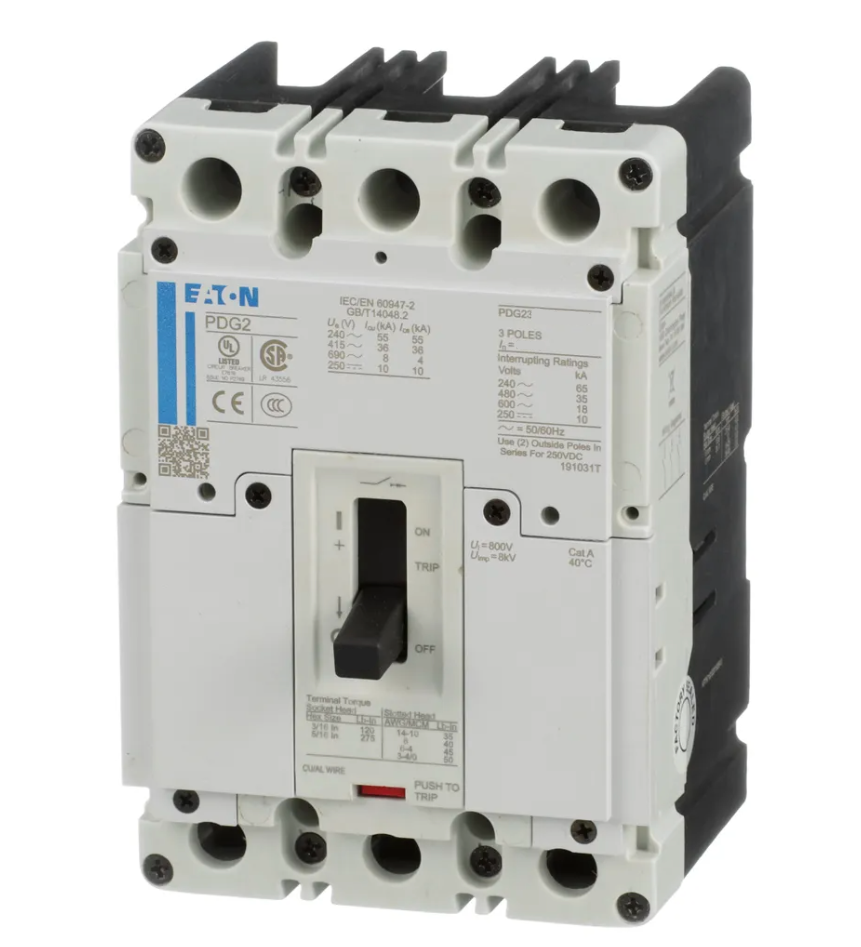

PDG23F0090TFFJ is a Cutler Hammer Power Defense molded case circuit breaker rated for 90 amps and 600 volts with 3 poles and a 25kA interrupt rating.

This circuit breaker features a Frame 2 size with thermal-magnetic trip unit technology, providing reliable protection for electrical circuits. It is designed for panel mounting and includes standard line and load lugs for easy installation. The breaker is UL listed and CSA certified, ensuring compliance with safety standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 90A
• Voltage Rating: 600 VAC
• Poles: 3
• Interrupt Rating: 25kA at 480 VAC
• Frame Size: 2
• Trip Unit: Thermal Magnetic
• Mounting Type: Panel Mount
• Standard Line and Load Lugs
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23F0090TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679213445
• GTIN : 00786679213445
• Country of Origin : Dominican Republic
• Dimensions : 7.9 in x 6 in x 6.5 in (Length/Depth x Height x Width)
• Weight : 5 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
