PDG23F0070TFFJ - Cutler Hammer 3 Pole 70 Amp 600VAC Power Defense Molded Case Circuit Breaker, Frame 2, Thermal Magnetic Trip, 25kA Interrupt, Feed-Thru, UL/CSA/IEC/CCC

PDG23F0070TFFJ

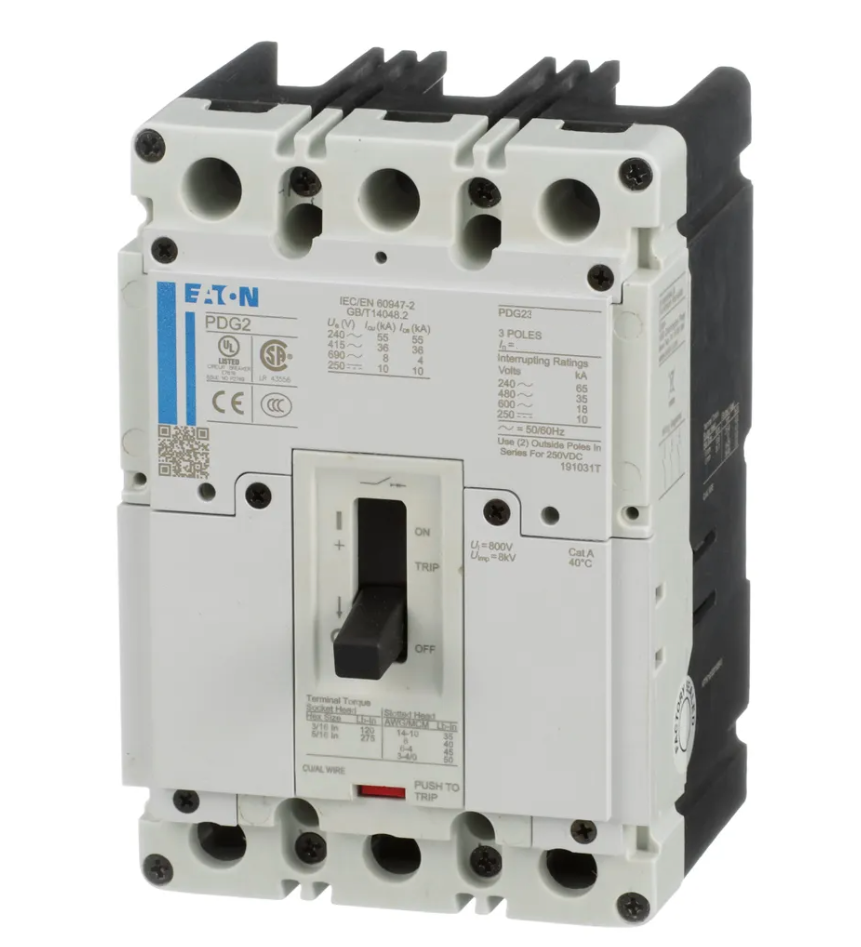

PDG23F0070TFFJ is a Cutler Hammer (Eaton) Power Defense molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This three-pole breaker features a 70 Amp rating, 600VAC maximum voltage, and a 25kA interrupt rating at 480VAC. It is part of the Power Defense series, Frame 2, with a thermal-magnetic trip unit for reliable overcurrent and short-circuit protection. The breaker is globally rated and certified to UL, CSA, IEC, and CCC standards, ensuring compliance for a wide range of installations. Connection is via standard feed-thru lugs for easy integration into your power distribution system.

Key Specifications
• Part Number: PDG23F0070TFFJ
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 70A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Fixed
• Interrupt Rating: 25kA @ 480VAC
• Series/Frame: Power Defense, Frame 2
• Trip Unit: Thermal Magnetic (LI - Long-time and Instantaneous)
• Certifications: UL, CSA, IEC, CCC
• Connection: Feed-Thru
• Dimensions: 8" x 6" x 6.4"
• Weight: 4.93 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23F0070TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679243961
• GTIN : 00786679243961
• Country of Origin : Dominican Republic
• Dimensions : 203.2 mm x 6.25 mm x 152.4 mm (Length/Depth x Height x Width)
• Weight : 4.05615904 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
