Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG23F0060TFFJ

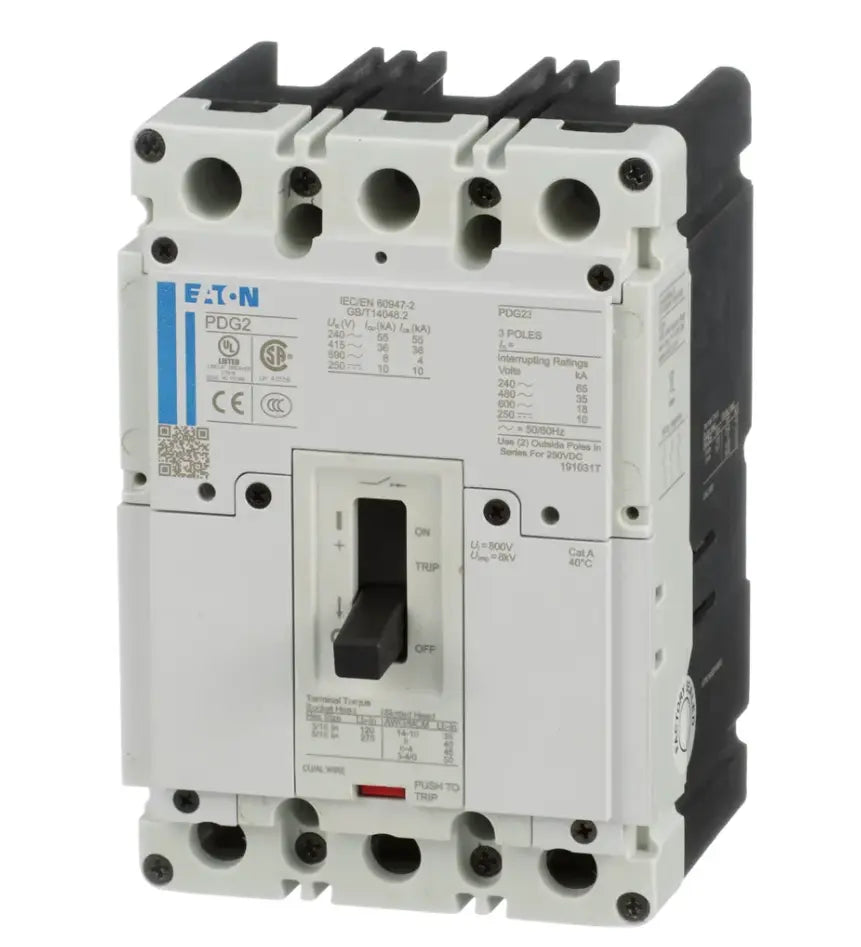

PDG23F0060TFFJ is a Cutler Hammer (Eaton) Power Defense molded case circuit breaker designed for reliable protection in commercial and industrial applications.
This 3-pole, 60 amp, 600VAC circuit breaker features a thermal magnetic trip unit, feed-thru connection, and a robust PDG frame. It is engineered for high performance with a 25kA interrupt rating at 480VAC, offering both long-time and instantaneous overcurrent protection. Suitable for panelboard and switchboard mounting, this breaker is part of the globally recognized Power Defense series, known for durability and compliance with industry standards.
-
Key Specifications
- Part Number: PDG23F0060TFFJ
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 60A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Panelboard/Switchboard (Molded Case)
- Interrupt Rating: 25kA at 480VAC
- Series/Frame: Power Defense, PDG Frame
- Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
- Connection Type: Feed-Thru
- Certifications: Globally rated, meets industry standards
- Protection: Thermal and magnetic overcurrent
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PDG23F0060TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679236178
- GTIN : 00786679236178
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 104.6 mm (Length/Depth x Height x Width)
- Weight : 5.00697937 lb
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
