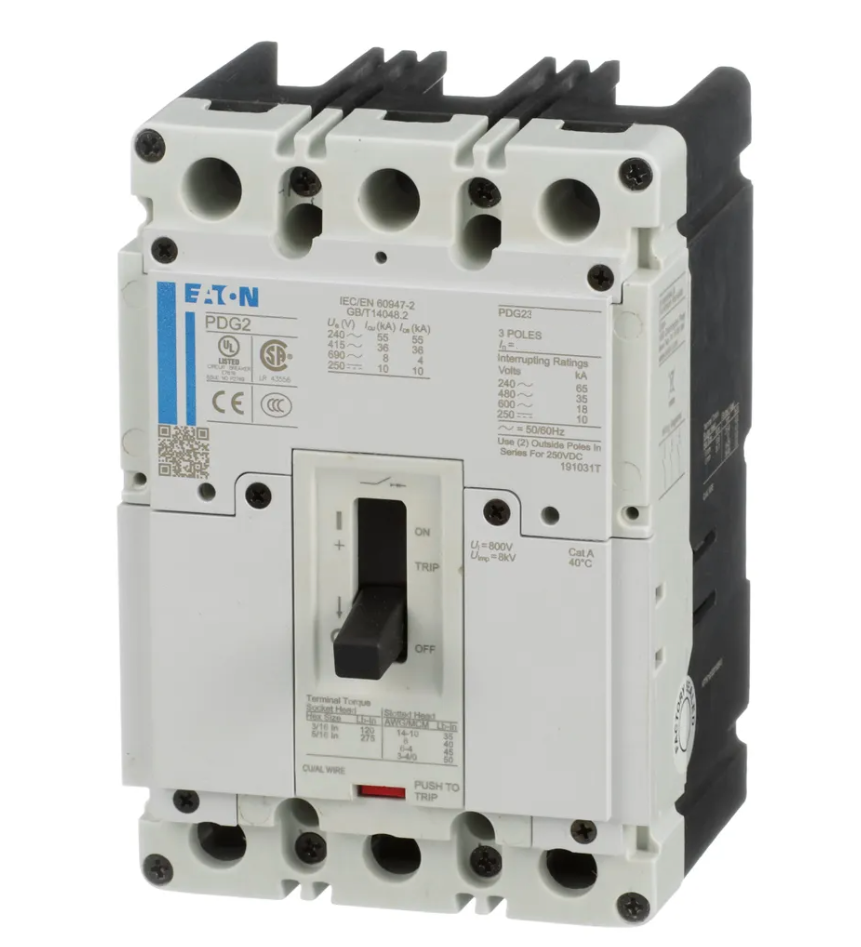

PDG23F0040TFFJ - Eaton 40 Amp 600VAC 3 Pole Molded Case Circuit Breaker Frame 2 Thermal Magnetic

PDG23F0040TFFJ

PDG23F0040TFFJ is a 3 pole molded case circuit breaker from Eaton designed for 40 amp current and 600VAC voltage applications.This Eaton Power Defense series breaker features a Frame 2 design with thermal magnetic trip unit providing reliable long-time and instantaneous protection. It has a 25kA interrupt rating at 480VAC and supports feed-thru connection type. The breaker is globally rated and suitable for demanding industrial and commercial power distribution systems.

• Amperage: 40 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame: 2
• Trip Unit: Thermal Magnetic (Fixed-Fixed)
• Interrupt Rating: 25 kAIC at 480 VAC
• Connection Type: Feed-Thru
• Series: Power Defense (PDG)
• Mounting Type: Molded Case
• Certifications: Globally Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG23F0040TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 078667921334
• GTIN : 00786679213346
• Country of Origin : Dominican Republic
• Dimensions : 203.2 mm x 152.4 mm x 162.56 mm (Length/Depth x Height x Width)
• Weight : 4.9952 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
