PDG23F0020TFFJ - Cutler Hammer 20A 600VAC 3 Pole Power Defense Molded Case Circuit Breaker Frame 2

PDG23F0020TFFJ

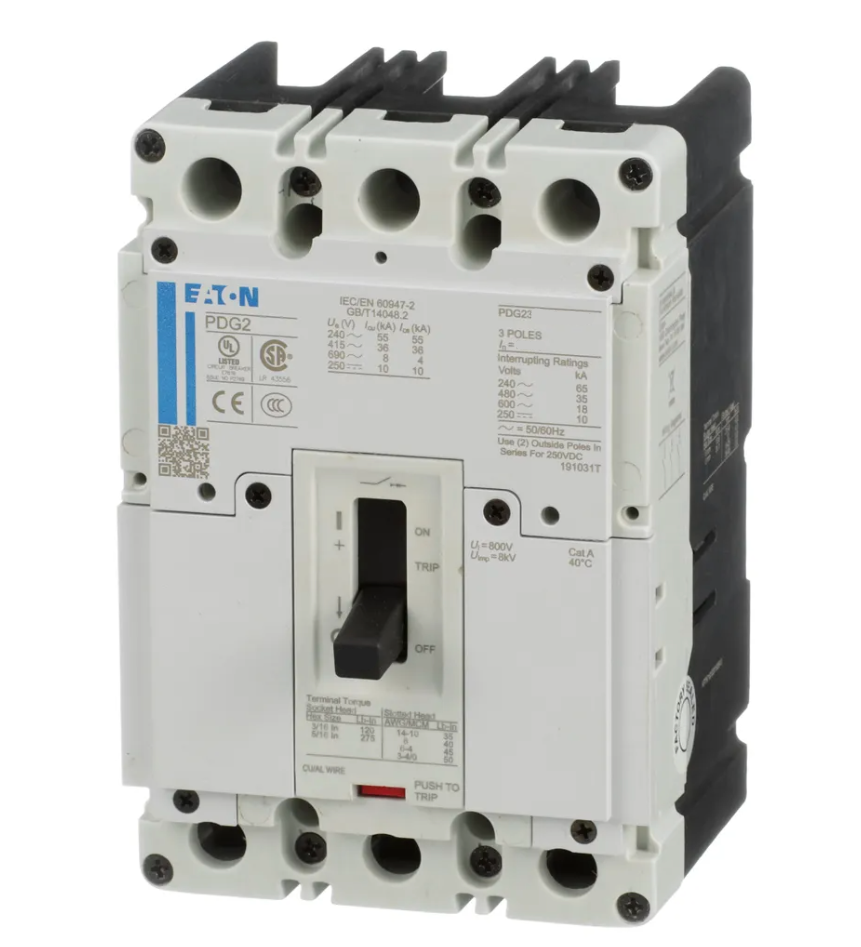

PDG23F0020TFFJ is a Cutler Hammer Power Defense molded case circuit breaker designed for reliable circuit protection.This 3 pole breaker features a 20 ampere rating and supports up to 600 VAC voltage. It is part of Eaton's Frame 2 series with a thermal magnetic trip unit (T-M) and fixed line/load connections (Fxd-Fxd). The breaker has a 25kA interrupt rating at 480 VAC and complies with UL 489, CSA, IEC 60947-2, and CCC certifications. It is RoHS compliant and suitable for global applications.

Key Specifications
• Amperage: 20 Amps
• Voltage Rating: 600 VAC
• Poles: 3
• Frame Type: 2 (Power Defense)
• Trip Unit: Thermal Magnetic (T-M)
• Interrupt Rating: 25kA at 480 VAC
• Connection Type: Fixed Line and Load (Fxd-Fxd)
• Certifications: UL 489, CSA, IEC 60947-2, CCC
• RoHS Compliant
• Mounting Type: Molded Case
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PDG23F0020TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679282489
• GTIN : 00786679282489
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 146.05 mm x 104.6 mm (Length/Depth x Height x Width)
• Weight : 4.0586 lb
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
