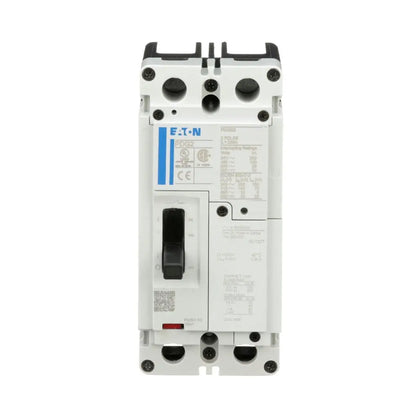

PDG22M0080TFFL - Eaton 80A 600V 2 Pole Thermal Magnetic Circuit Breaker 65kAIC@480V Power Defense Frame 2

PDG22M0080TFFL

PDG22M0080TFFL is a 2 pole, 80A, 600V thermal magnetic molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial applications. This breaker features a 65kAIC interrupting rating at 480V, bolt-on panel mounting, and long time and instantaneous trip functions for enhanced safety and performance. It is globally rated and meets UL, CSA, IEC, CCC, and CE standards for compliance in diverse environments. Eaton Power Defense circuit breakers are engineered for durability and precision, with a robust frame 2 design and standard load side lug connections. The PDG22M0080TFFL is ideal for use in panelboards and switchgear requiring dependable overcurrent protection.

• Part Number: PDG22M0080TFFL
• Manufacturer: Eaton
• Series: Power Defense
• Frame: 2
• Poles: 2
• Amperage: 80A
• Voltage: 600VAC
• Interrupting Rating: 65kAIC at 480V
• Mounting Type: Bolt-On Panel
• Protection Type: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Certifications: UL, CSA, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG22M0080TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786687047315
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
• Weight : 4.55143
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
