PDG22M0070TFFL - Cutler Hammer 70A 600V 2 Pole Circuit Breaker 65kA@480V Bolt-On Frame 2 Thermal Magnetic

PDG22M0070TFFL

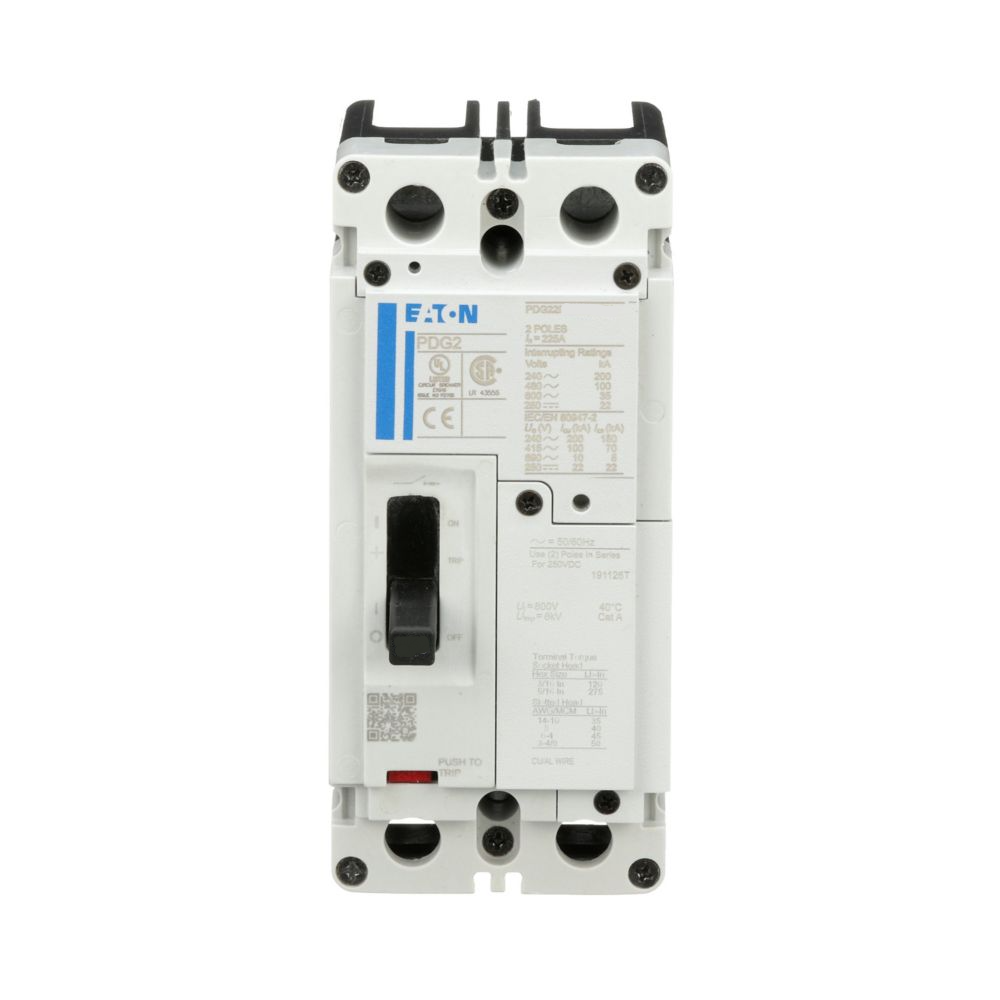

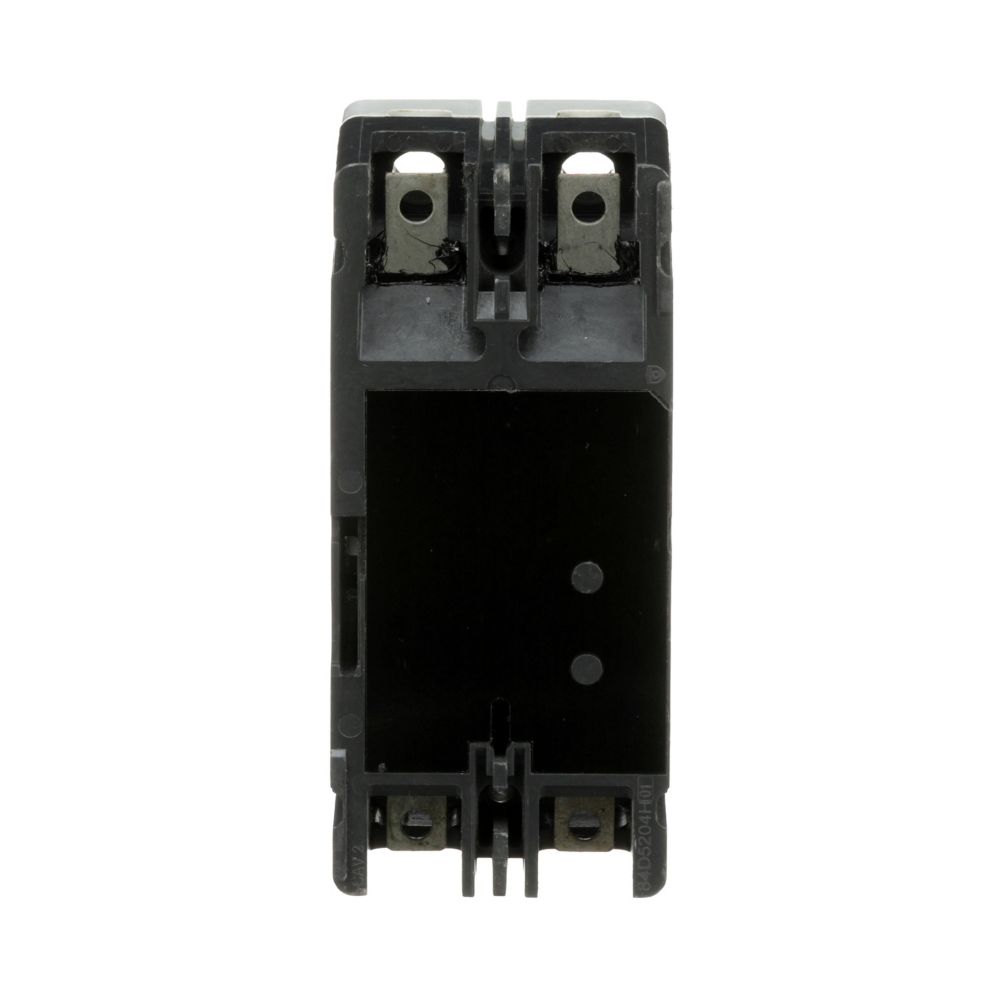

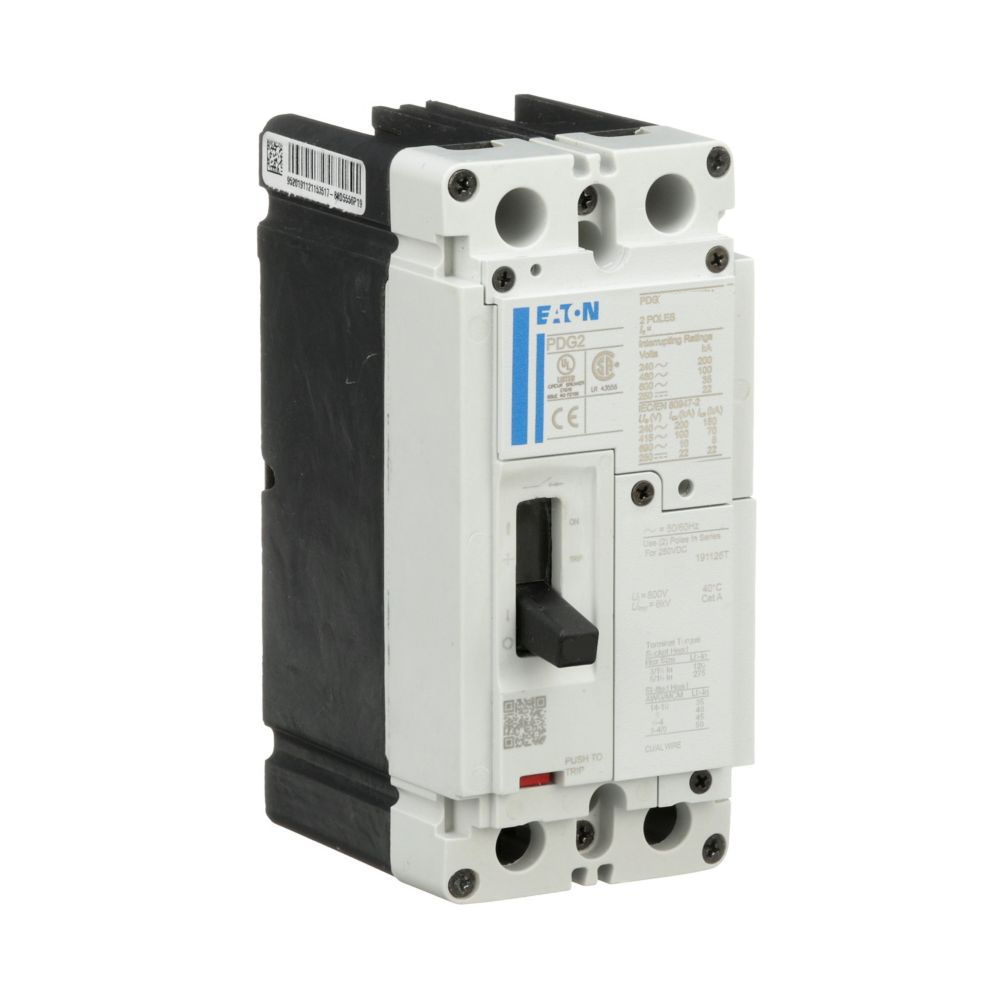

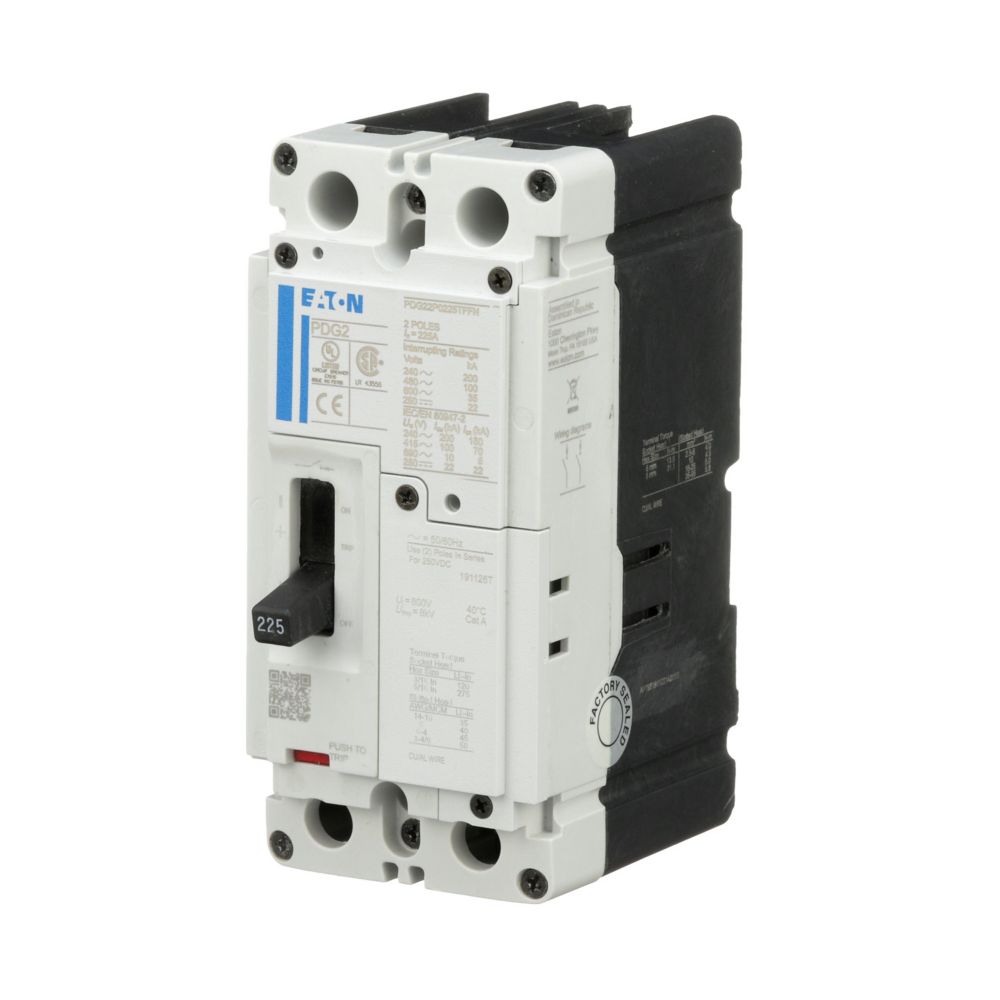

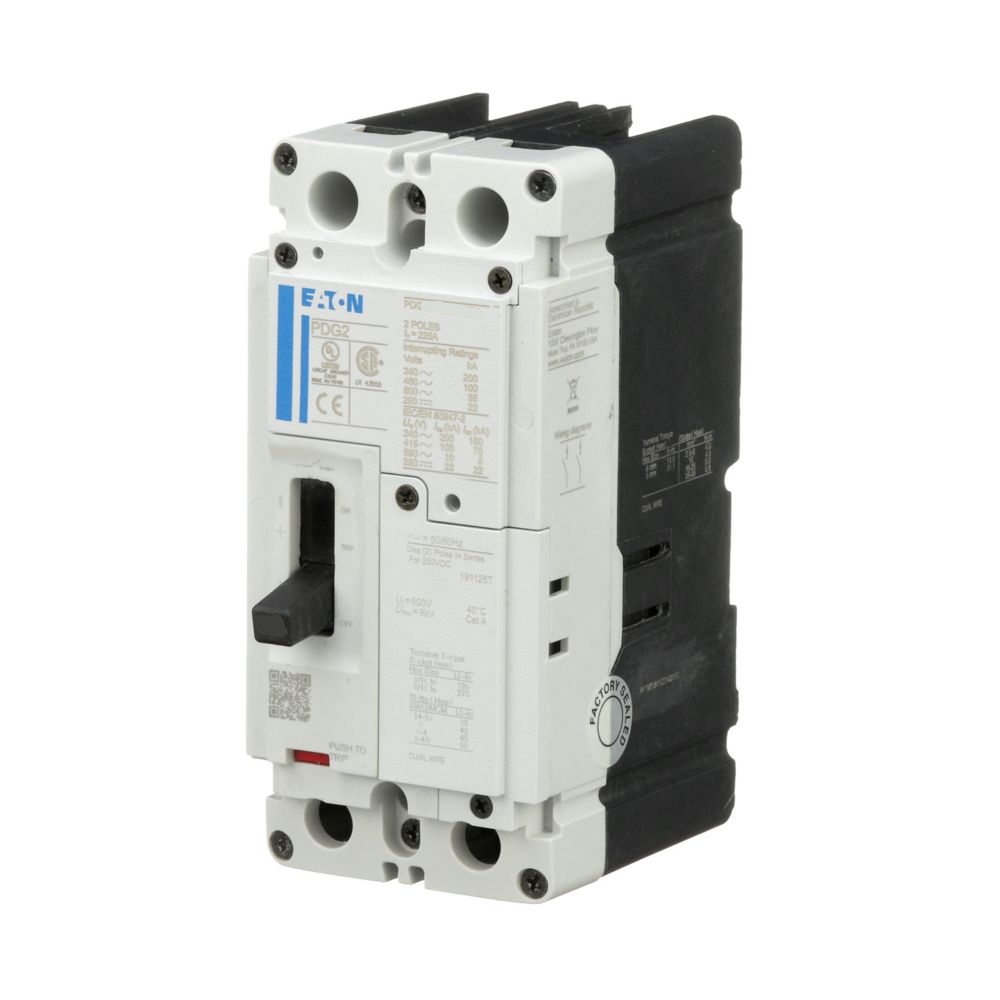

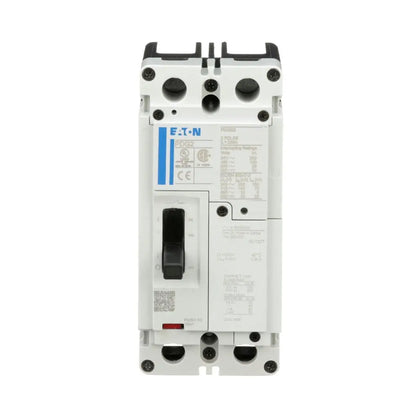

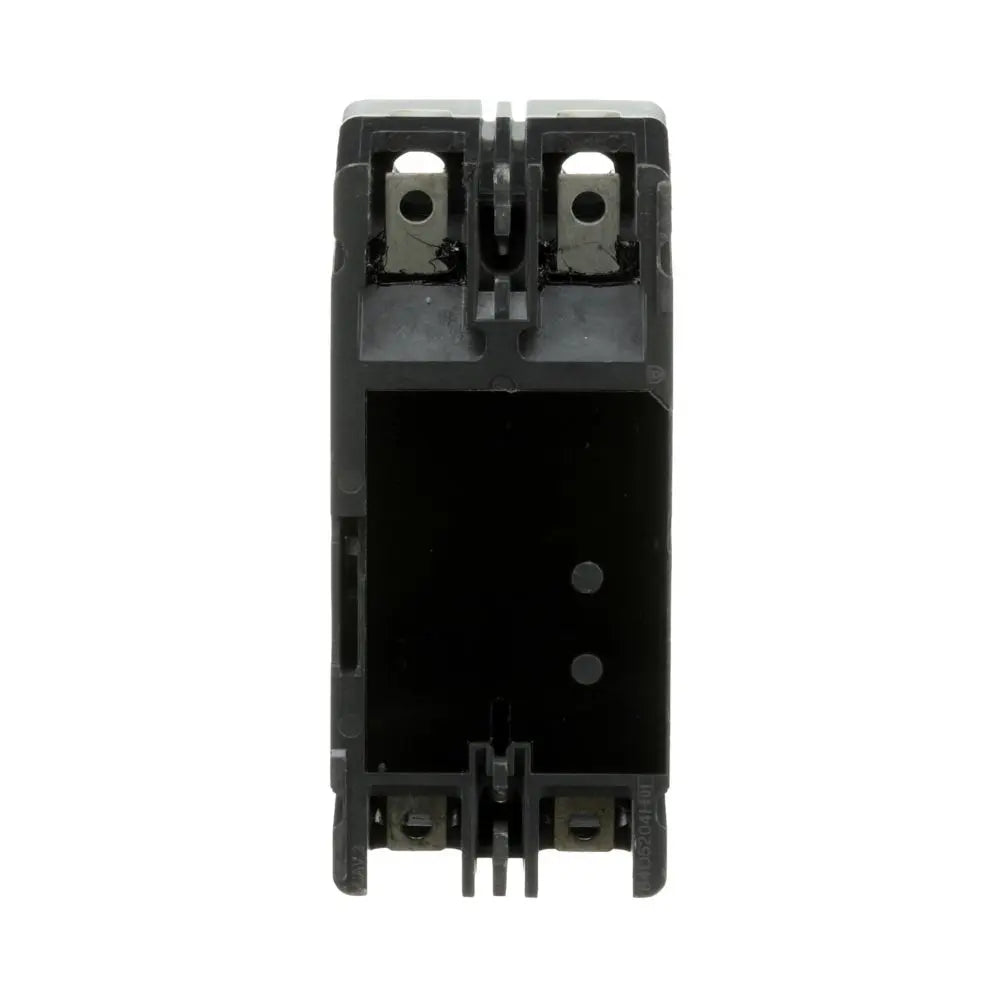

This molded case circuit breaker features a bolt-on mounting type and thermal magnetic trip unit, designed for reliable overload and short circuit protection. It belongs to the Eaton Power Defense series, Frame 2, and is UL listed with a 65kAIC interrupt rating at 480VAC. The breaker is suitable for industrial and commercial power distribution applications requiring robust protection and compliance with safety standards.

Key Specifications
• Amperage: 70 Amps
• Voltage Rating: 600 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 480 VAC
• Series/Frame: Power Defense Frame 2
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed
• Connection Type: Fixed-Fixed (FX-FX)
• Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: PDG22M0070TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786687047308
• Country of Origin : Dominican Republic
• Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
• Weight : 4.55143
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
