Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG22M0070TFFJ

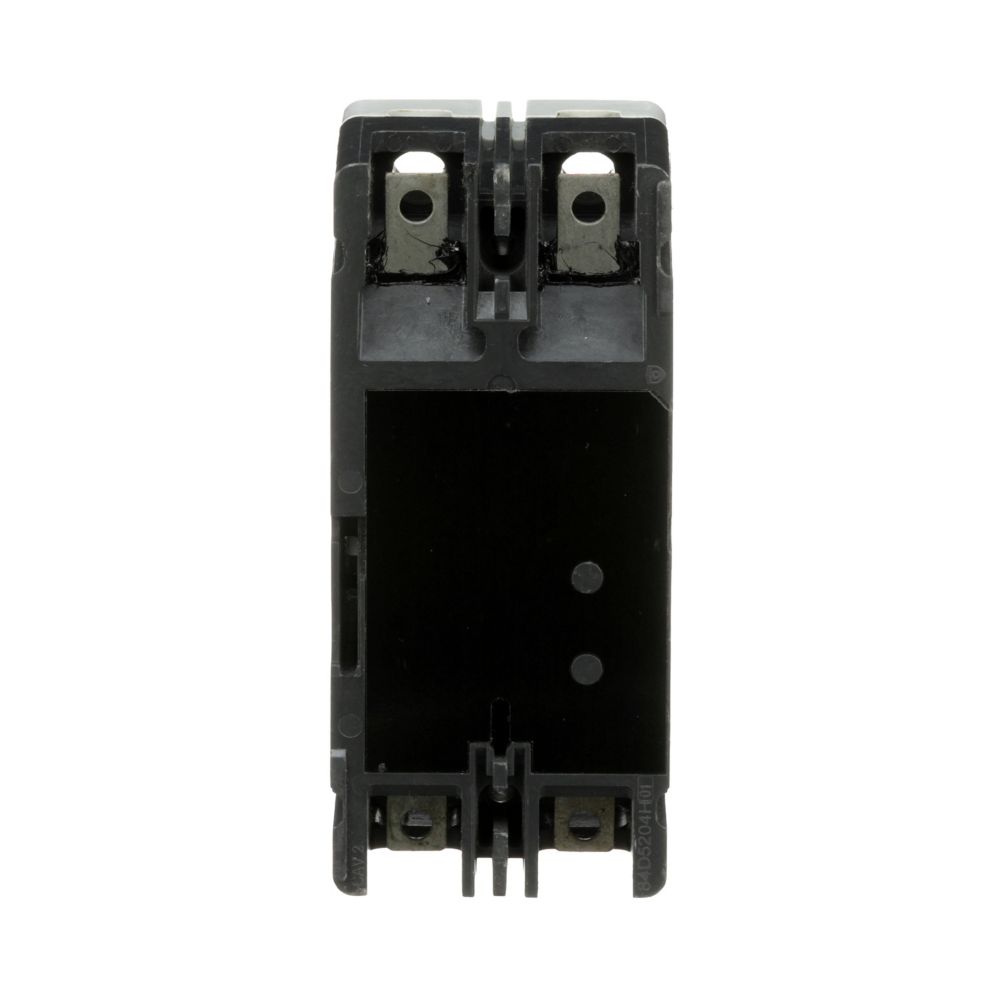

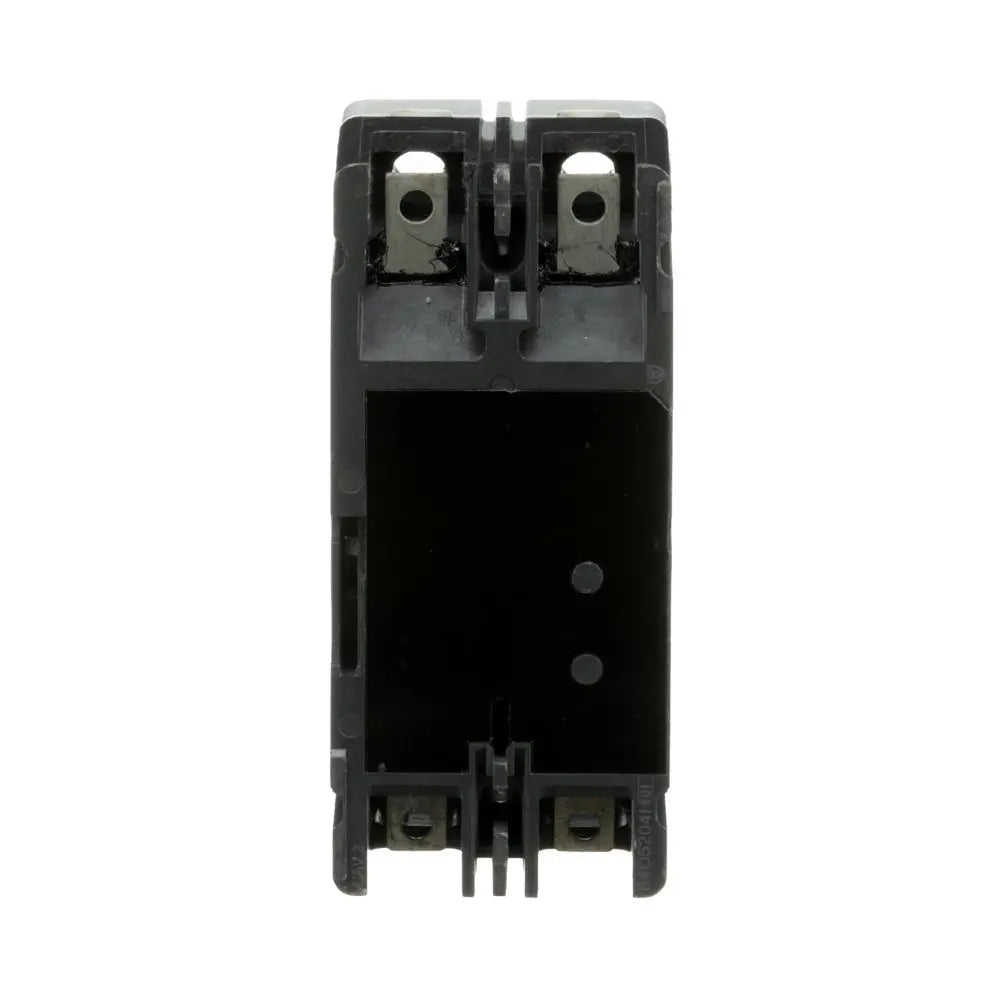

PDG22M0070TFFJ is a 2 pole, 70 amp, 600 Volt molded case circuit breaker from Cutler Hammer designed for reliable power protection. This circuit breaker features a thermal magnetic trip unit (T298) with a 65kA interrupt rating at 480V, suitable for panel mounting and feed-thru connection. It belongs to the Power Defense PD2 Global series and offers fixed thermal and magnetic trip characteristics for consistent performance.
- Amperage: 70 Amps
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 2
- Interrupt Rating: 65kA at 480V
- Trip Unit: Thermal Magnetic (T298)
- Mounting Type: Panel Mount, Feed-Thru Connection
- Series/Frame: Power Defense PD2 Global
- Circuit Breaker Type: Molded Case
- Frame Type: Complete Breaker
- Certifications: Eaton Cutler Hammer Standards
Specifications
- Part Number: PDG22M0070TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 70
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679217740
- GTIN : 00786679217740
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
