Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG22G0225TFFL

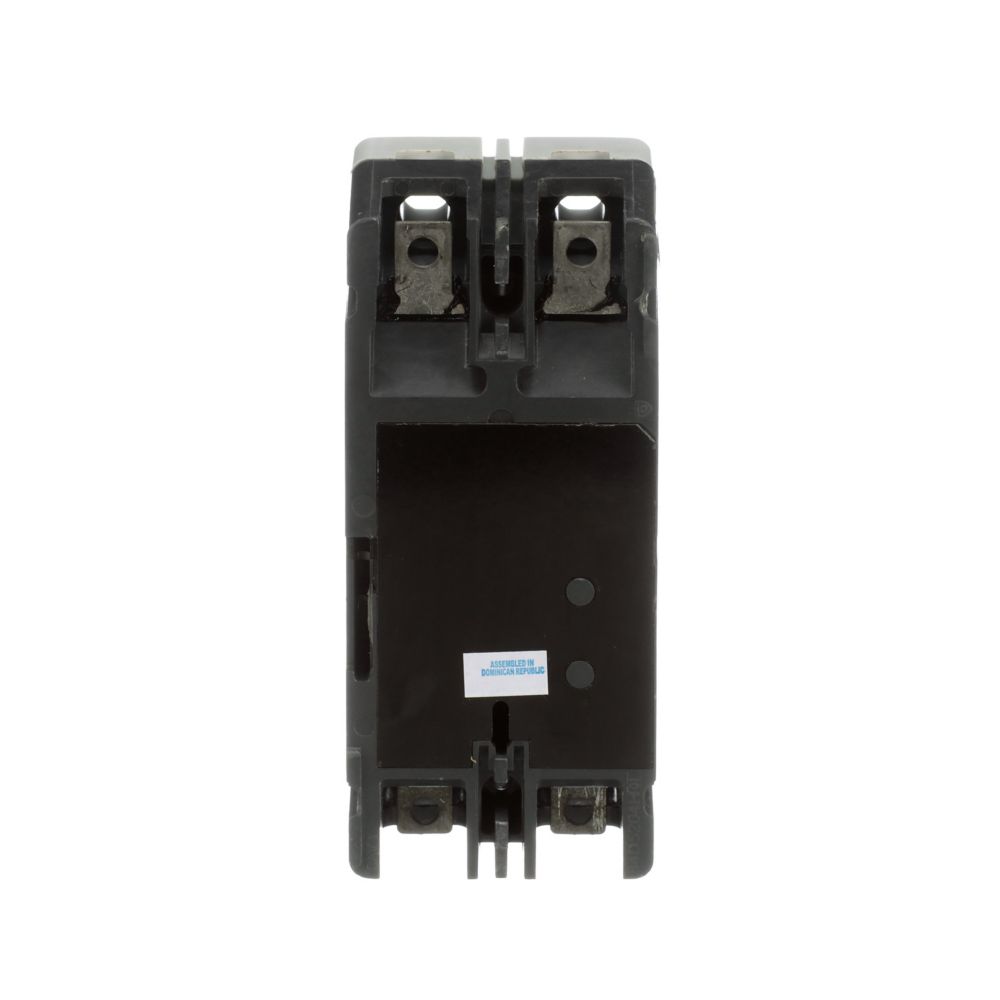

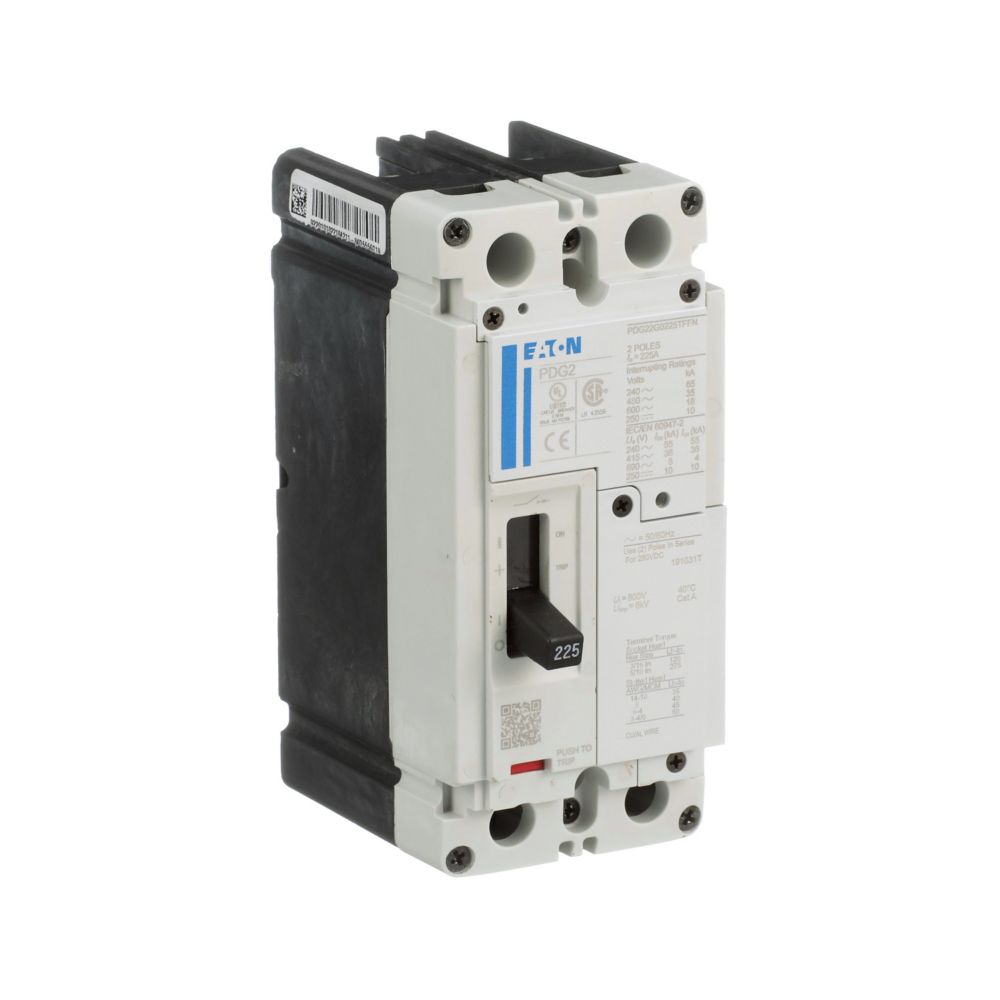

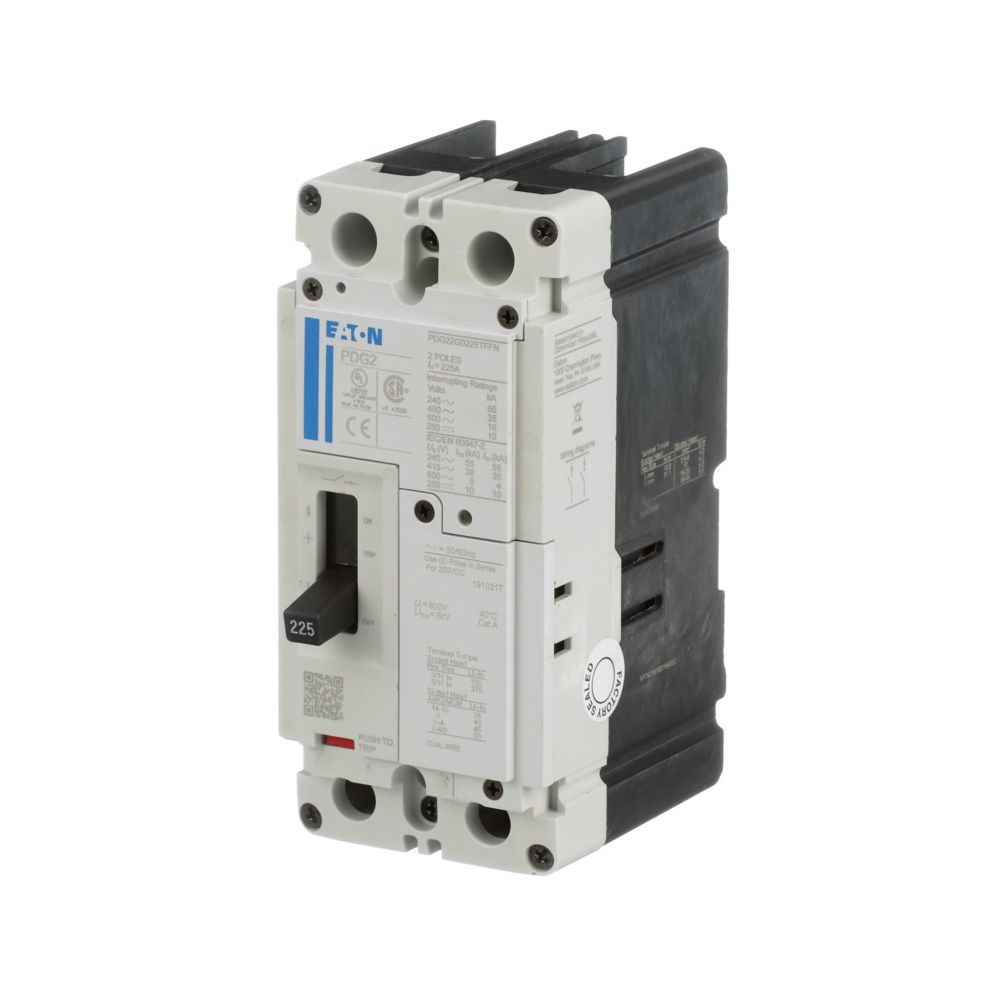

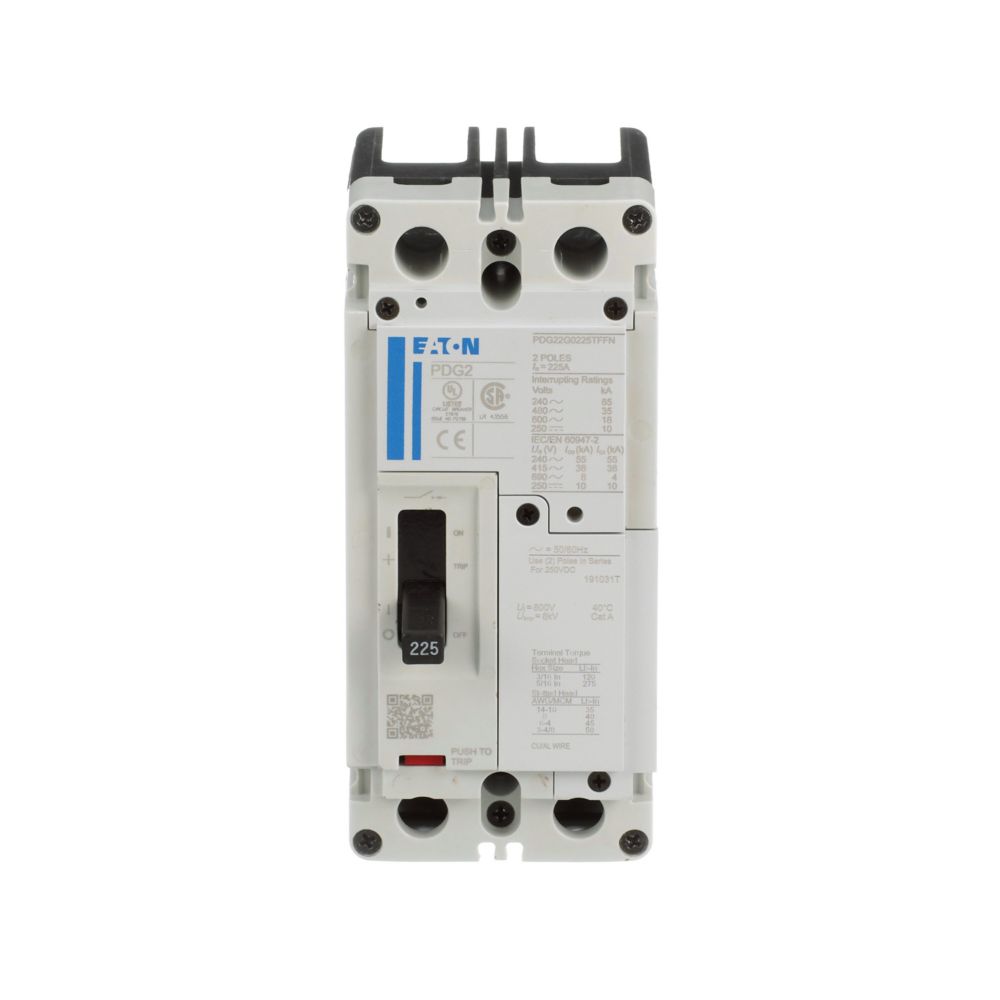

PDG22G0225TFFL is a 2-pole molded case circuit breaker from Eaton's Power Defense series rated for 225 amps and 600 volts AC.PDG22G0225TFFL features a thermal magnetic trip unit (T-M fixed-fixed) and a frame 2 design, providing reliable protection for electrical circuits with a 35kA interrupt rating at 480V. It includes standard terminals and is globally rated for versatile applications.
- Amperage: 225 A
- Voltage Rating: 600 Vac
- Poles: 2
- Frame Type: Power Defense (PDG), Frame 2
- Trip Unit: Thermal Magnetic (T-M fixed-fixed)
- Interrupt Rating: 35 kA at 480 Vac
- Terminals: Standard, load only
- Mounting Type: Molded Case
- Circuit Breaker Type: Complete breaker
- Certifications: Globally rated
Specifications
- Part Number: PDG22G0225TFFL
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Section : Molded case circuit breaker
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679991435
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 149.86 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 3.3227
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
