Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG22G0225TFFJ

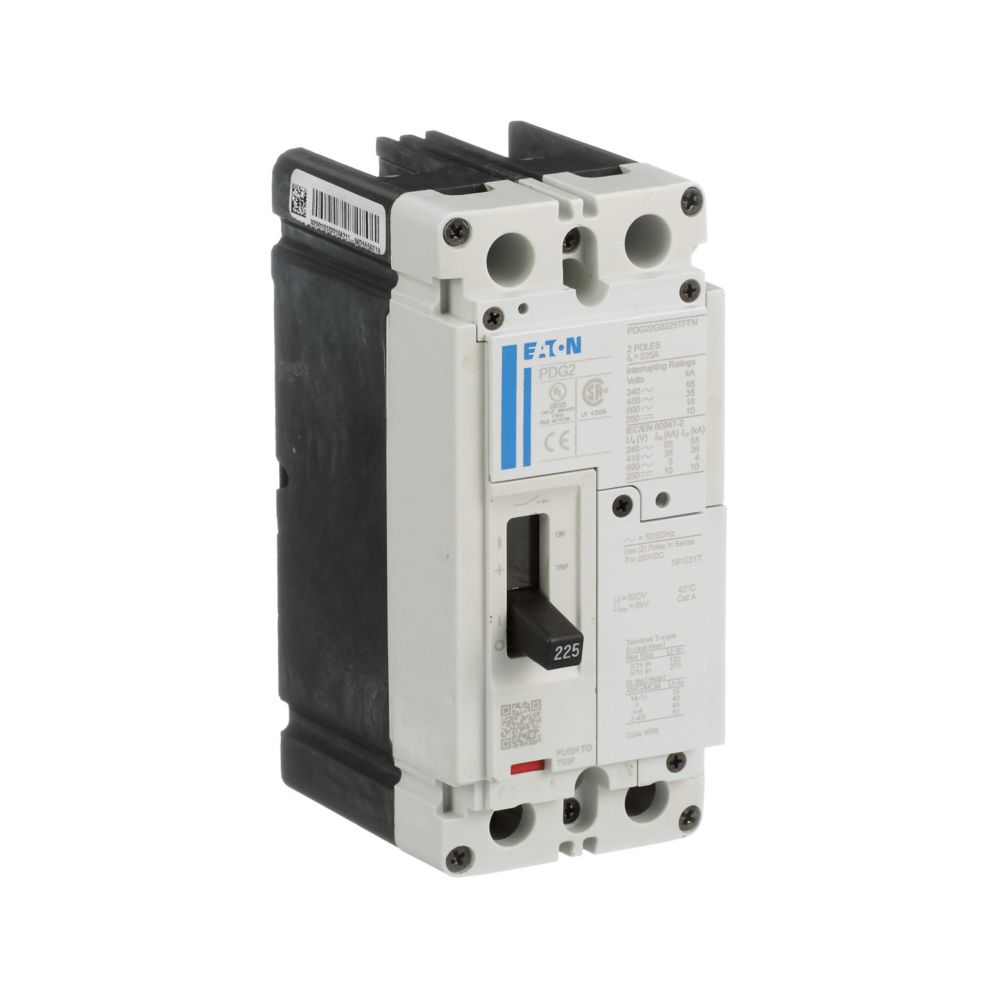

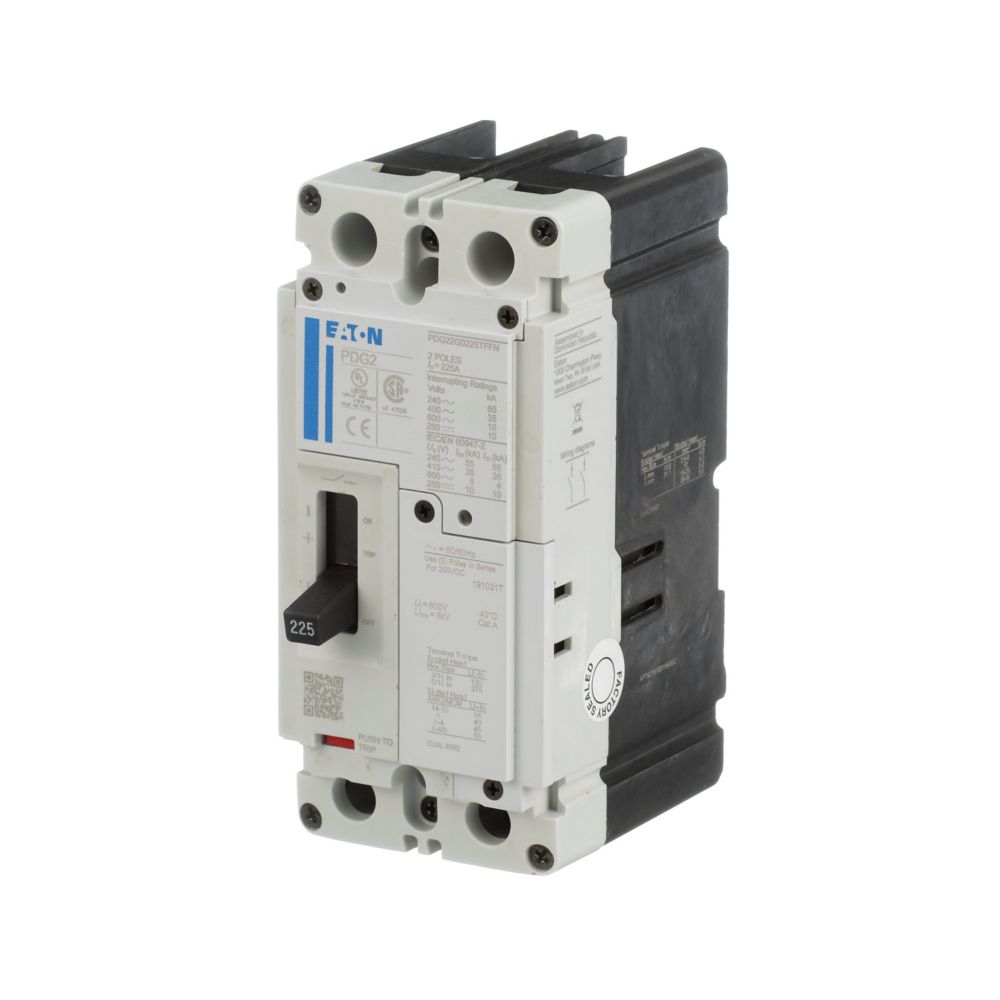

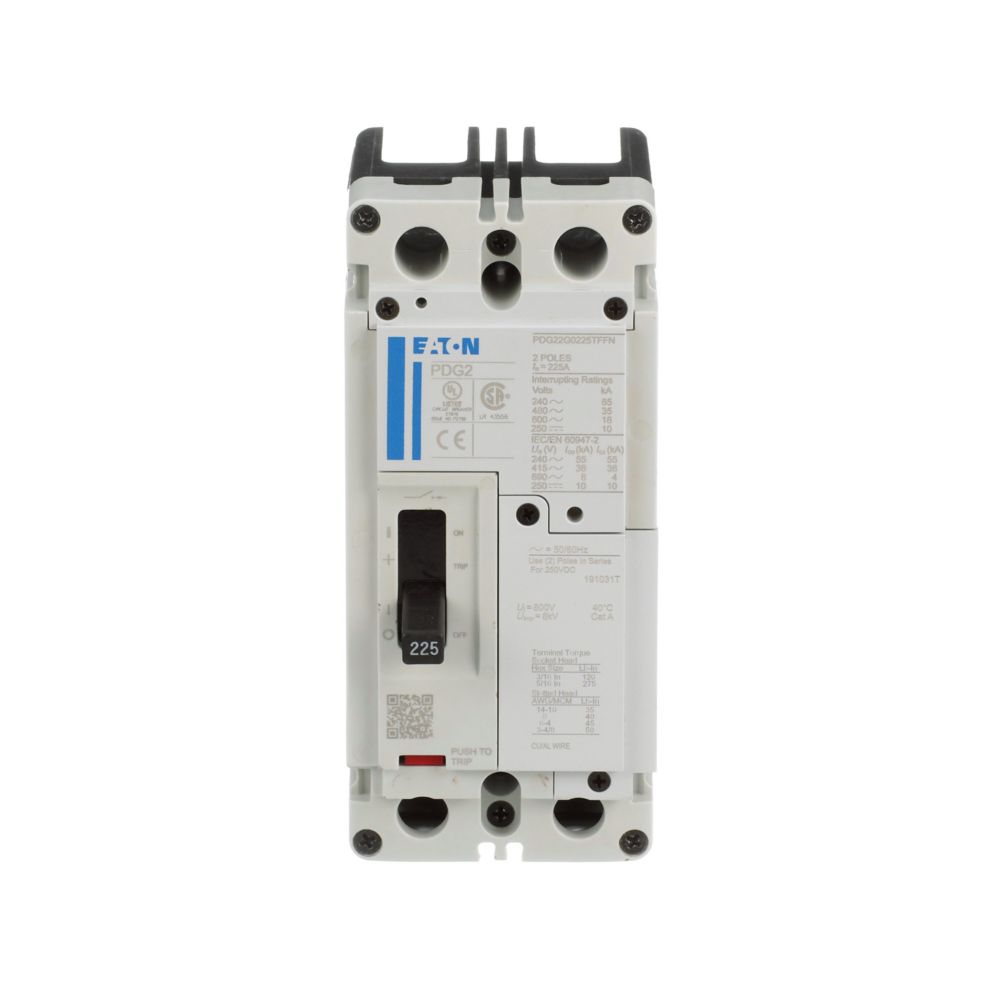

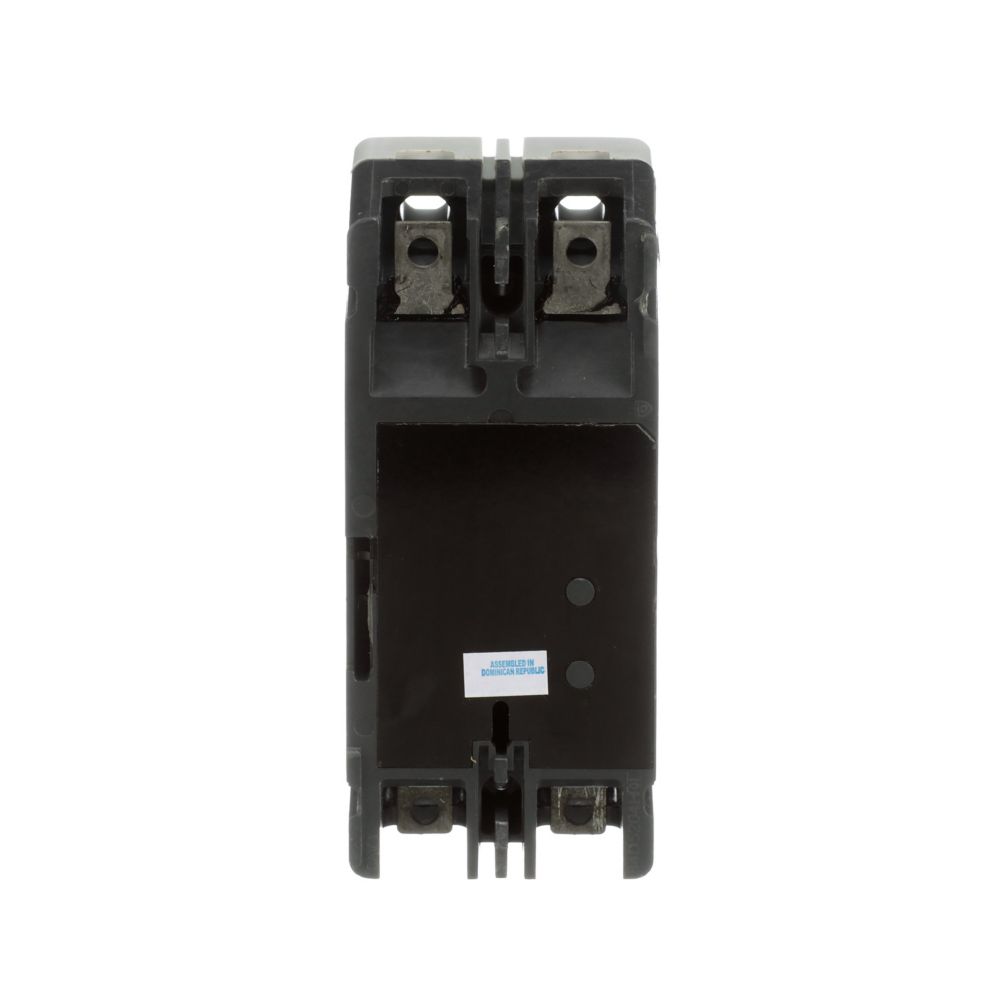

PDG22G0225TFFJ is a 2 pole, 225 amp, 600 volt Power Defense molded case circuit breaker by Eaton designed for reliable thermal magnetic protection.This Eaton circuit breaker features a Frame 2 design with a fixed thermal-magnetic trip unit (T-M TU), a 35kA interrupt rating at 480VAC, and standard line and load terminals. It supports feed-thru connection and is UL 489 certified and RoHS compliant.
- Amperage Rating: 225 A
- Voltage Rating: 600 VAC, 250 VDC max
- Number of Poles: 2
- Interrupt Rating: 35 kAIC at 480 VAC
- Frame: 2 (Power Defense Series)
- Trip Unit: Fixed Thermal Magnetic (T-M TU)
- Mounting Type: Molded Case
- Terminals: Standard Line and Load, Feed-Thru
- Certifications: UL 489, RoHS Compliant
- Dimensions (HxWxD): 152.4 mm x 69.9 mm x 88.9 mm
- Weight: 2.041 kg
Specifications
- Part Number: PDG22G0225TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667925058
- GTIN : 00786679250587
- Country of Origin : Dominican Republic
- Dimensions : 88.9 mm x 152.4 mm x 69.9 mm (Length/Depth x Height x Width)
- Weight : 4.55143
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
