PDG22G0020TFFL - Eaton 2 Pole 20A 600VAC 35kAIC Power Defense Molded Case Circuit Breaker, Frame 2, Thermal Magnetic Trip, DIN Rail Mount, UL/CSA/IEC/CCC Certified

PDG22G0020TFFL

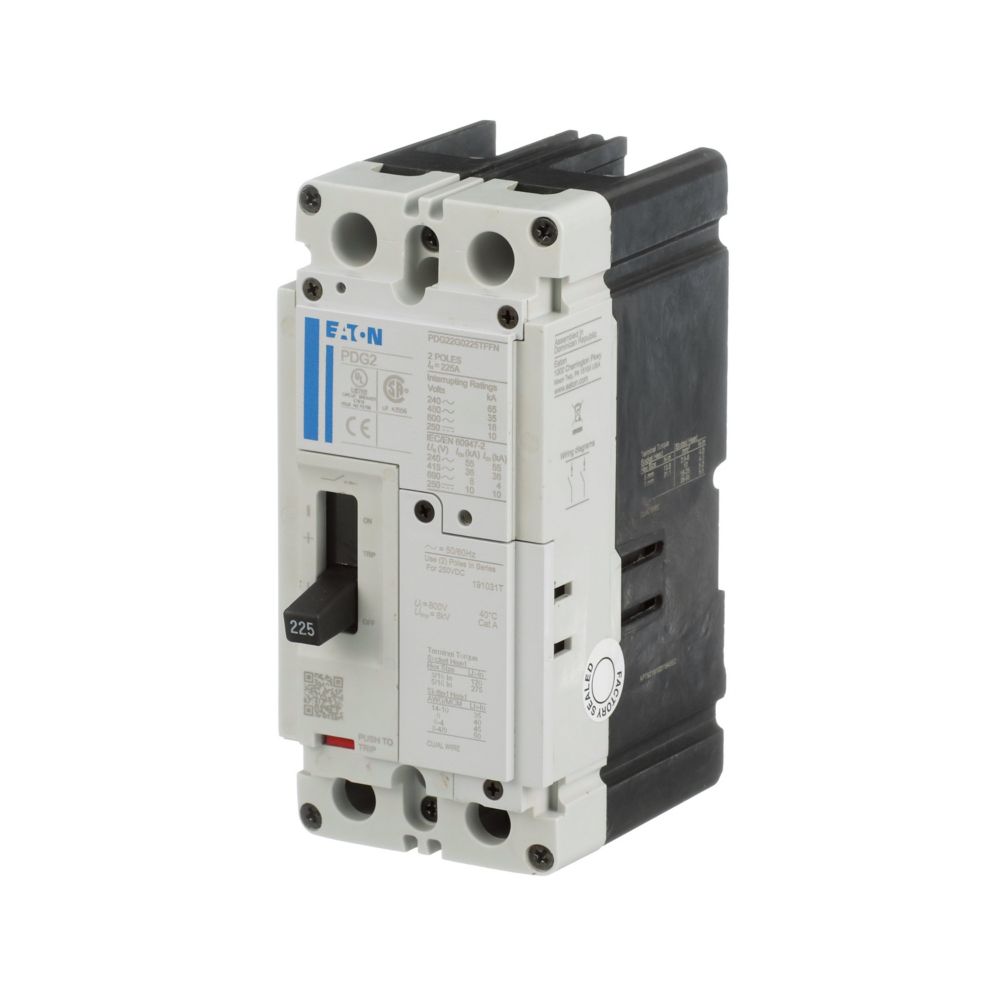

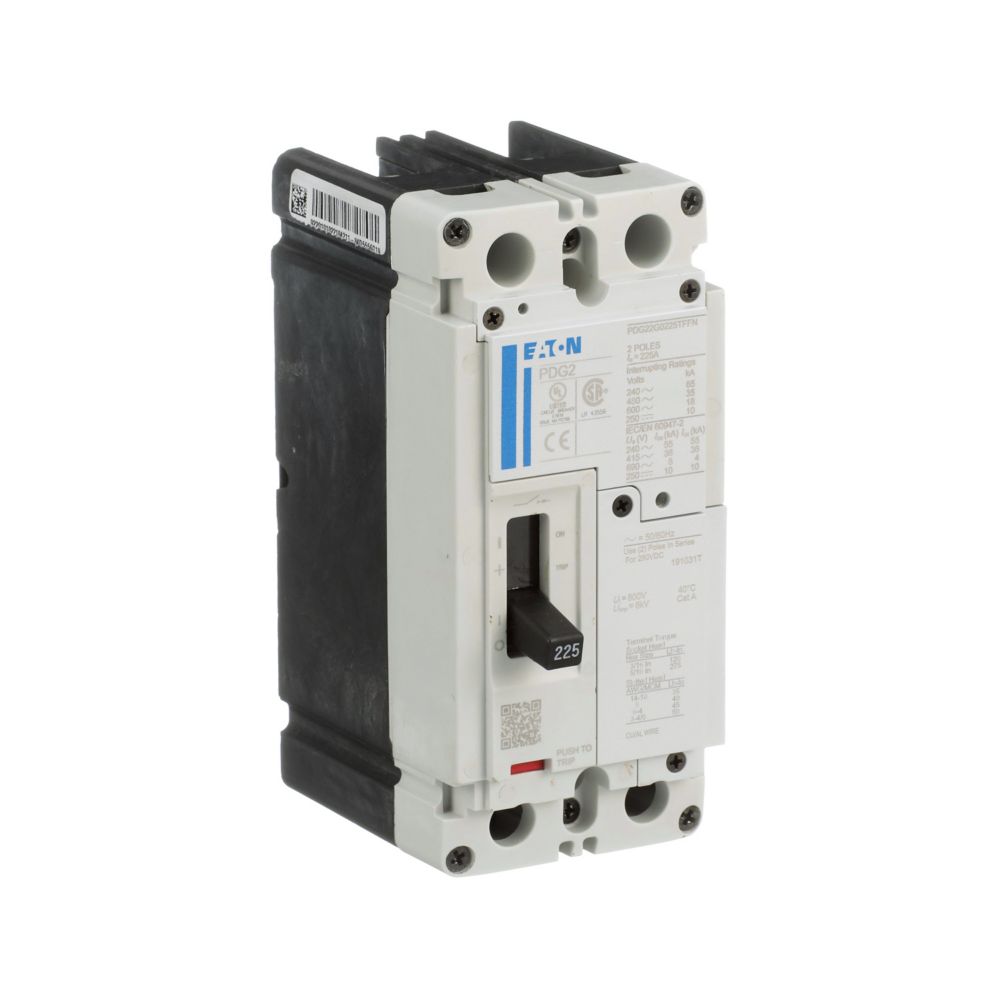

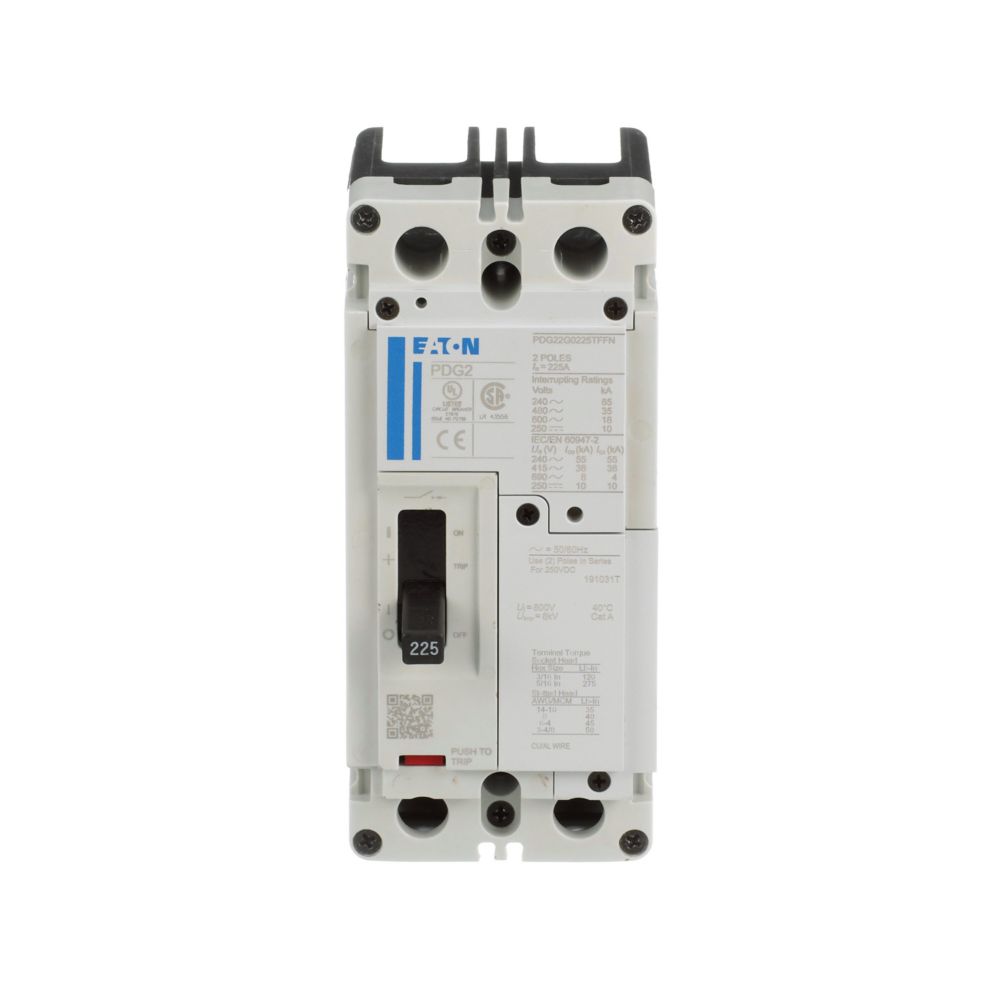

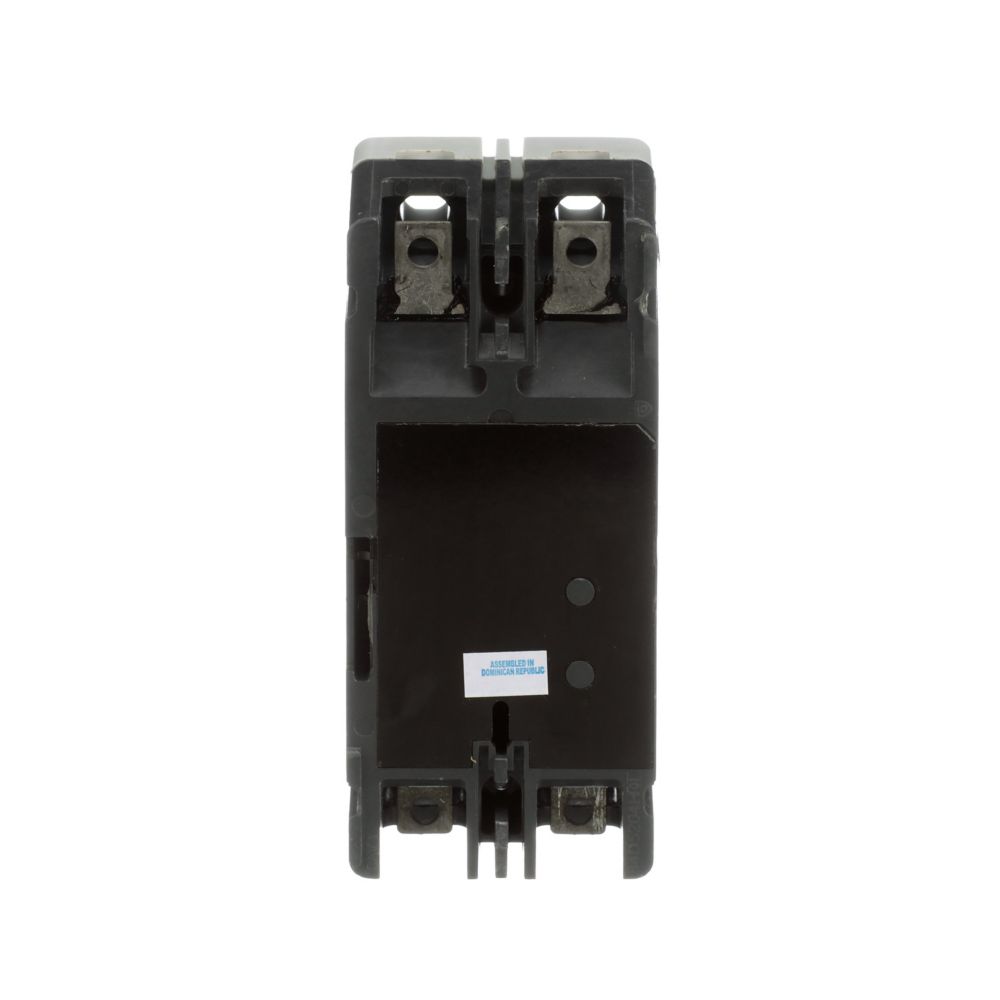

PDG22G0020TFFL is a globally rated, two-pole molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in demanding electrical applications.

This Eaton PDG22G0020TFFL circuit breaker features a thermal magnetic trip unit with long-time and instantaneous protection, suitable for motor control centers and industrial power distribution. It offers robust performance with a high interrupting capacity and is certified for use in multiple regions.

Key Specifications
• Amperage: 20A
• Voltage: 600VAC, 250VDC
• Poles: 2
• Mounting Type: DIN Rail
• Interrupt Rating: 35kAIC at 480VAC
• Series/Frame: Power Defense, Frame 2
• Trip Unit: Thermal Magnetic (Fixed-Fixed)
• Certifications: UL, CSA, IEC, CCC
• Connection: Bolt-On
• Phase: 1
• Temperature Rating: -4 to 158°F
• Standards: RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG22G0020TFFL
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679945636
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3.75
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
