Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
PDG13M0100TFFJ

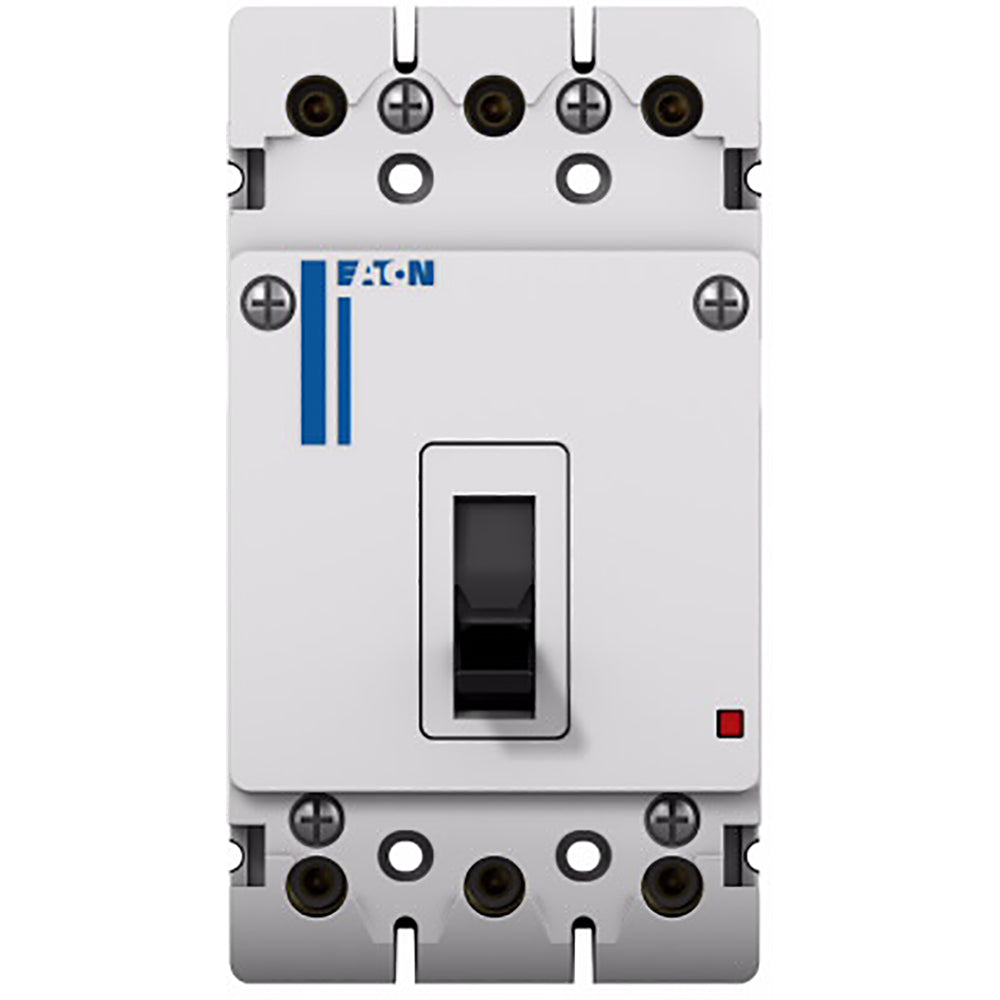

PDG13M0100TFFJ is a 3-pole molded case circuit breaker from Eaton's Power Defense series rated for 100 amps and 600 volts AC.PDG13M0100TFFJ features a thermal magnetic trip unit, 65kA interrupting rating at 480V, and panel mounting type, designed for reliable circuit protection in industrial and commercial applications.
- Amperage: 100A
- Voltage: 600VAC
- Poles: 3
- Series/Frame: Power Defense (PDG1)
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 65kA at 480V
- Mounting Type: Panel mount
- Terminal Connection: Line and Load Side Lug
- Certifications: CSA, CCC, IEC, UL
- Temperature Rating: -4 to 158 °F
- Max Wire Size: 3/0 AWG
- Min Wire Size: 14 AWG
Specifications
- Part Number: PDG13M0100TFFJ
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Power Defense Series
- Type : PDG
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Terminal Connection : Standard Line and Load Side Lug
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667930537
- GTIN : 00786679305379
- Country of Origin : Dominican Republic
- Dimensions : 2.99213 in x 4.25 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.75 lb
- Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
