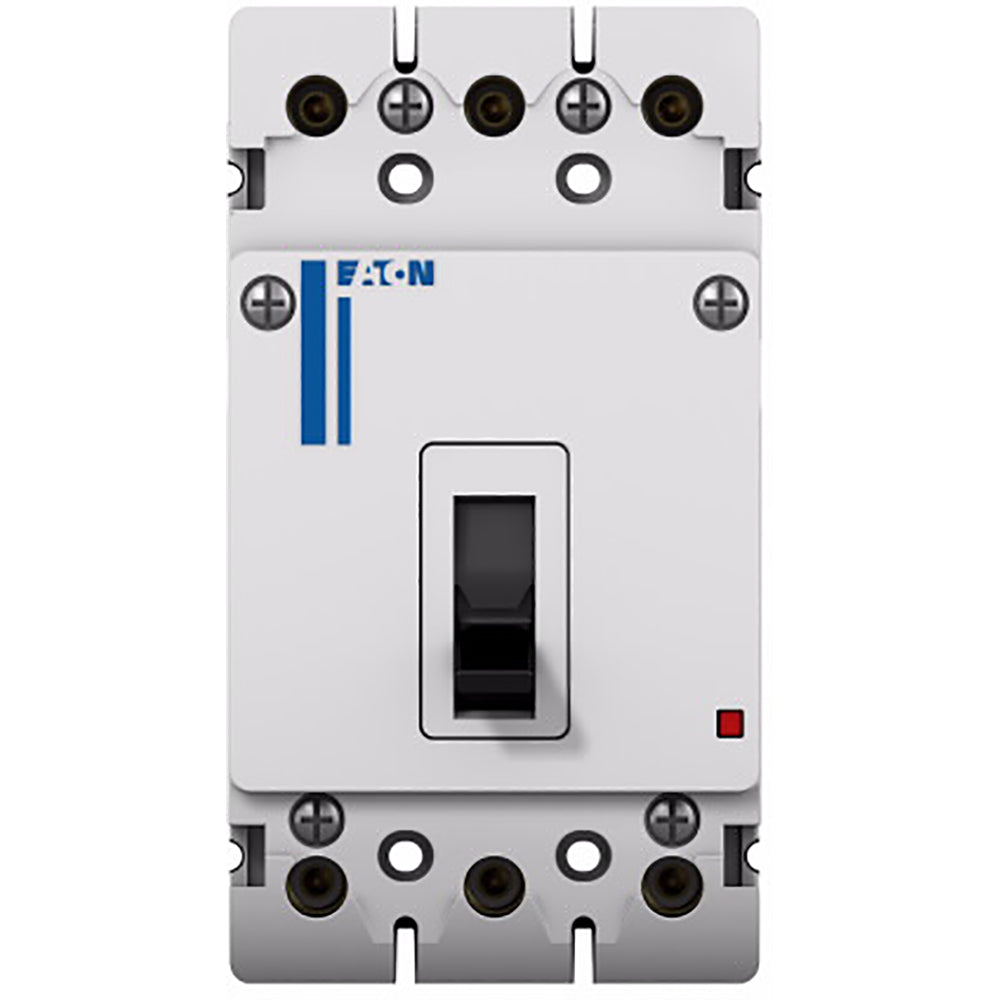

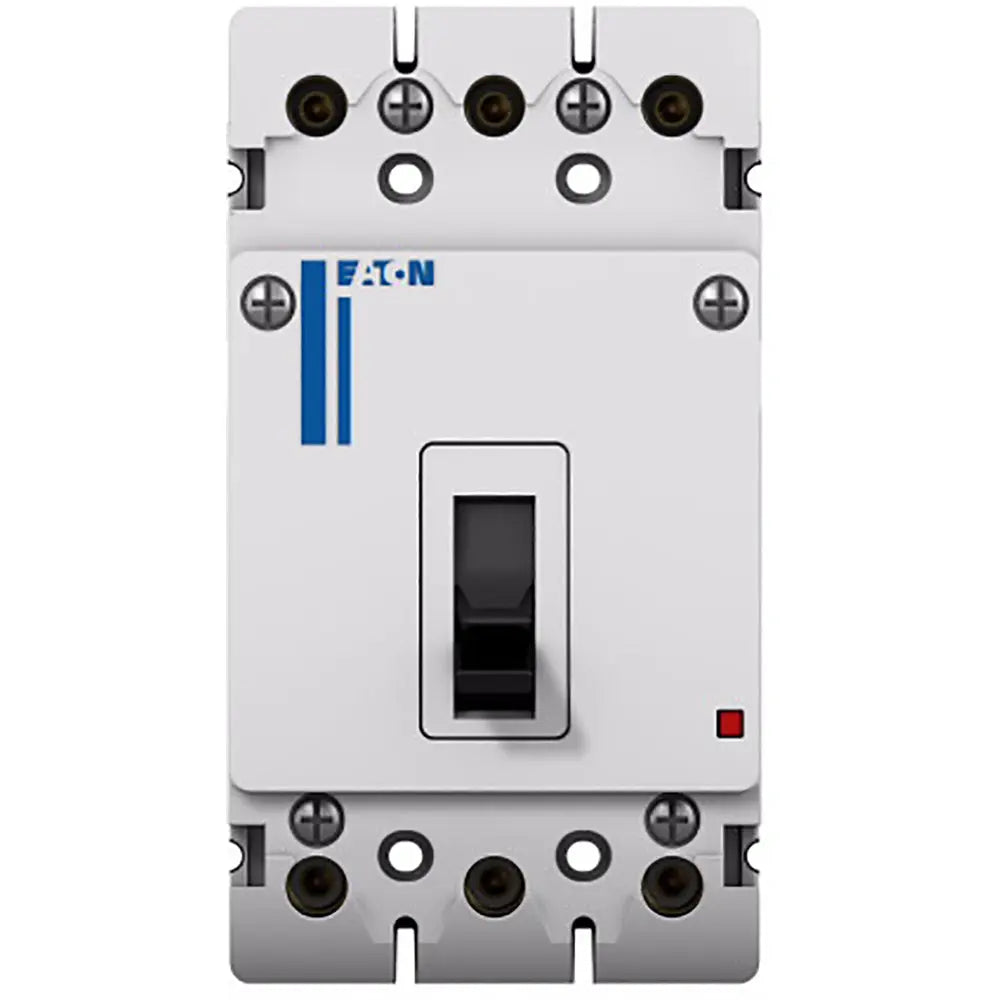

PDG13F0040TFFJ - Eaton 600V 40A 3 Pole Molded Case Circuit Breaker, Frame 1, Thermal Magnetic Trip, 25kAIC@480V

SKU: PDG13F0040TFFJ-New
Condition: New
Price:
$807.92
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

PDG13F0040TFFJ - Eaton Bolt-On 600V 40A 3 pole circuit breaker 25kA@480VAC - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
PDG13F0040TFFJ - Eaton Bolt-On 600V 40A 3 pole circuit breaker 25kA@480VAC - Essential Electric Supply

Description

PDG13F0040TFFJ


PDG13F0040TFFJ is a three-pole, 40 amp, 600 volt molded case circuit breaker from Eaton's Power Defense series, designed for reliable protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is rated for 25kAIC at 480VAC, making it suitable for a wide range of power distribution needs. The PDG13F0040TFFJ is a chassis mount, frame 1 circuit breaker with standard line and load terminals. It is globally rated and built to meet UL and other international standards for safety and performance. The breaker is ideal for use in panelboards, switchboards, and other power distribution equipment where dependable circuit protection is required.
  • Part Number: PDG13F0040TFFJ
  • Manufacturer: Eaton
  • Series: Power Defense
  • Frame: Frame 1
  • Number of Poles: 3
  • Current Rating: 40A
  • Voltage Rating: 600VAC
  • Interrupt Rating: 25kAIC @ 480VAC
  • Mounting Type: Chassis Mount
  • Breaker Type: Thermal Magnetic Trip
  • Terminals: Standard Line and Load
  • Certifications: UL Listed, globally rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PDG13F0040TFFJ
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Power Defense Series
  • Type : PDG
  • Voltage : 600
  • Amperage : 40
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@480VAC
  • Connection : Bolt-On
  • Terminal Connection : Standard Line and Load Side Lug
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 78667931820
  • GTIN : 00786679318201
  • Country of Origin : Dominican Republic
  • Dimensions : 76 mm x 107.95 mm x 76.2 mm (Length/Depth x Height x Width)
  • Weight : 2.8322338 lb
  • Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
