PDG13F0020TFFJ - Eaton 20A 600V 3 Pole Thermal Magnetic Circuit Breaker 25kAIC Frame 1

SKU: PDG13F0020TFFJ-New
Condition: New
Price:
$601.95
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

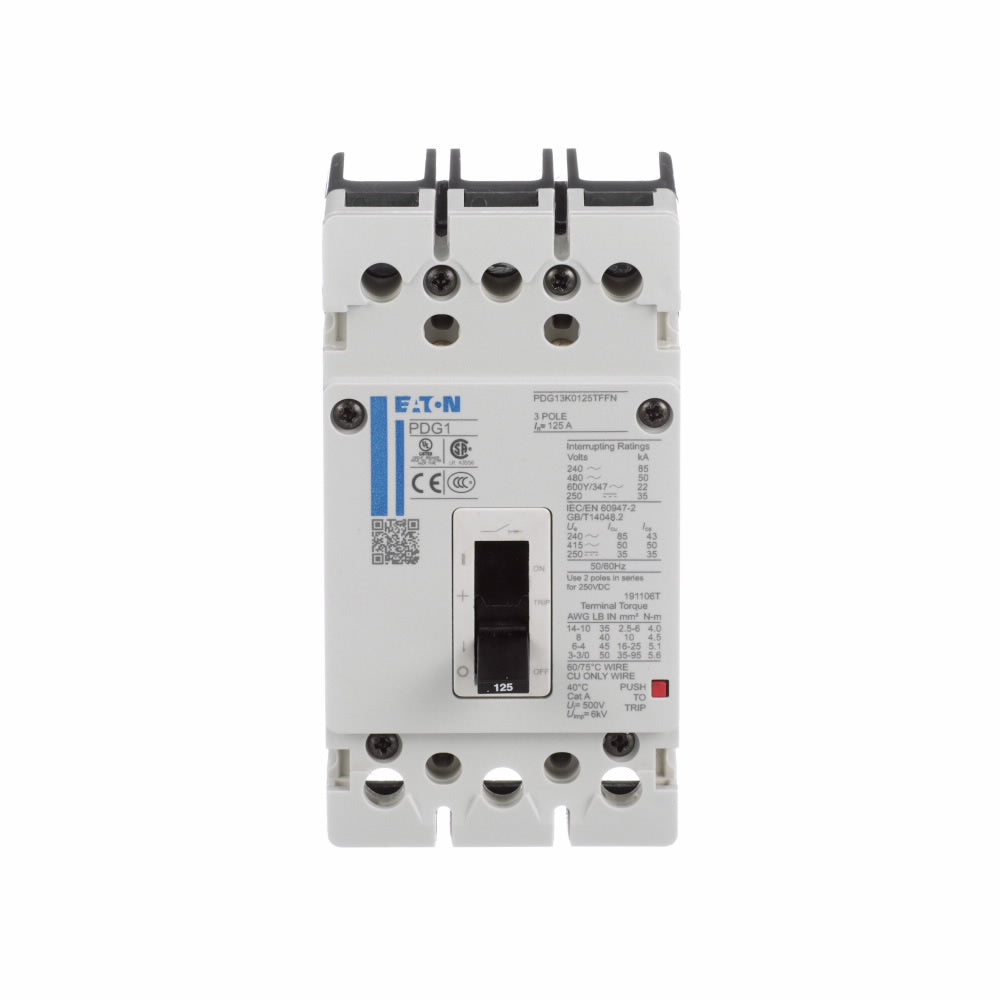

PDG13F0020TFFJ - Eaton circuit breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
PDG13F0020TFFJ - Eaton circuit breaker - Essential Electric Supply

Description

PDG13F0020TFFJ


PDG13F0020TFFJ is a 3 pole, 20 amp, 600 volt thermal magnetic molded case circuit breaker from Eaton's Power Defense series.

This circuit breaker features a 25kA interrupt rating at 480VAC, suitable for branch circuit protection with a bolt-on mounting type. It has a frame size 1 and fixed-fixed thermal magnetic trip unit providing reliable overcurrent protection. The breaker is RoHS compliant and designed for industrial and commercial electrical distribution systems.

    Key Specifications
    • Amperage: 20 Amps
    • Voltage Rating: 600 VAC, 250 VDC
    • Number of Poles: 3
    • Interrupt Rating: 25 kAIC at 480 VAC
    • Frame/Series: Power Defense Frame 1
    • Trip Unit: Thermal Magnetic Fixed-Fixed (T-M Fxd-Fxd)
    • Mounting Type: Bolt-On
    • Certifications: RoHS Compliant
    • Product Dimensions: 6.5 in depth, 4.5 in height, 3.5 in width
    • Weight: 2.7 lbs

    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


    Specifications

    • Part Number: PDG13F0020TFFJ
    • Manufacturer : Eaton
    • Brand : Eaton
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Power Defense Series
    • Type : PDG
    • Voltage : 600
    • Amperage : 20
    • Phase : 3
    • Poles : 3
    • AIC rating : 25kA@480VAC
    • Connection : Bolt-On
    • Terminal Connection : Standard Line and Load Side Lug
    • Temp Rating : -13–158 °F (-25–70 °C)
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 786679319031
    • GTIN : 00786679319031
    • Country of Origin : Dominican Republic
    • Dimensions : 6.5 in x 4.5 in x 3.5 in (Length/Depth x Height x Width)
    • Weight : 2.7 lb
    • Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
    • Wire Size : Max=3/0 AWG Min=14 AWG
