PDG13C0060TFFJ - Eaton 60A 600VAC 3 Pole Thermal Magnetic Circuit Breaker PDG Frame

PDG13C0060TFFJ

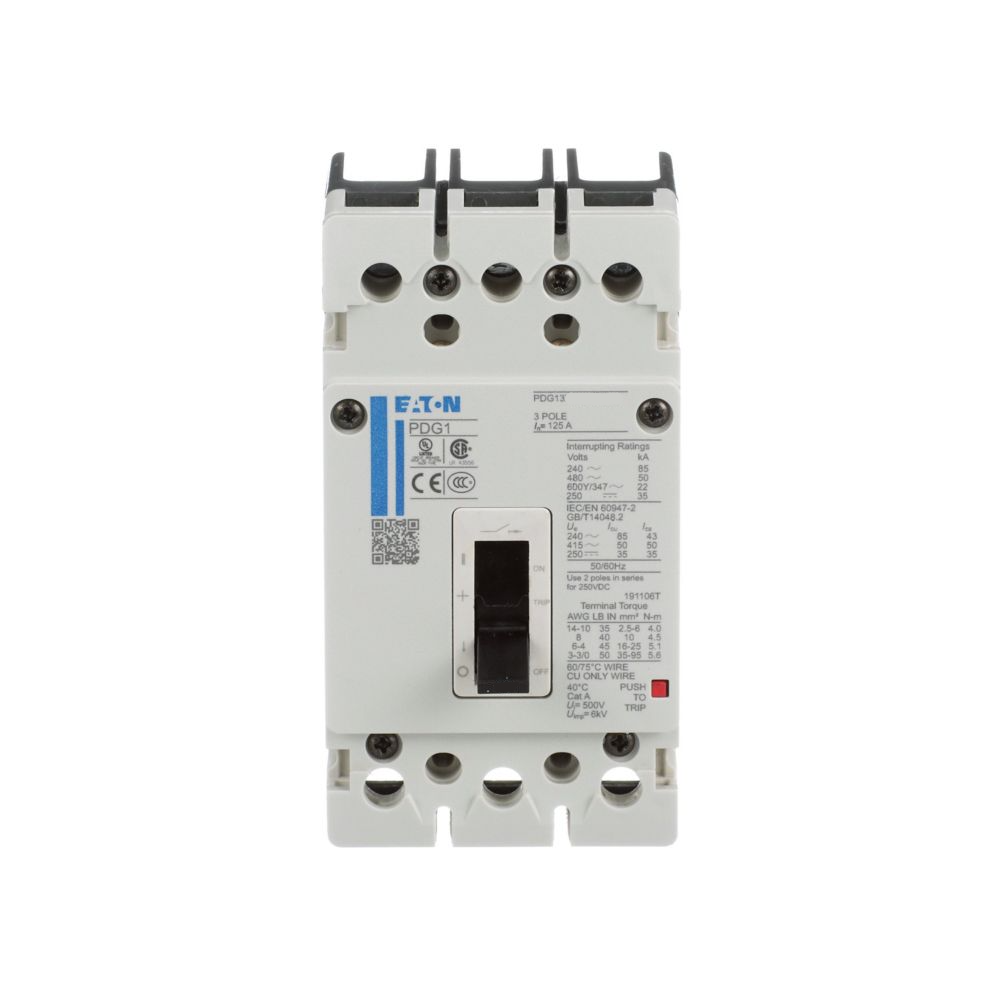

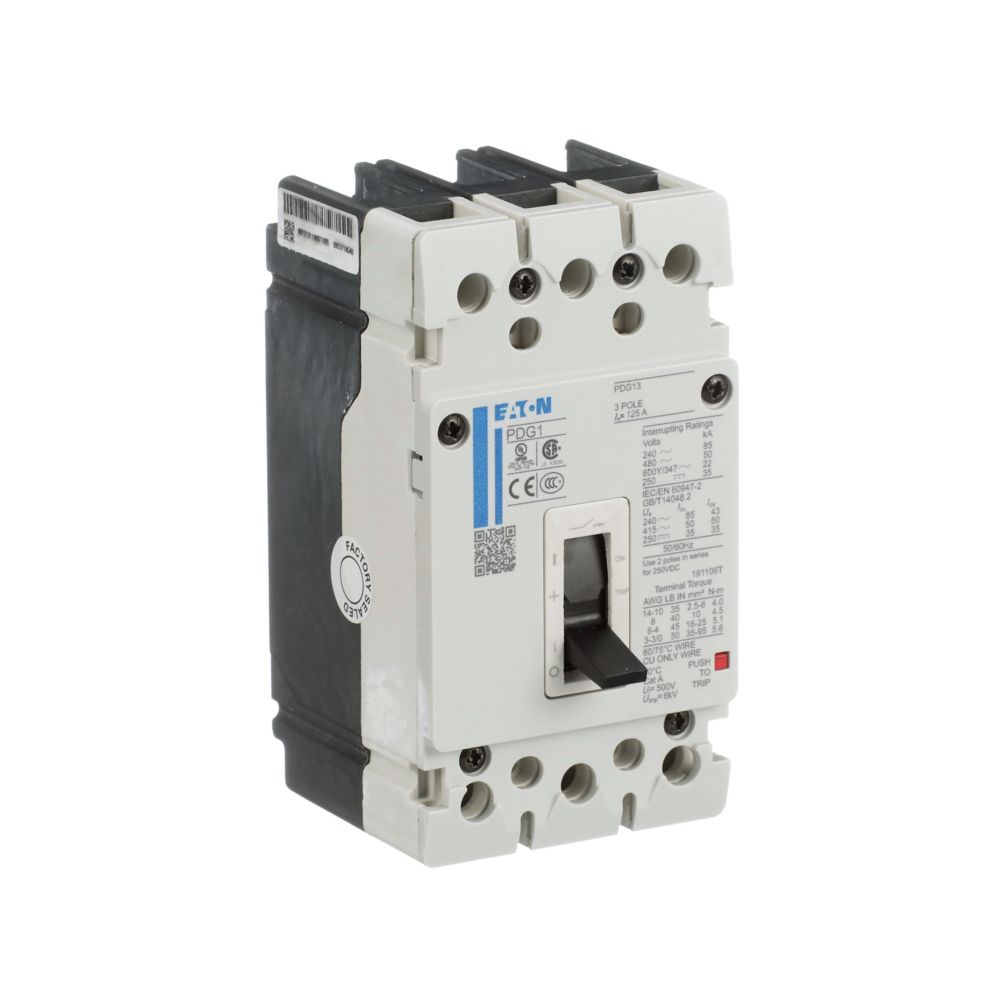

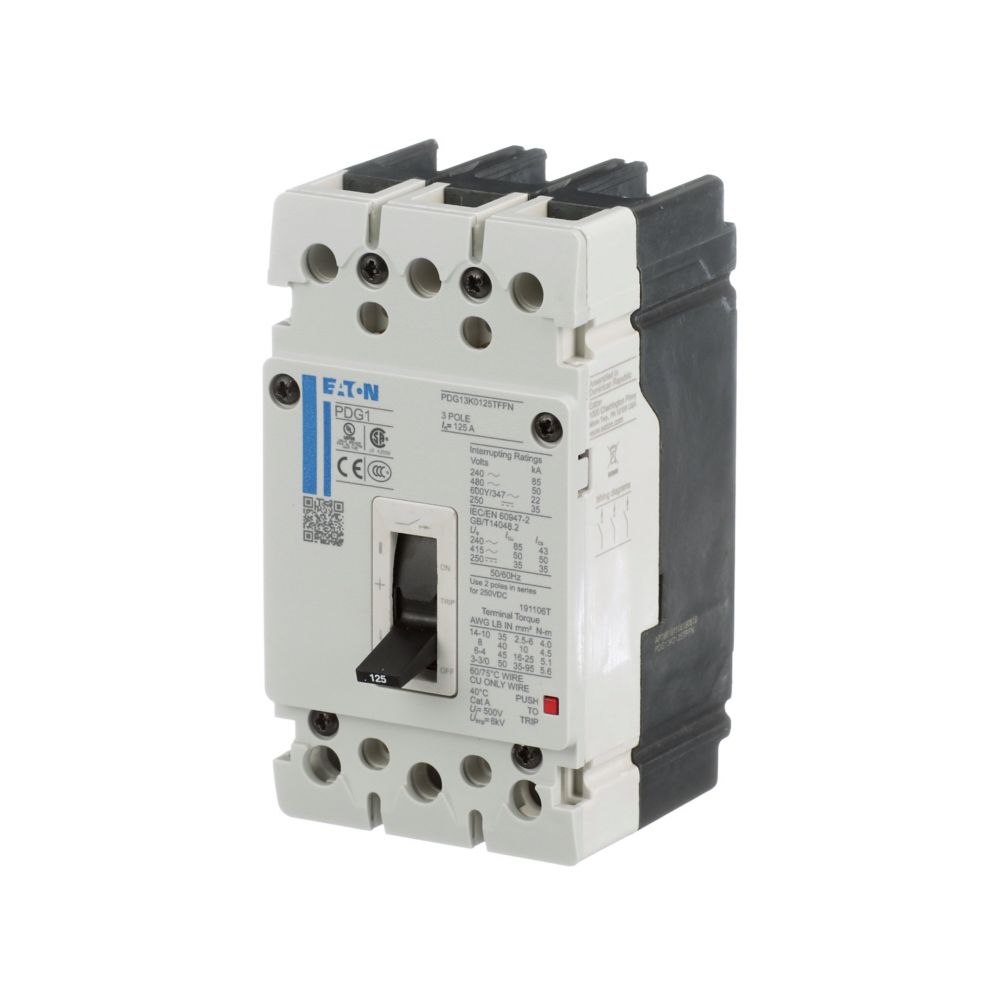

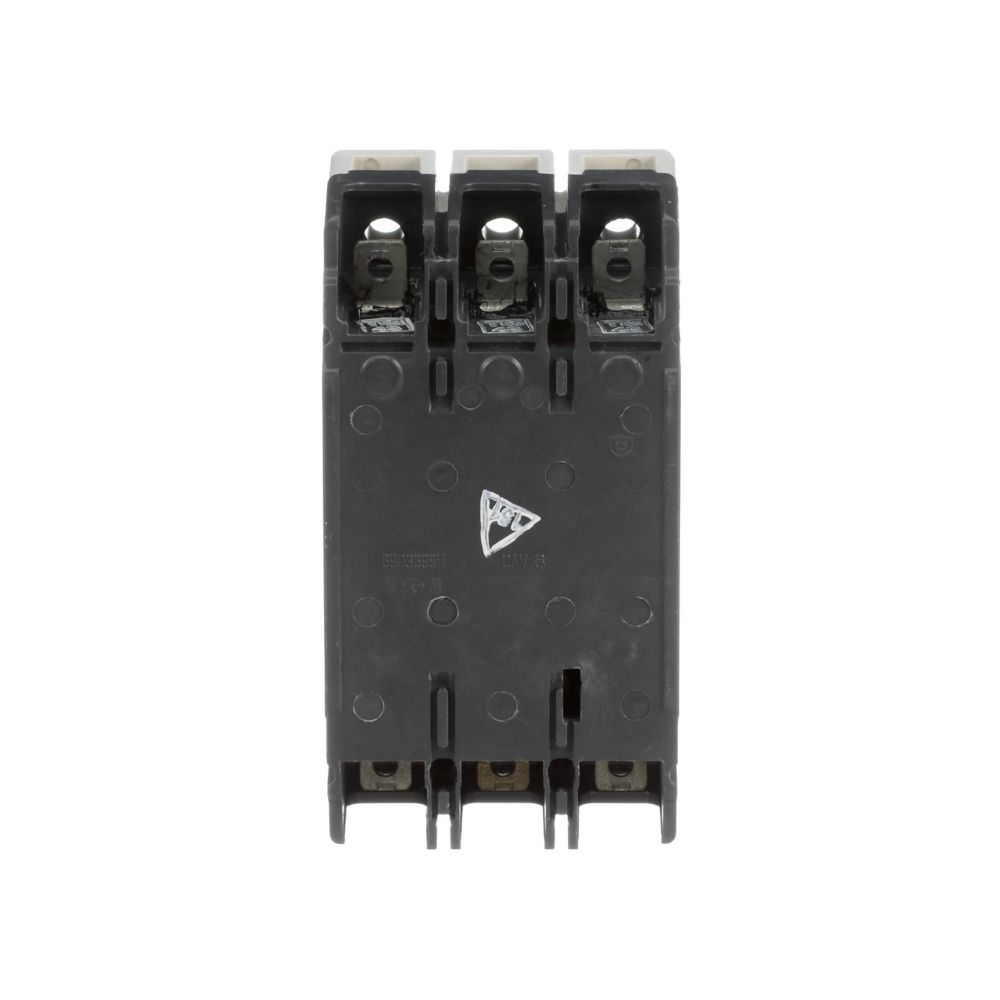

PDG13C0060TFFJ is a 3 pole thermal magnetic molded case circuit breaker from Eaton designed for reliable circuit protection.

This Eaton PDG13C0060TFFJ breaker features a 60 amp current rating, 600 VAC and 250 VDC voltage ratings, and an 18 kA interrupting rating at 480 VAC. It uses a PDG frame type with thermal magnetic trip unit and mounts on a DIN rail. The breaker includes standard line and load lug terminals and meets IEC, UL, CSA, CCC certifications with RoHS compliance. It supports wire sizes from 14 AWG to 3/0 AWG and operates in temperatures from -4 to 158°F.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Mounting Type: DIN Rail
• Interrupting Rating: 18 kAIC at 480 VAC
• Frame Type: PDG
• Trip Unit: Thermal Magnetic
• Terminal Connection: Line and Load Lug
• Certifications: IEC, UL, CSA, CCC
• Standards: RoHS Compliant
• Temperature Rating: -4 to 158°F
• Max Wire Size: 3/0 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDG13C0060TFFJ
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Power Defense Series
• Type : PDG
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Terminal Connection : Standard Line and Load Side Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679239612
• GTIN : 00786679239612
• Country of Origin : Dominican Republic
• Dimensions : 76 mm x 101.6 mm x 76.2 mm (Length/Depth x Height x Width)
• Weight : 2.79177045
• Certification : CCC, CSA, IEC 60947-2, RoHS, UL 489
