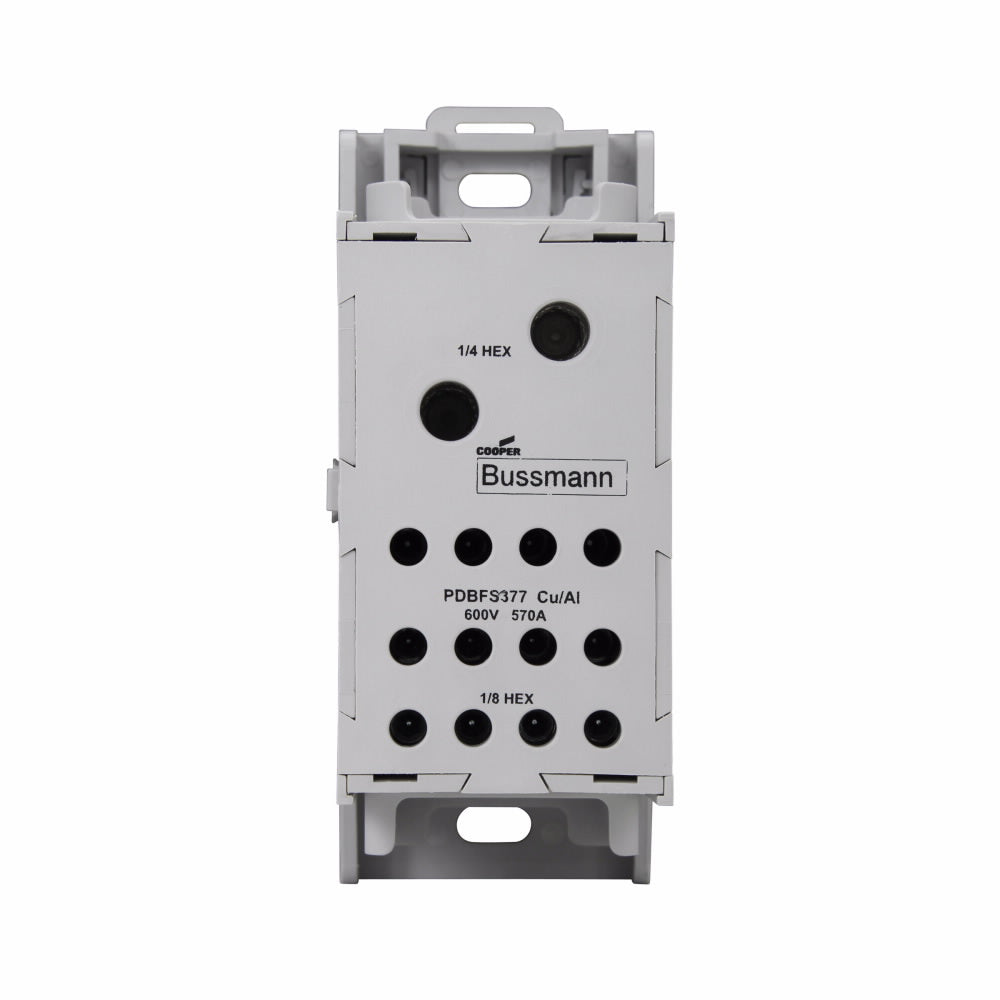

PDBFS377 - Eaton Bussmann Distribution Equipment 600 V 570 A

PDBFS377

PDBFS377 is an Eaton Bussmann series enclosed finger-safe power distribution block designed for high short-circuit current applications in electrical distribution systems. This single-pole block provides IP-20 finger-safe protection and supports both copper and aluminum conductors for flexible panel and DIN rail mounting. This power distribution block is rated up to 570 A at 600 VAC/VDC, with 2 line-side and 12 load-side connections per pole, accommodating 4 AWG to 300 kcmil line conductors and 14 to 4 AWG load conductors while maintaining high SCCR performance. Key Specifications

• Part Number: PDBFS377
• Manufacturer: Eaton Bussmann
• Voltage Rating: 600 V
• Amperage Rating: 570 A
• Number of Poles: 1
• Short Circuit Current Rating: 100-200 kA
• Bus Type: Power distribution block
• Metal Type: Aluminum, tin plated
• Mounting: DIN rail, panel
• Wire Size Range (Line): 4 AWG-300 kcmil
• Wire Size Range (Load): 14-4 AWG
• Enclosure: IP-20 finger-safe

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDBFS377
• Manufacturer : Eaton Bussmann
• Brand : Eaton Bussmann
• Category : Distribution Equipment
• Family : Bussmann PDBFS series power distribution block
• Type : Enclosed finger-safe power distribution block
• Voltage : 600 V
• Amperage : 570 A
• Poles : 1
• AIC rating : 100-200 kA
• Wire : Line: 4 AWG-300 kcmil; Load: 14-4 AWG
• Enclosure : IP-20 finger-safe
• Bus Type : Power distribution block
• Metal Type : Aluminum, tin plated
• Mounting : DIN rail, panel
