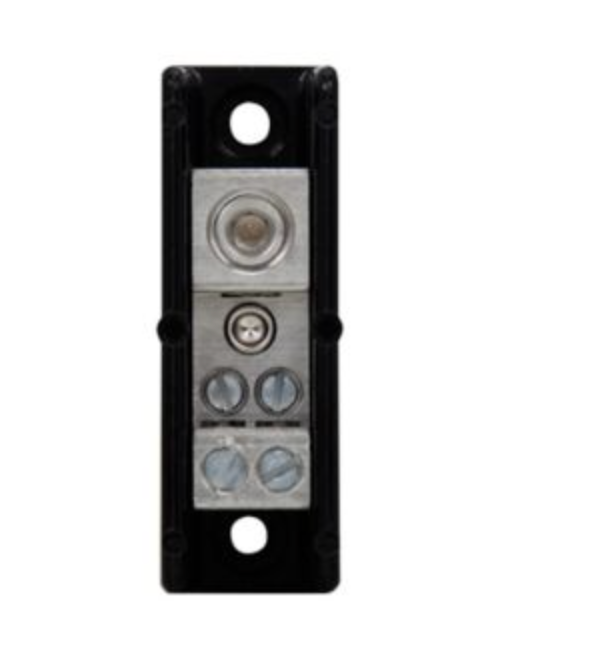

PDB220-1 - Eaton Bussmann PDB 175A 600V Single-Pole IP-20 Finger-Safe

PDB2201

PDB220-1 is an Eaton Bussmann series power distribution block designed for reliable circuit protection and power distribution in industrial and commercial applications. This single-pole finger-safe distribution block provides secure, accessible power connections with IP-20 protection rating to prevent accidental contact with live terminals.Technical Description

The PDB220-1 features tin-plated aluminum connectors that resist corrosion and ensure dependable electrical contact. It supports both AC and DC voltage applications and is rated for panel mounting, making it ideal for control panels, switchboards, and electrical enclosures. The dovetailing feature allows multiple single-pole blocks to be ganged together to create multi-pole configurations when needed. This block accommodates stranded copper and aluminum conductors and is designed for easy installation and maintenance.

Key Specifications

• Amperage Rating: 175A
• Voltage Rating: 600 Vac, 600 Vdc
• Number of Poles: Single-pole
• Short-Circuit Rating: 200 kAIC (#12-4 AWG), 100 kAIC (#14-4 AWG)
• Mounting Type: Panel
• Connector Material: Tin-plated aluminum
• Protection Rating: IP-20 Finger-safe
• Operating Temperature Range: -4°F to 248°F (-20°C to 120°C)
• Flammability Rating: UL 94 V0
• Certifications: RoHS Compliant, CE, CSA C22.2 No. 158
• Product Dimensions: 2.85 in (L) x 1.6 in (W) x 1.68 in (H)
• Product Weight: 0.19 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PDB2201
• Manufacturer : Eaton
• Brand : Bussmann

Product Data

• UPC : 05171263772
• GTIN : 00051712637725
• Weight : 5.19
