Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PAP36800

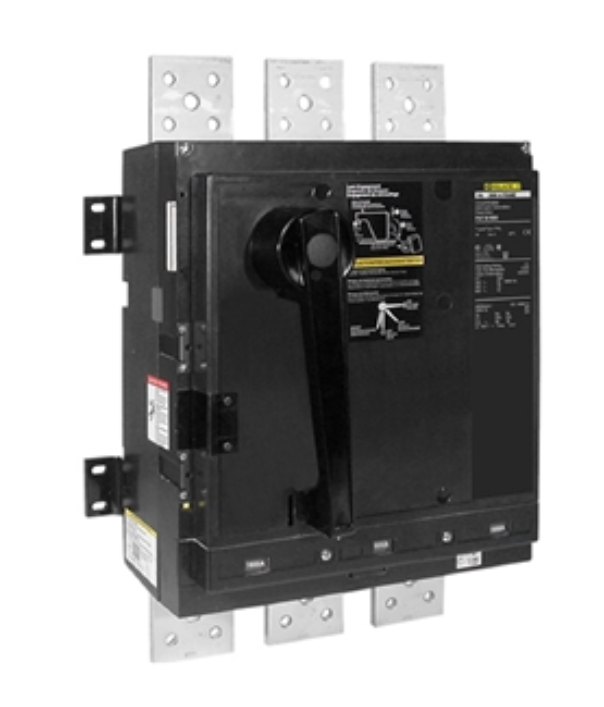

PAP36800 is a Square D 800 Amp, 600 Volt, 3-Pole MAP series bolt-on molded case circuit breaker designed for reliable circuit protection.This Square D MAP36800 circuit breaker features thermal magnetic trip protection with long time, short time, and instantaneous trip functions. It is rated for 800 amps continuous current and 600 volts AC operation, suitable for three-phase electrical systems. The breaker has a 30kA interrupting rating at 480 volts and uses a bolt-on mounting style with line and load side lug terminals.
- Key Specifications
- Manufacturer: Square D
- Part Number: PAP36800
- Series/Frame: MAP
- Amperage: 800 Amps
- Voltage: 600 Volts AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 30kAIC @ 480V
- Trip Unit: Thermal Magnetic with Long Time, Short Time, Instantaneous
- Terminal Connection: Line and Load Side Lug
Specifications
- Part Number: PAP36800
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PAP Series
- Type : PAP
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 90
