Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PAF361200DC1625

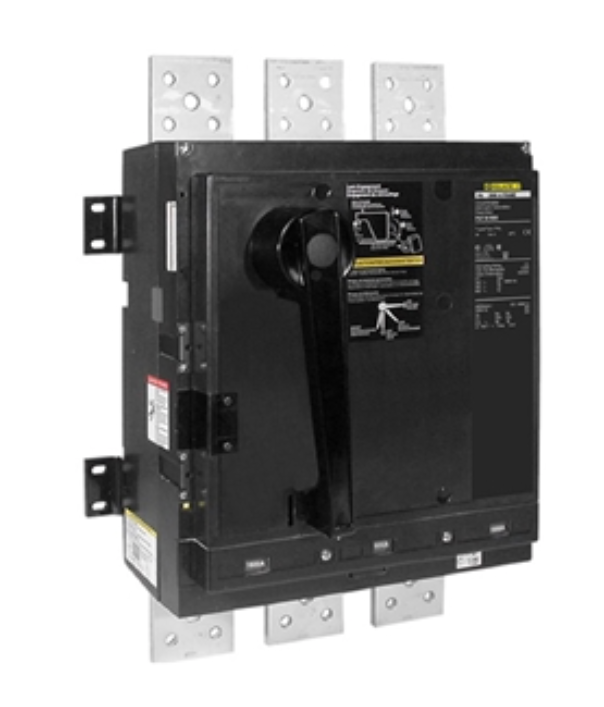

PAF361200DC1625 is a Square D PAF Series molded case circuit breaker designed for high-amperage DC applications. This 3-pole breaker features a 1200A current rating and is rated for 600V, making it suitable for demanding industrial and commercial power distribution systems. The PAF361200DC1625 is built with a robust PAF frame and utilizes a thermal magnetic trip unit for reliable protection. It is designed for bolt-on mounting and is specifically engineered for use in DC power systems, including ungrounded DC configurations. The breaker is equipped with shunt and auxiliary features for enhanced control and monitoring.
- Part Number: PAF361200DC1625
- Manufacturer: Square D
- Series/Frame: PAF
- Amperage: 1200A
- Voltage Rating: 600V
- Poles: 3
- Mounting Type: Bolt On
- Interrupt Rating: 65kA
- Trip Unit: Thermal Magnetic
- Features: Shunt Trip, Auxiliary Switch
- Application: DC Power Distribution
- UL 489 Supplement SC Rated
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: PAF361200DC1625
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PAF Series
- Type : PAF
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 25kA@500VDC
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : P Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 90
