Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Fusible
- Series
- P3F
- Frame
- P3F
- Rated current
- 400
- Voltage
- 240V
- Phases
- 3
- Interrupting rating
- 200kA@240V
- Wires
- 4
- Country of origin
- United States
- UPC
- 786683021258
- GTIN
- 00786683021258
- Dimensions
- 10.07 in x 48.85 in x 21.22 in (Length/Depth x Height x Width)
- Weight
- 77 lb
Show all specifications (1 more)
- Certification
- CSA Certified UL 857 IEEE Certified ANSI
Product description & additional details
P3F325RGN

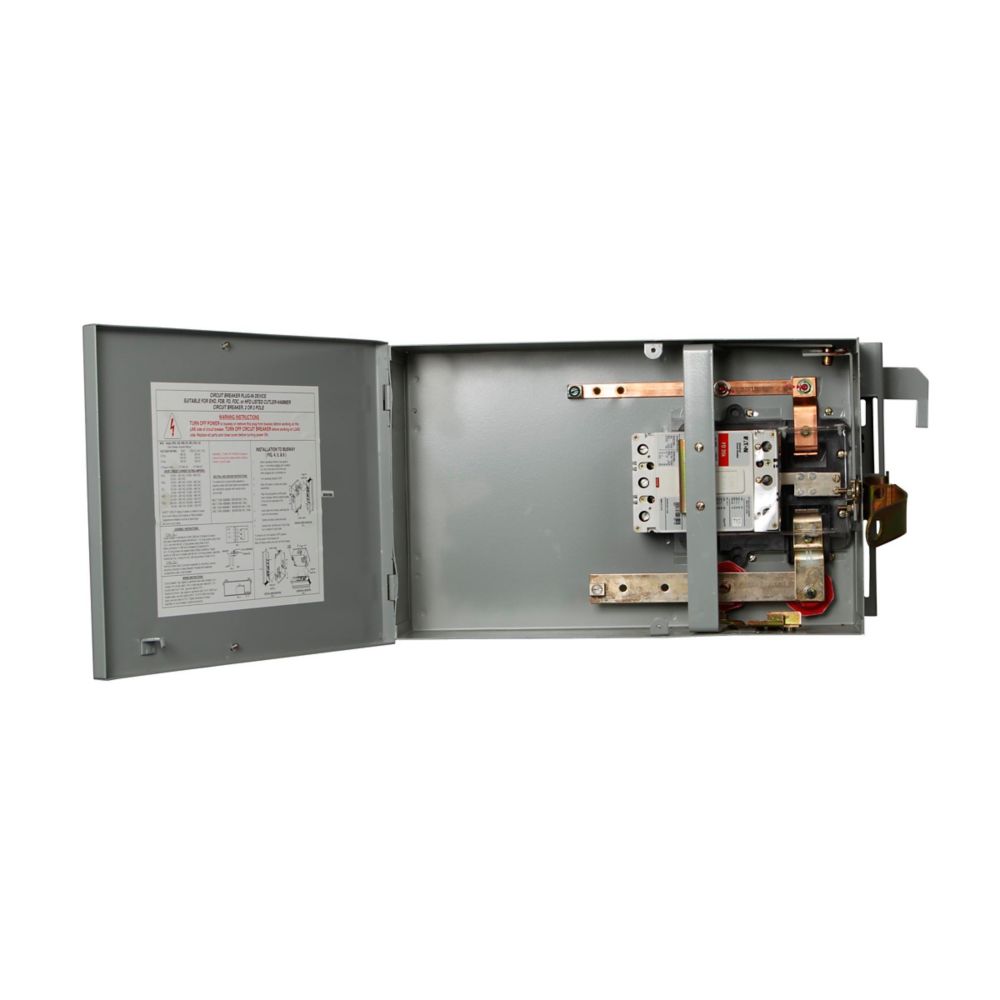

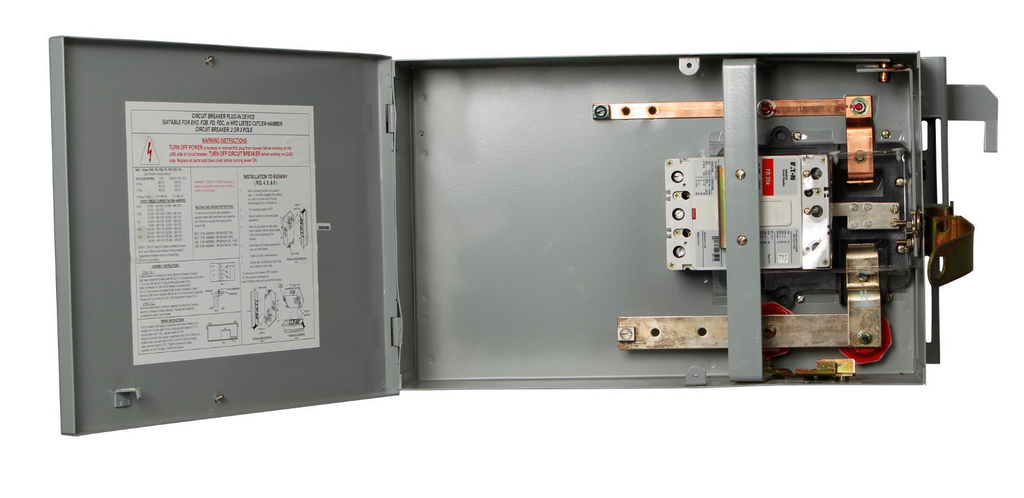

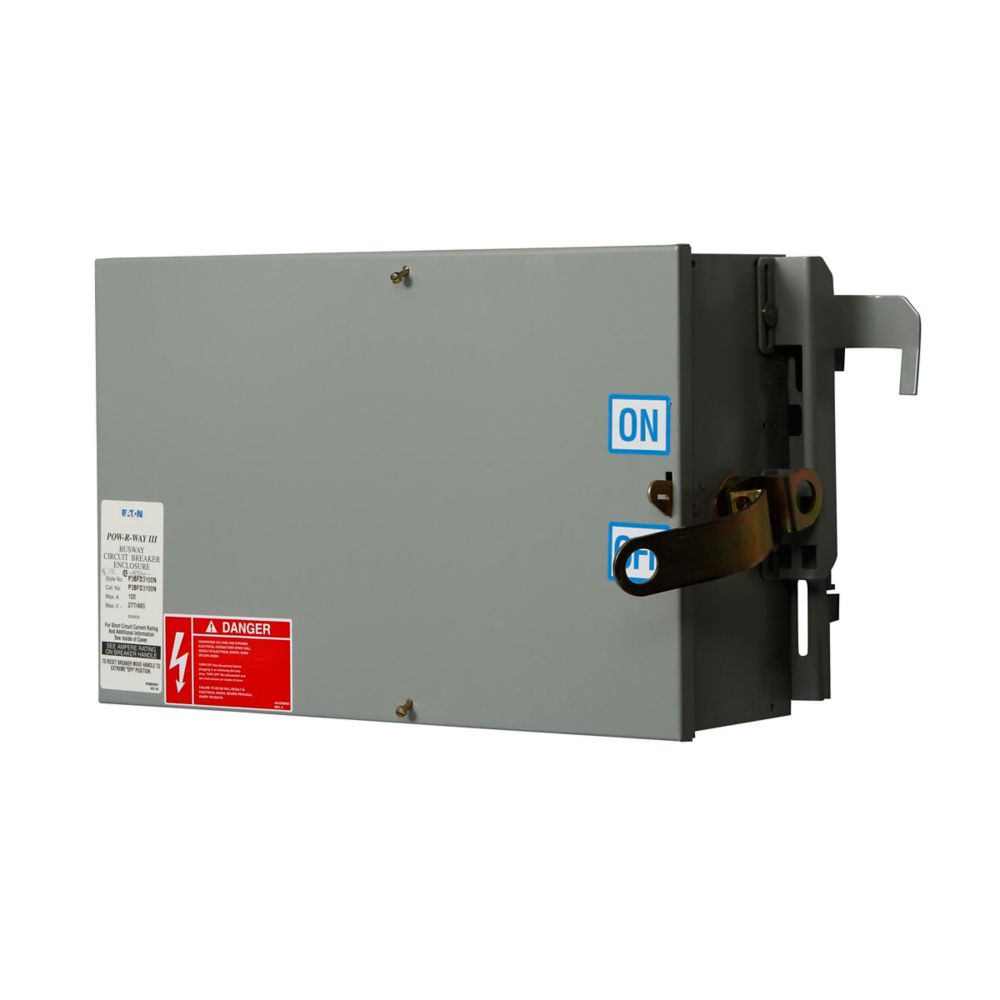

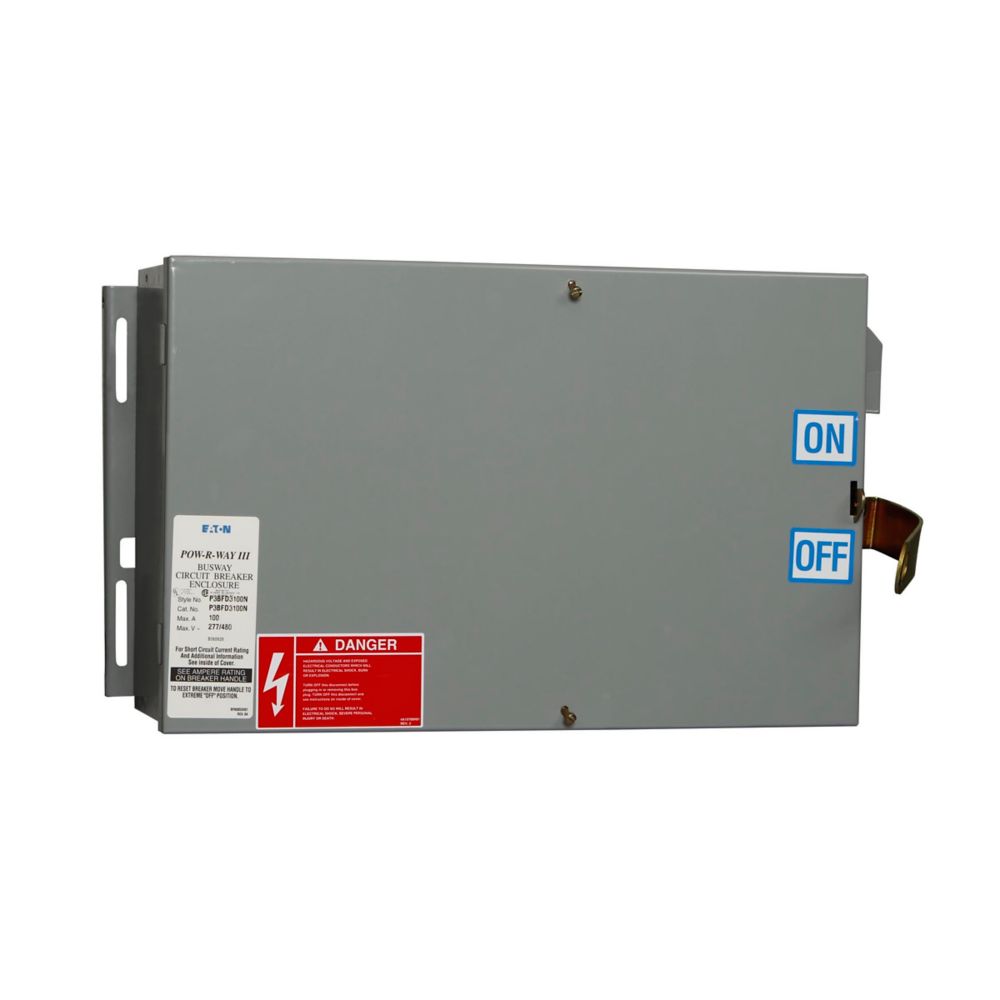

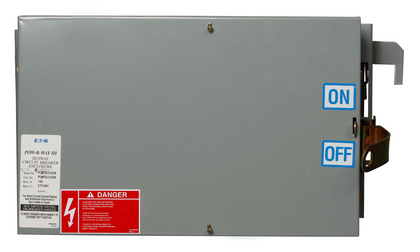

P3F325RGN is a Eaton Pow-R-Way III fusible bus plug rated for 400 amps and 120/208 volts, designed for busway applications.This three-pole fusible plug-in unit features 50% internal grounding and 100% neutral, compatible with R class fuses. It is engineered for reliable power distribution in commercial and industrial settings, meeting CSA, UL 857, IEEE, and ANSI certifications.
- Amperage Rating: 400A
- Voltage Rating: 120/208 V
- Number of Poles: 3
- Fuse Type: R class fusible
- Grounding: 50% internal ground
- Neutral: 100% neutral
- Series/Frame: Pow-R-Way III
- Mounting Type: Plug-in busway
- Certifications: CSA, UL 857, IEEE, ANSI
- Application: Busway power distribution
Specifications
- Part Number: P3F325RGN
- Manufacturer : Eaton
- Brand : Eaton
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : P3F
- Type : P3F
- Voltage : 240
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@240V
- Wire : 4
Product Data
- UPC : 786683021258
- GTIN : 00786683021258
- Country of Origin : United States
- Dimensions : 10.07 in x 48.85 in x 21.22 in (Length/Depth x Height x Width)
- Weight : 77 lb
- Certification : CSA Certified UL 857 IEEE Certified ANSI
