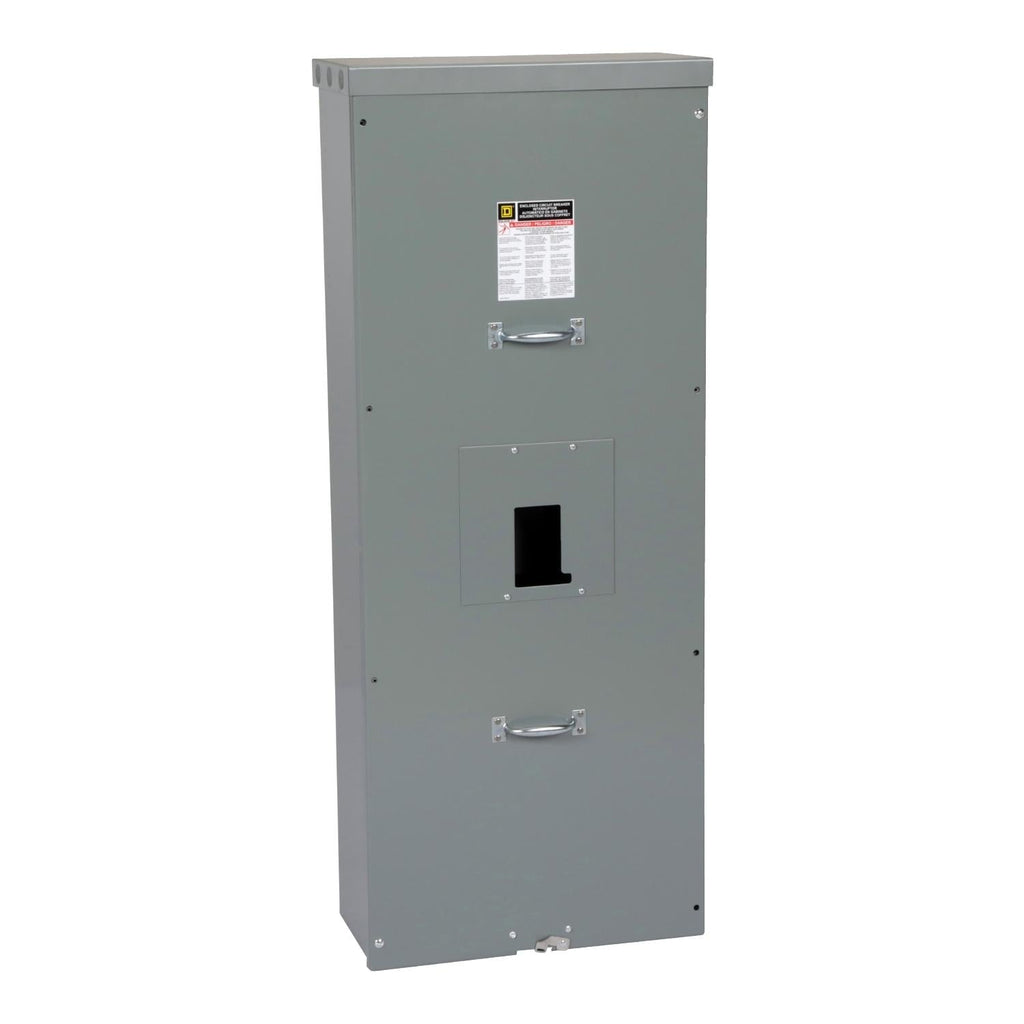

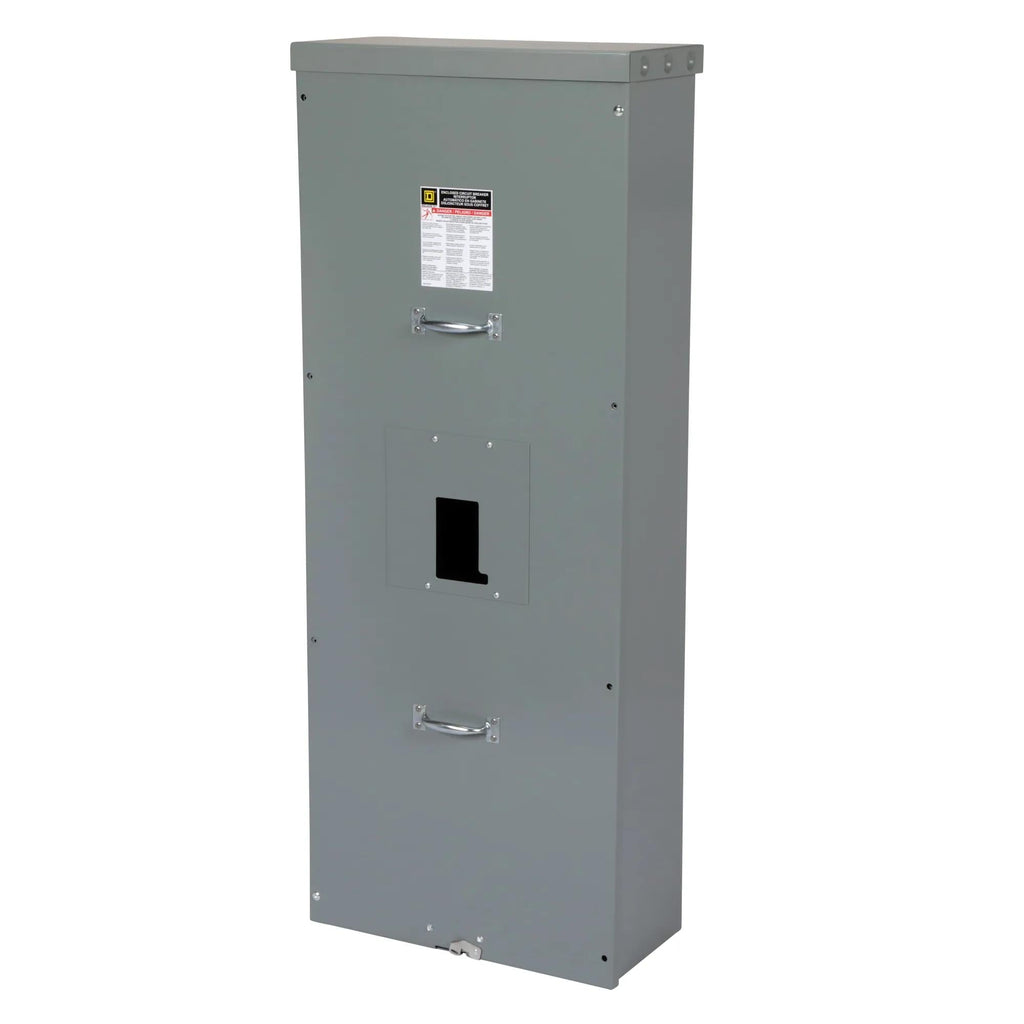

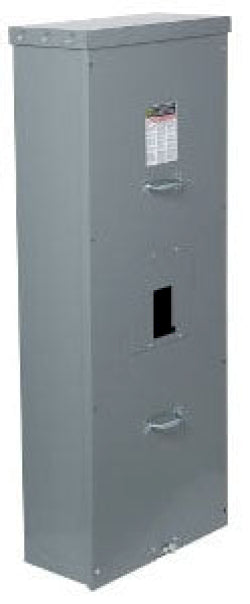

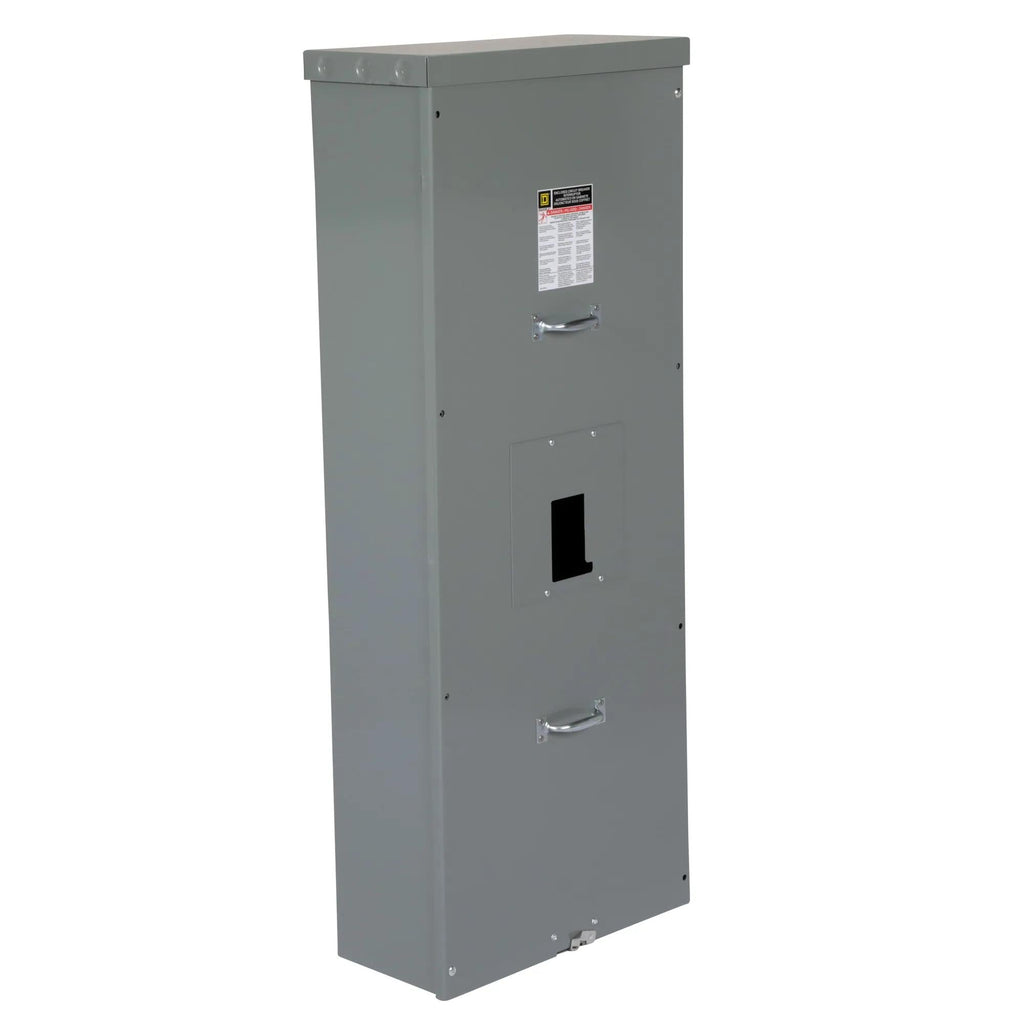

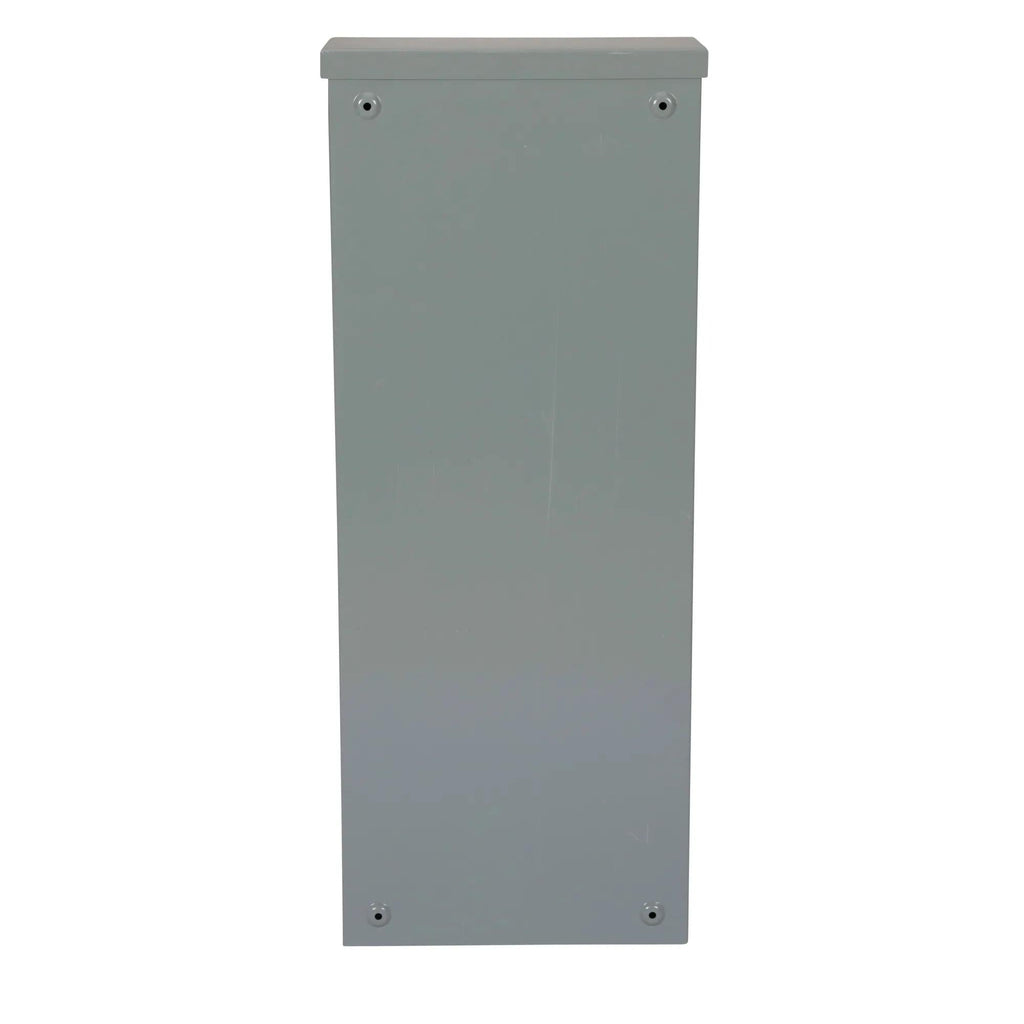

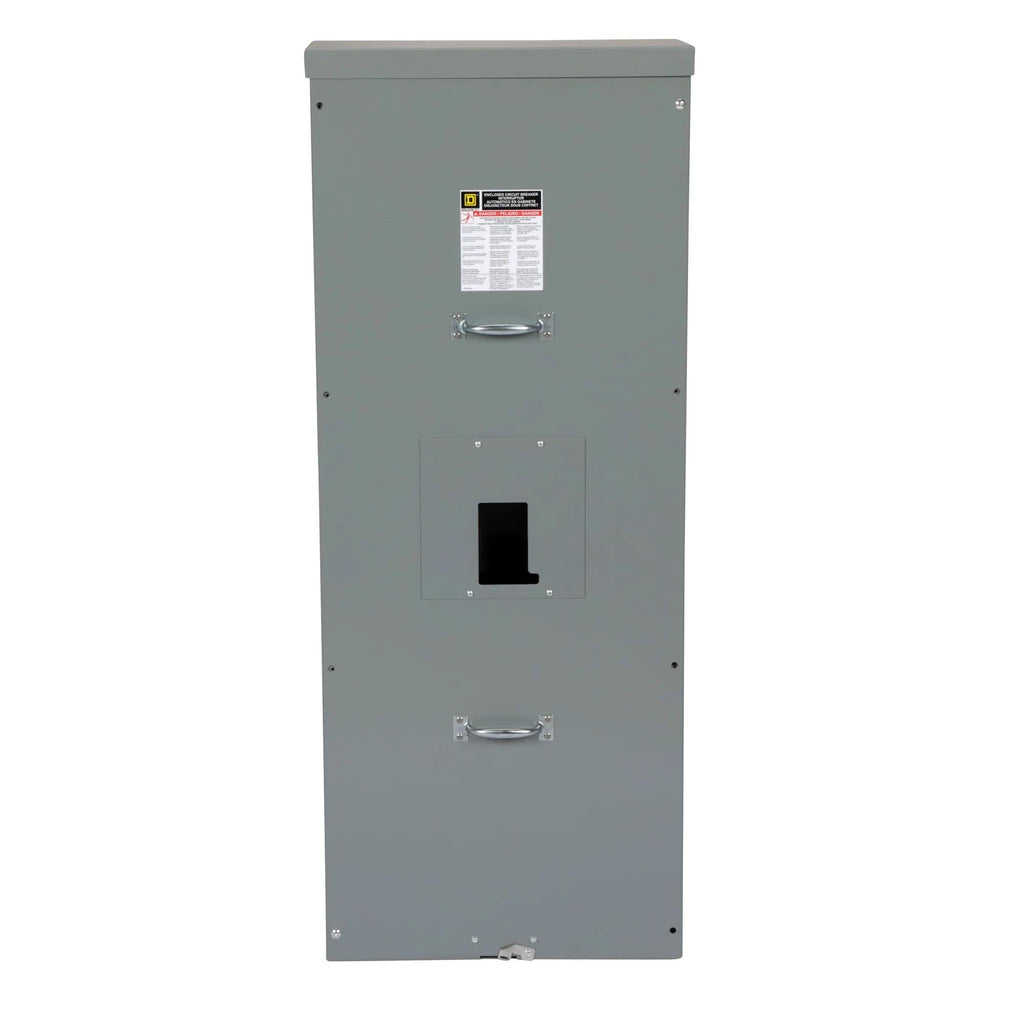

P1200S - Square D 1200 Amp 600V 2/3 Pole Powerpact Circuit Breaker Enclosure NEMA 1 Surface Mount

P1200S

P1200S is a Square D circuit breaker enclosure designed for Powerpact P and M series breakers with a current rating from 600 to 1200 amps.This enclosure features a NEMA 1 steel housing suitable for surface mounting, accommodating 2 or 3 pole breakers. It supports breakers with UL 489 listing and CSA certification, providing a short circuit current rating equal to the installed breaker. Dimensions are approximately 21 inches wide by 9-3/4 inches deep by 52-1/8 inches high.

• Manufacturer: Square D
• Part Number: P1200S
• Amperage: 600 to 1200 A
• Voltage Rating: 600 V
• Poles: 2 or 3 Pole
• Mounting Type: Surface Mount
• Enclosure Type: NEMA 1 Steel
• Compatible with Powerpact P and M series breakers
• UL 489 Listed, CSA Certified
• Dimensions: 21" W x 9-3/4" D x 52-1/8" H
• Short circuit rating matches installed breaker
• 18 month warranty

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Please note that circuit breakers are not included with the enclosures and must be purchased separately.

Specifications

• Part Number: P1200S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Enclosure
• Family : Powerpact
• Type : P
• Voltage : 600
• Amperage : 1200
• Nema Rating : 1
• Compatible Frames : PGF,PGL,PGM,PGP,PGD,PGA,PKF,PKL,PKM,PKP,PKD,PKA,PLF,PLL,PLM,PLP,PLD,PLA,PJF,PJL,PJM,PJP,PJD,PJA

Product Data

• UPC : 785901577706
• GTIN : 00785901577706
• Country of Origin : Mexico
• Dimensions : 52.13 in (1323.98 mm) x 21.0 in (533.4 mm) x 9.75 in (247.65 mm) (Height x Width x Depth)
• Weight : 119.006
• Certification : CSA - UL listed
