Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
OTS50

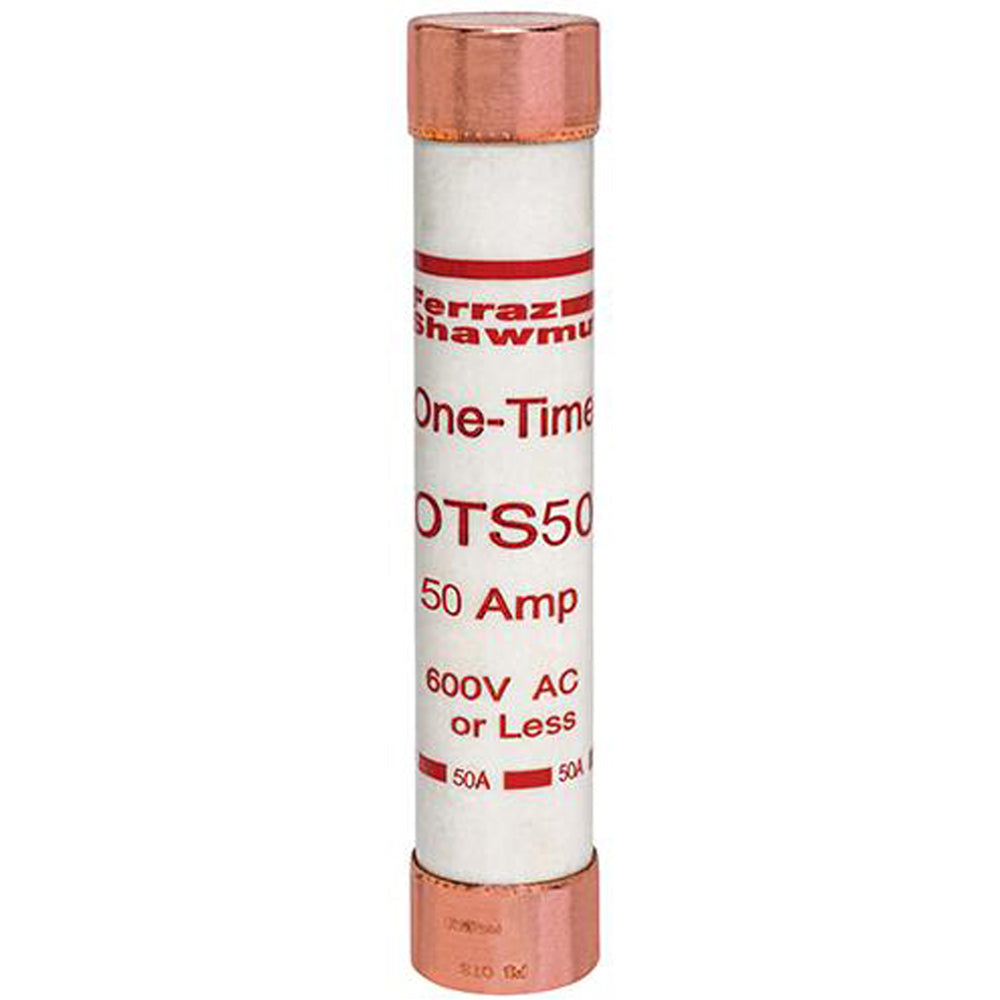

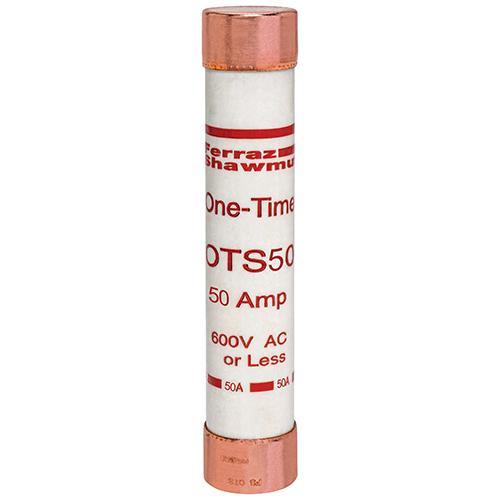

OTS50 is a Ferraz Shawmut Class K5 fast-acting fuse rated for 50 amps and 600 volts AC, 300 volts DC with clip mounting.OTS50 provides reliable one-time protection for circuits with a high interrupt rating of 50kA. It features a cylindrical poly tube body with copper ferrule terminals and is UL and CSA certified for safety and performance.
- Key Specifications
- Amperage: 50 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: K5
- Speed/Characteristic: Fast-Acting
- Interrupt Rating: 50,000 A
- Mounting Type: Clip
- Body Material: PolyTube
- Terminal Material: Copper Ferrule
- Dimensions: 1.06 in diameter x 5.5 in length
- Certifications: UL 248/248-9, CSA C22.2
- RoHS Compliant
Specifications
- Part Number: OTS50
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OTS Series
- Type : OTS
- Voltage : 600
- Amperage : 50
- AIC rating : 50kA@600V
- Diameter : 1.06
- Class Rating : K-5
- Barrels : 1
Product Data
- UPC : 782001700782
- GTIN : 00782001700782
- Country of Origin : Mexico
- Dimensions : x 5-1/2 in x
- Weight : 0.23
