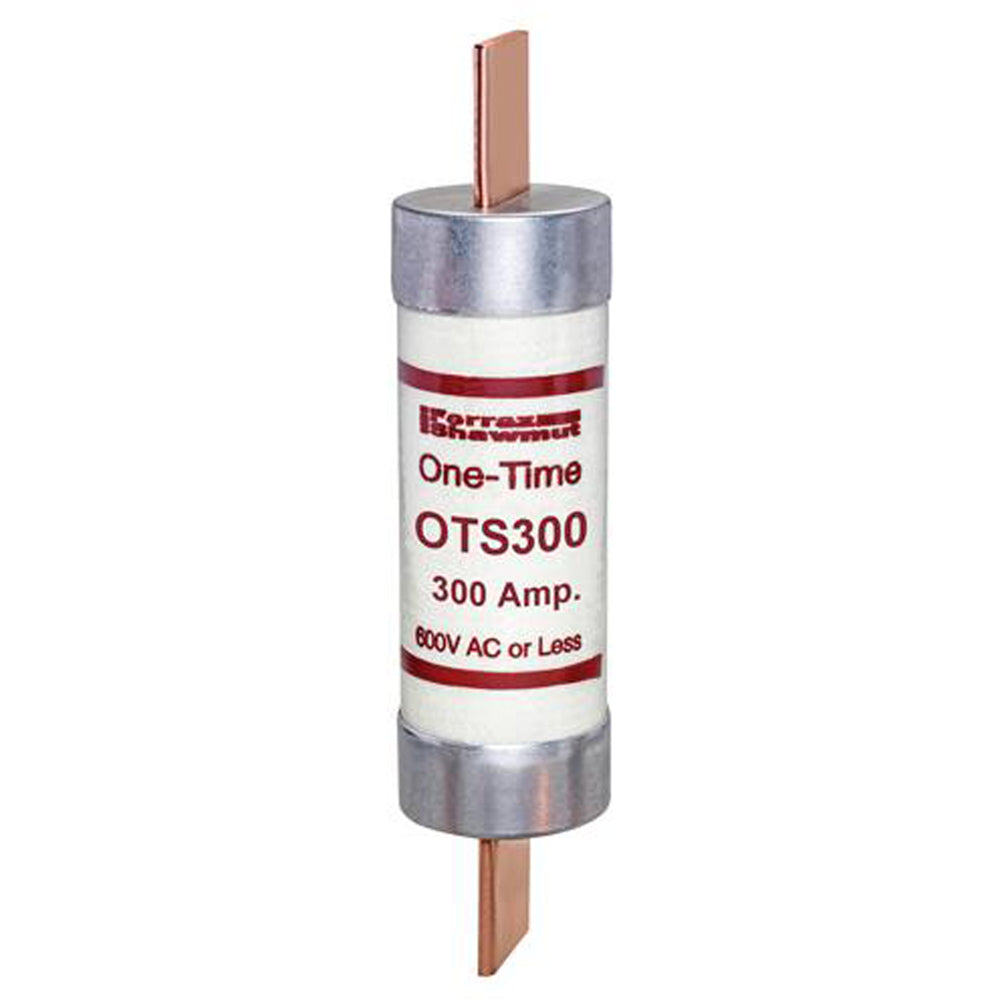

OTS300 - Ferraz Shawmut 300A 600V Class K5 Low Voltage Fuse One Time

OTS300

OTS300 is a Ferraz Shawmut 300 Amp, 600 Volt Class K5 low voltage fuse designed for one-time use in electrical protection.This fuse features a single-barrel cartridge design with a diameter of approximately 2.56 inches and a length of 11 5/8 inches. It is rated for 600 VAC and 300 VDC applications, with an interrupting rating of 50,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The OTS300 is a non-rejection type fuse suitable for circuits serving non-inductive loads in residential and small commercial installations. It meets UL 248-9 and CSA C22.2 certifications.

Key Specifications
• Amperage: 300A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 50,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Fuse Class: K5
• Type: One Time Use
• Poles: Single Barrel
• Physical Size: 2 9/16" diameter x 11 5/8" length
• Mounting Type: Cartridge Blade
• Non-Rejection Type
• Certifications: UL 248-9, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: OTS300
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : OTS Series
• Type : OTS
• Voltage : 600
• Amperage : 300
• AIC rating : 50kA@600V
• Diameter : 2.56
• Class Rating : K-5
• Barrels : 1

Product Data

• UPC : 782001701024
• GTIN : 00782001701024
• Weight : 3.54
