Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
OTS25

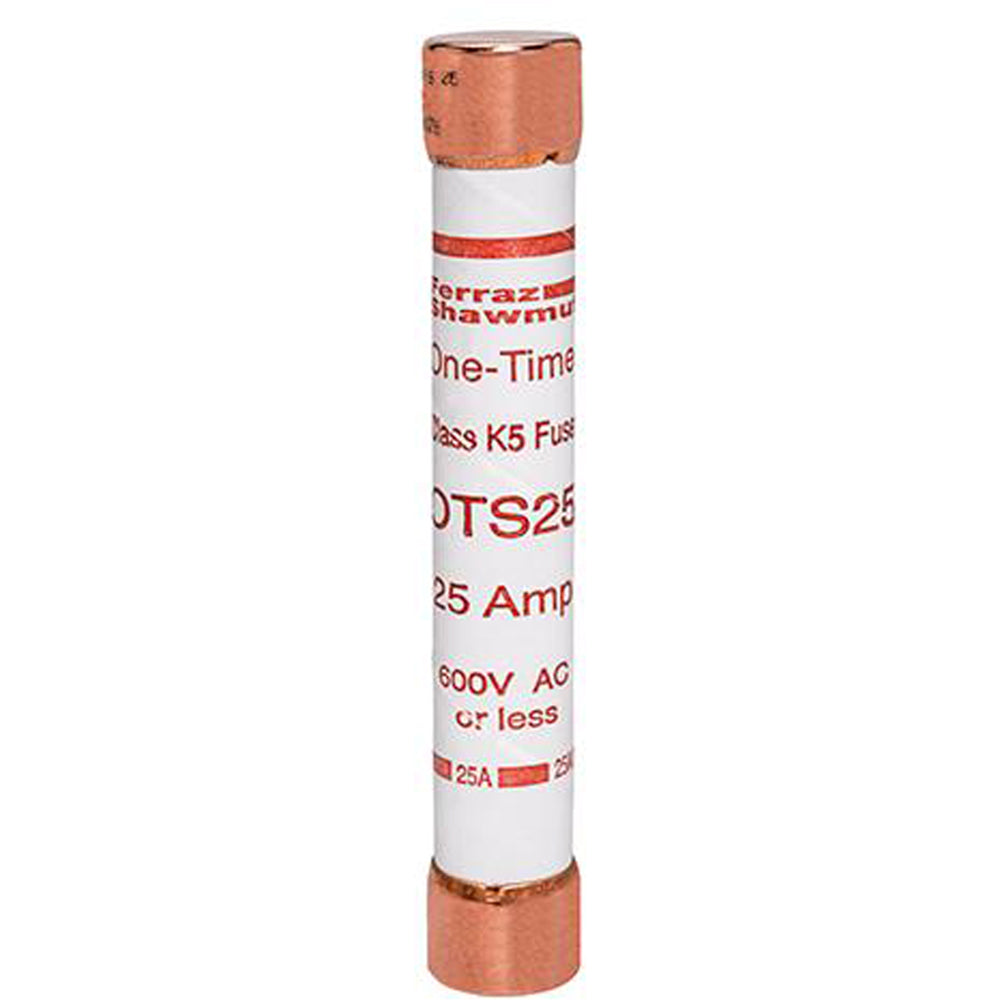

OTS25 is a Ferraz Shawmut 25 Amp, 600 Volt Class K5 low voltage fuse designed for one-time use in electrical protection.This OTS25 fuse features a 25 ampere rating with a maximum voltage of 600V AC and 300V DC, a 13/16 inch diameter, and a 5-inch length. It is a fast-acting, non-rejection type fuse suitable for protecting circuits serving non-inductive loads. The fuse has a high interrupting rating of up to 50,000 amperes and meets UL 248/248-9 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 25A
- Voltage Rating: 600V AC, 300V DC
- Fuse Type: Class K5, One Time
- Poles: 1 Barrel
- Diameter: 0.81 inch (13/16 inch)
- Length: 5 inches
- Interrupting Rating: 50,000 AIC
- Mounting Type: Ferrule
- Non-Rejection Type
- Certifications: UL 248/248-9, CSA C22.2
- Part Number: OTS25
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OTS Series
- Type : OTS
- Voltage : 600
- Amperage : 25
- AIC rating : 50kA@600V
- Diameter : 0.81
- Class Rating : K-5
- Barrels : 1
- UPC : 782001700737
- GTIN : 00782001700737
- Country of Origin : Mexico
- Dimensions : x 5 in x
- Weight : 0.11
