Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
OTS125

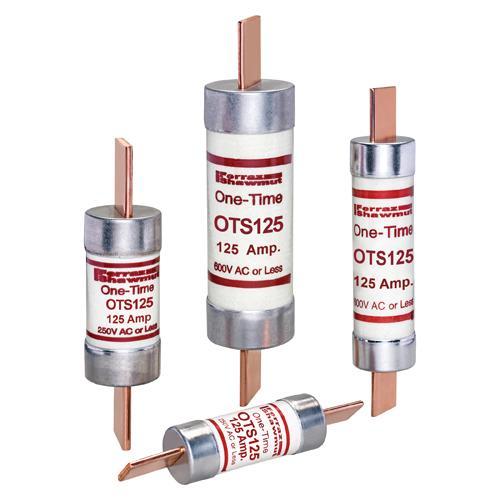

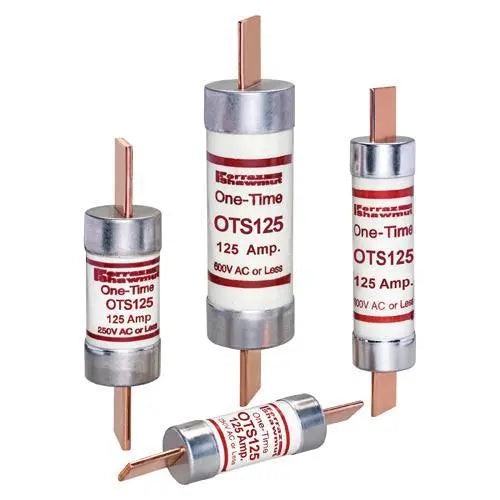

OTS125 is a Ferraz Shawmut 125 Amp, 600 Volt Class K5 fast-acting low voltage fuse designed for one-time use in residential and small commercial installations.OTS125 features a cylindrical body with a diameter of 1.81 inches and an overall length of 9-5/8 inches. It has a high interrupting rating of 50,000 AIC at 600VAC and 20,000 AIC at 300VDC, suitable for protecting circuits serving non-inductive loads. This fuse is UL and CSA certified and is a non-rejection type for easy installation.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: K5
- Fuse Timing: Fast-Acting
- Interrupting Rating: 50,000 AIC @ 600VAC, 20,000 AIC @ 300VDC
- Poles: 1
- Mounting Type: Cylindrical barrel fuse
- Overall Length: 9-5/8 inches (244 mm)
- Diameter: 1.81 inches
- One-time use fuse
- Certifications: UL 248-9, CSA C22.2
Specifications
- Part Number: OTS125
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : OTS Series
- Type : OTS
- Voltage : 600
- Amperage : 125
- AIC rating : 50kA@600V
- Diameter : 1.81
- Class Rating : K-5
- Barrels : 1
Product Data
- UPC : 782001700911
- GTIN : 00782001700911
- Country of Origin : Mexico
- Dimensions : x 9.63 in x
- Weight : 1.54
